China Butterfly Valves Group Co., Ltd.
China Manufacturer with main products: Valves, Gate Valve, Butterfly Valve, Check Valve, Globe Valve, Ball Valve, Y Strainer, Rubber Joint |

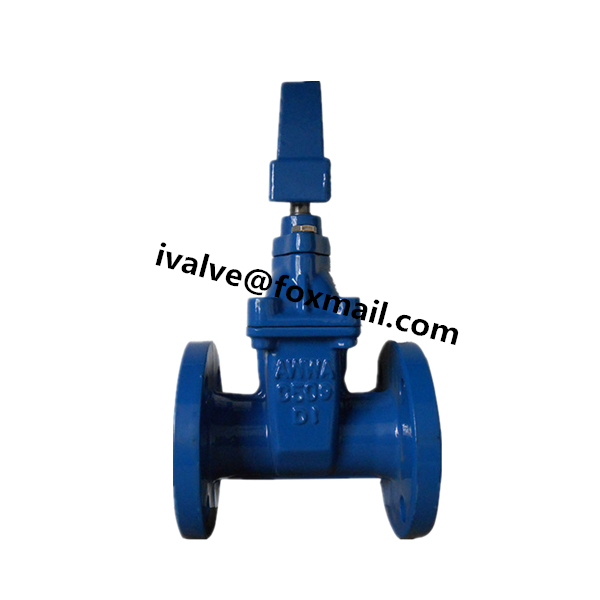

Cast Iron AWWA C509 C515 Gate Valve
| FOB Price: | 5.00 - 10.00 USD/Piece |
|---|---|
| Supply Ability: | 200 Ton(s) per Month |
| Shipping: | 30 Days after Order |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | Plywood Case |
Quick Details
- Brand Name: Gate Valves
- Temperature of Media: Normal Temperature
- Material: Casting
- Pressure: Low Pressure
- Standard or Nonstandard: Standard
- Media: Water
- Power: Manual
- Structure: Gate
Specifications
Cast Iron AWWA C509 C515 Gate Valve
Our Feature:
Total Industrial Flow Control Solutions
in Valves,Steel Pipes,Flanges,Pipe Fittings,and More...
Contact Us: ivalve(at)foxmail(dot)com
Gate Valve:Resilient Seated,Metal Seated (DIN F4/F5,BS5163,AWWA C509/C515)
Butterfly Valve:Wafer Type,Lugged Type,Flanged Type,Double Eccentric,Triple Eccentric
Kinfe Gate Valve:Manual Operated,Electric Actuated,Air Actuated
Check Valve:Wafer Type,Lift Type,Swing Type,Vertical Type,Ball Type
Ball Valve:Floating, Trunnion Mounted, Three(Four) Way,Full Welded,Small Sizes 1PC/2PC/3PC
Globe Valve:Straight Type,Angle Type (ANSI,DIN,GOST,JIS/KS)
Foot Valve:Flange End from 2" (DN50) to 12"(DN350)
Air Release Valve:Single Orifice Automatic,Double Orifice Automatic or Triple Functional
Y Strainer:Screw Threaded 0.5"(DN15)-2"(DN50),Flanged for Full Sizes
Rubber Joint:Single Sphere,Twin Sphere,and Rubber Bellows
Gate Valve Specifications
| Suitable media | Water |
| Nominal Diameter | DN40~DN600 (1 1/2"~24"). |
| Tightness check | AWWA C509/API 598/ISO 5208/EN12226-1. |
| Working Pressure | PN10/PN16/PN25 or 10Bar/16Bar/25Bar. |
| Class125, class150, 250 psi (2"~12"), 200 psi (14"~24"), 150 psi. | |
| Operator | Cap top, hand wheel, Gear box, electric actuator, etc. |
| Working Temp. | -20 to 120 centigrade. (EPDM: -20 to 120, NBR: -10 to 80). |
| Flange | DIN2501/EN1092-2 PN10/16/25. |
| ANSI/ASME B16.1/ ANSI B16.5 Class 125, ANSI/AWWA C110/21.10. | |
| BS4504 PN10/16/25. | |
| Face-to-Face | DIN3352/DIN3202 F4/F5(ISO5752 Series14/15)/EN558-1 Series14/15 |
| ANSI/ASME B16.10 | |
| BS5163 Type B / BS5150 |
Gate Valve Main Parts Materials
| Seat | EPDM/NBR/Brass |
| Gland Follower | Brass/ductile iron. |
| Bolt and nut | Stainless steel, steel with zinc. |
| Stem | Stainless steel, brass, bronze, steel with zinc. |
| Hand-wheel | Ductile iron/ malleable Iron/carbon steel. |
| Body/Bonnet/Disc | Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450. |
