Ethernet over Coax Eoc Slave WiFi Optional for CATV

FOB Price:	20.00 - 30.00 USD/Piece
Payment Terms:	L/C, D/A, D/P, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	One set / Plastic bag, in a small caron box, box packed in caron .

Quick Details

Application: CATV, HFC, EPON ,GPON
Jacket: NONE
Insulation Material: NONE
Conductor Material: NONE
Brand Name: SUMLO OR OEM
Frequency Range: 2.4~2.4835GHz
Working Frequency: 7.5-65MHz
Specification: 180(mm)x110(mm)x31(mm)

Specifications

*** when you design your Epon + EOC Solutiion, freely contact us the Aera range, users quantities, technical requirements, we custom the most specialized matching products for you.

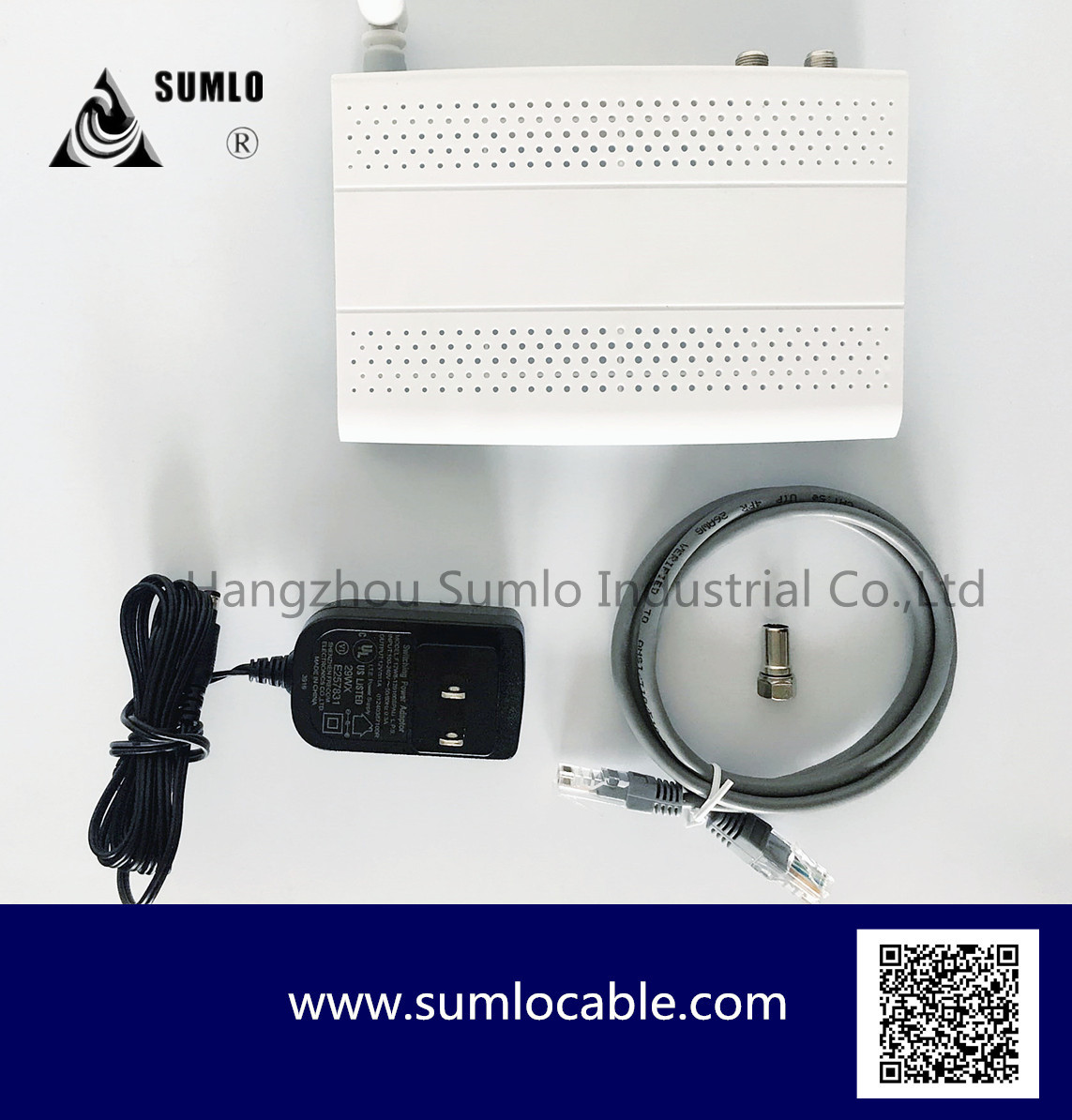

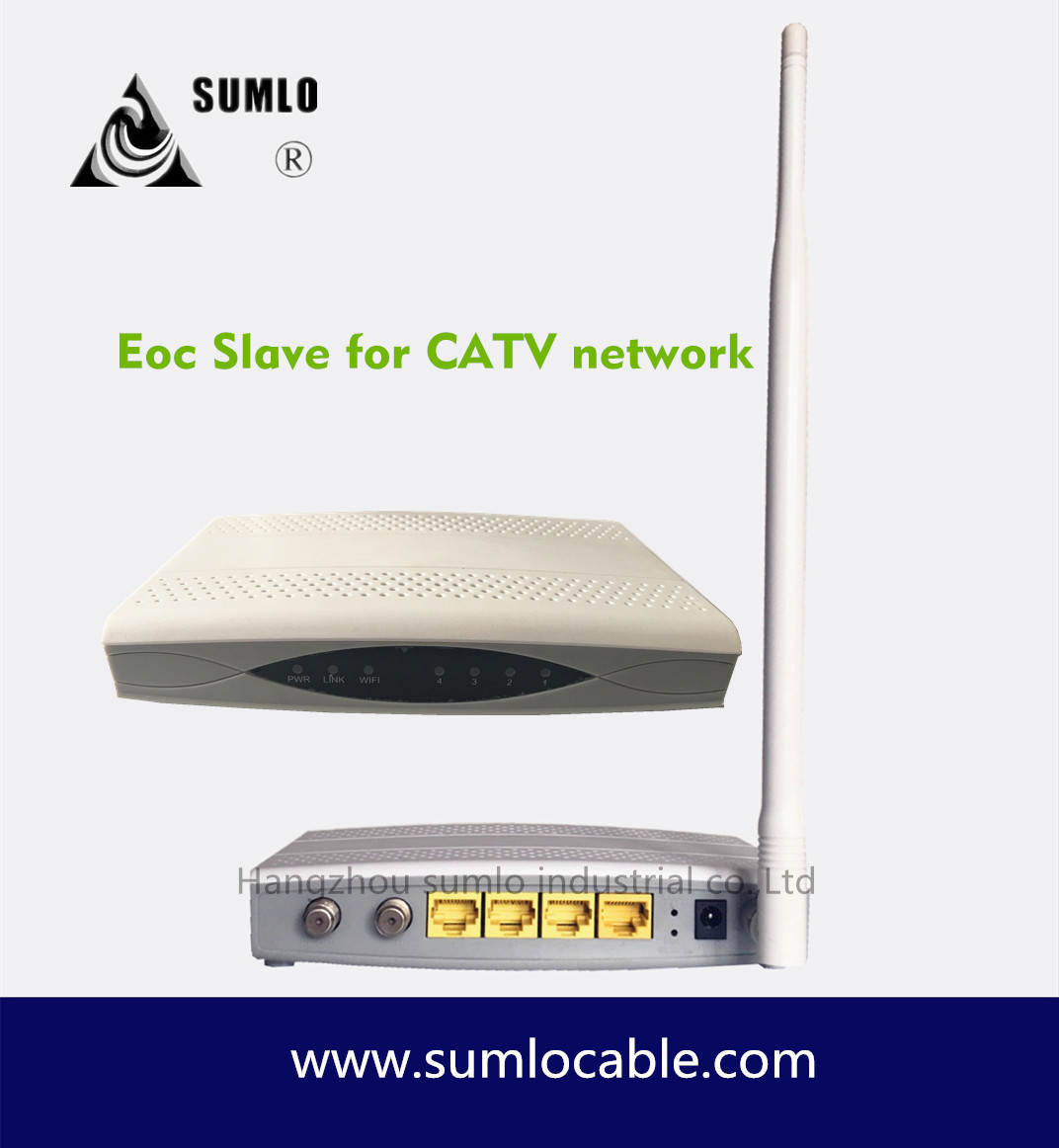

Ethernet over Coax EOC Slave WiFi optional for CATV

1. Meet IEEE HomePlug AV, 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.3, IEEE802.3u;

2. EOC coaxial cable WAN access, provide four interfaces: TV, PHONE, WiFi wireless and wired; support CSMA/CA, CSMA/CD, TCP/IP,

PPPoE, DHCP, ICMP and NAT protocols;

3. Provide 1 WAN port and 4 LAN ports (10/100M adaptive), support port auto MDI/MDIX;

4. Provide two working modes: Bridge Mode and Routing Mode;

5. Support Quality of Service (QoS)‐802.11e;

6. Support remote and Web management, full Chinese configuration interface;

7. Support multi-SSID function;

8. Support NAT/NAPT IP share, WAN supported protocols: PPPoE/Static IP/PPTP/DHCP;

9. Provide stable transmission up to 150Mbps;

10. Support virtual server and DMZ host;

11. Support 128 bit WEP and the newest wireless security standards such as WPA-PSK and WPA2-PSK;
