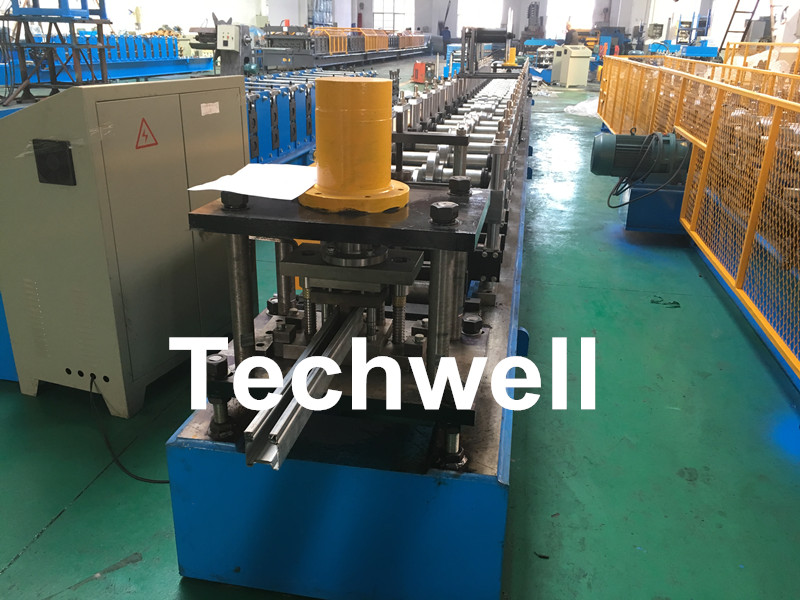

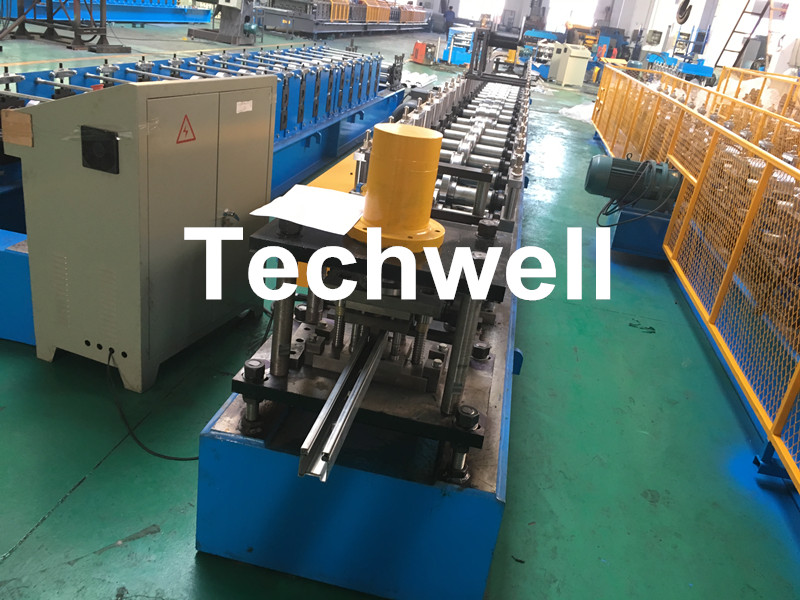

0-15m/Min Forming Speed, Chain Drive Transmission Guide Rail Roll Forming Machine with Hydraulic Punching Device

FOB Price:	10,000.00 - 20,000.00 USD/Set
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New
Brand Name: TECHWELL
Weight: 8t
color: Blue
Raw Material: Galvanized Steel, Carbon Steel
Roller Material: GCr15 Steel, Surface Coated With 0.05mm Hard Chrome
Forming Stations: About 16 Stations (Depend On Final Profile)
Working Speed: 0-15m/min

Specifications

0-15m/min Forming Speed, Chain Drive Transmission Guide Rail Roll Forming Machine with Hydraulic Punching Device

Main Specifications

1). 3 Ton Manual Decoiler

1. Decoiler Type: Manual type decoiler

2. Weight capacity of decoiler: 3Ton

3. Manual expanding

4. Passive uncoiling

5. I.D: 508mm, 610mm

2). Feeding & Leveling Device

0-15m/min Forming Speed, Chain Drive Transmission Guide Rail Roll Forming Machine with Hydraulic Punching Device

1. Function: It is used to release the head of coil and feed into the forming machine, making the coil straight and flat after decoiling.

3). Guide Rail Roll Forming Machine

1. It consists of machine frame, transmission parts and forming rollers etc.

2. Material Thickness: 1.0-3.0mm

3. Forming Material Type: Galvanized steel, PPGI

4. Machine Frame Stand: Welded structural steel with shot blasting treatment

5. Shaft Diameter: 75mm

6. Material of Shaft: High grade 45# steel with heat treatment

7. Roller Material: High grade GCr15, model steel, all treated by CNC precise machines, HRC50-54

8. Forming Stations: about 17 stations (depend on final design)

9. Forming Speed: 0-15m/min

10. Forming Motor: 11KW

11. Forming Structure: Guiding column

12. Transmission: chain drive

13. Manually adjust the spaces and rollers can produce sheet of different thickness in a range.

4). Punching Device

1. Punching Type: Hydraulic punching

2. Punching Mold Size: According to drawing

3. Hydraulic Power: 5.5KW

5). Cutting Device

1. Cutting Type: Hydraulic cutting

2. Cutting Die Material: Cr12Mov

3. Cutting Tolerance: +/-1.5mm

Reference Profile Drawing
