Lintratek Technology Co., Ltd.
China Manufacturer with main products: Mobile Signal Repeater, Cable, Antenna, Microstrip |
Home
>Products Catalog > 2100mhz repeater > Home Signal Booster, 2100 Mobile Signal Repeater, 3G Wadma Cell Phone Receiver/Amplifier/Repeater

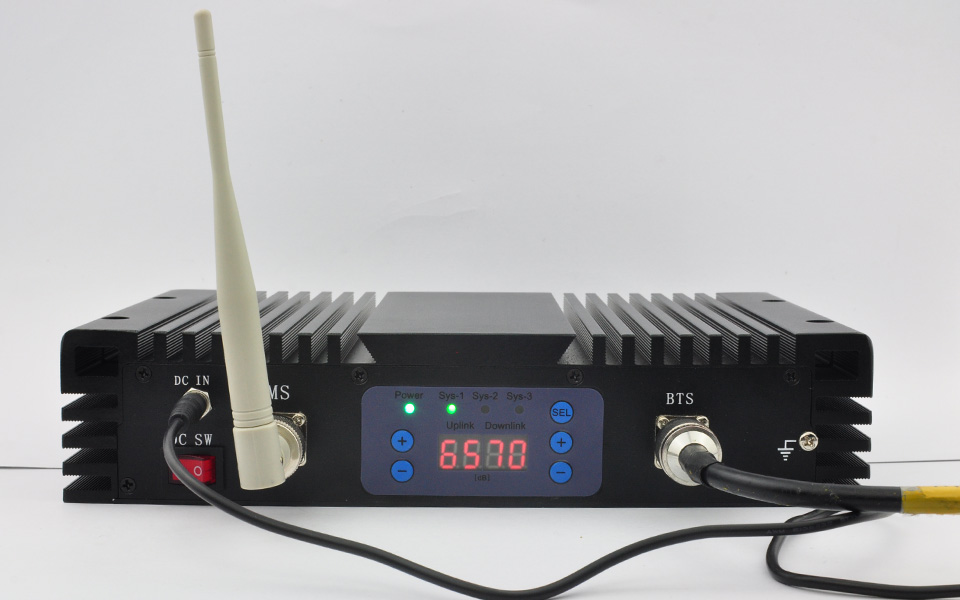

Home Signal Booster, 2100 Mobile Signal Repeater, 3G Wadma Cell Phone Receiver/Amplifier/Repeater
| FOB Price: | 350.00 - 416.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece(s) per Month |
| Shipping: | 1 day after comfirming the order |
| Payment Terms: | L/C, T/T, Western Union, Other, Paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | neutral pachking |
Quick Details
- Brand Name: lintratek
- Output Power: 33dbm
- Weight: 3.5kg
- Gain: 85
- Power supply: AC:90~265V, 50/ 60Hz;DC:9V 5A
- Model Number: KW33F-WCDMA
- cetificate: CE, ROHS
- cocerage: >2000sqm
Specifications
the following example is for you reference.
Technical details:
| Model No | KW33F-WCDMA | ||
| Parameter Data | Uplink | Downlink | |
| Frequency Range | WCDMA | 1920~1980 MHz | 2110~2170 MHz |
| Output Power | 30 ±2dBm | 33 ±2dBm | |
| Gain | 80±2 dB | 85±2dB | |
| Bandwidth | Wide Band | ||
| Automatic Gain Control | ＞20dB | ||
| Manual Gain Control | 31dB in step of 1dB | ||
| Ripple in Band | ≤4dB | ||
| Intermodulation Products | 9KHz~1GHz | ≤-36 dBm | |
| 1GHz~12.75GHz | ≤-30 dBm | ||
| Spurious Emission | 9KHz~1GHz | ≤-36 dBm | |
| 1GHz~12.75GHz | ≤-30 dBm | ||
| Noise Figure @ max. Gain | ≤6 dB | ||
| VSWR | ≤2 | ||
| MTBF | ＞50000 hours | ||
| Power Supply | AC:90~265V, 50/ 60Hz;DC:9V 5A | ||
| Power Comsumption | < 20W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||

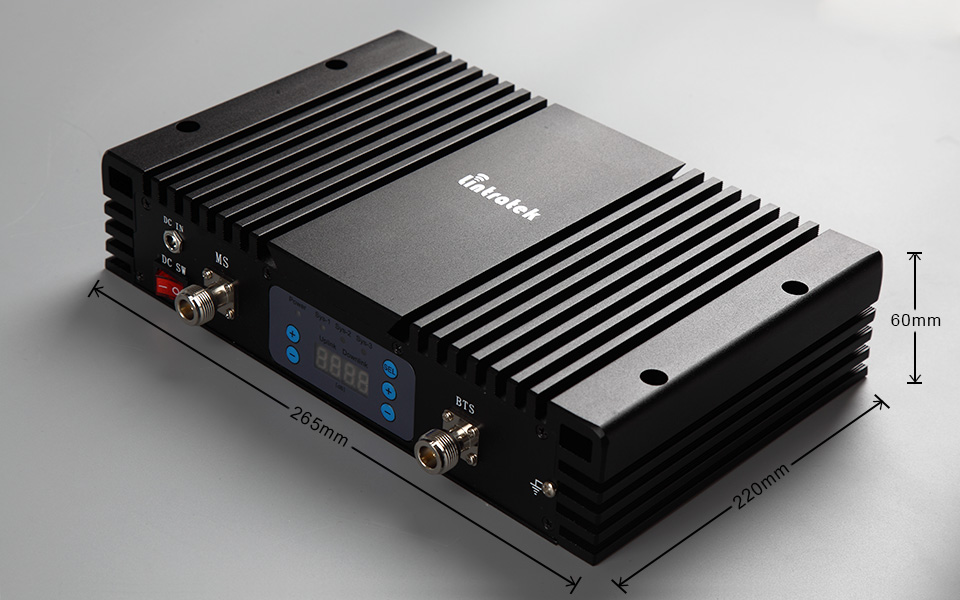

| Dimensions (D x W xH ) | 270*170*60(mm) | ||
| Weight | ≤3.5Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃~ 55℃ | ||
Operation method of useage:
Package:
