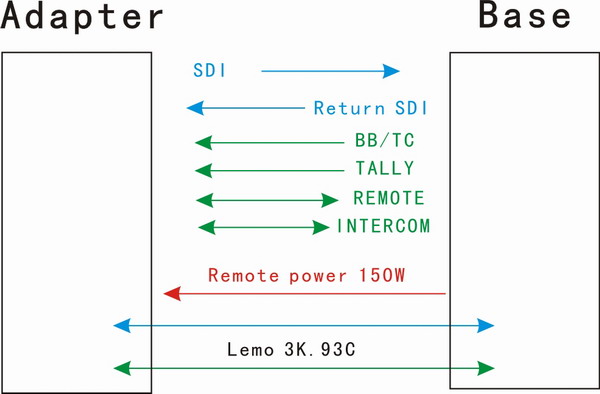

EFP To Fiber with LEMO power supply includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), Sony or Panasonic Remote control data, TC/BB/Genlock, intercom(Camera end can be connected professional 4-pin or 5-pin XLR headset, OB end can be connected Clearcom or RTS , etc intercom main station), tally(One color or two colors can be selected). Remote camera power supply (14VDC up to 150 Watts).The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a SMPTE hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.
Features
-
Handle all Pathological patterns
-
Automatic cable equalization to ensure signal integrity
-
3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
-
300+m on SMPTE hybrid cable
-
RS422 remote control
-
Tally LED+/- output or dry Contact Closure optional
-
V-mount or A-mount battery plate optional
-
Remote camera power supply (14VDC up to 150 Watts), with insertion detection protection
-
Priority selection of hybrid cable power supply, with battery charge protection
-
Lemo SMPTE 304 or Neutrik OpticalCON DUO hybrid connector
Specifications:
General index
|
Work Temp
|
-25C to 55C
|
|
Storage Temp
|
-40C to 85C
|
|
humidity
|
0 ~ 95% (non-condensing)
|
|
Camera Optic Adaptor
|
|
Input power
|
DC 11~19V
|
|
Power consumption
|
<10W
|
|
Net weight
|
1kg
|
|
Appearance size
|
188mm*116mm*45mm (without V-mount / A-mount)
|
|
Optic Base Station
|
|
Input power
|
AC90~240V
|
|
Power consumption
|
<10W
|
|
Net weight
|
3kg
|
|
Appearance size
|
19" 1U standard rack mount
|
Optical:
|
Wavelength
|
1310nm / 1550nm / CWDM
|
|
Output Power
|
-6~-1dBm
|
|
Rx sensitivity
|
<-18dBm
|
|
Transmission Distance
|
SMPTE hybrid cable 300+m
|
|
Optical connector
|
Lemo SMPTE 304 / Neutrik OpticalCON DUO
|
SDI input/output:
|
Signal format
|
SMPTE 424M, SMPTE 292M, SMPTE 259M
|
|
Data rate
|
270Mbit/s - 1.48Gbit/s - 3Gbit/s
|
|
Cable Equalization
|
Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
|
|
SDI interface
|
BNC 75 Ohm
|
Intercom:
|
Camera Optic Adaptor
|
|
Interface
|
4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack
|
|
Microphone
|
Mic inputs with mute and pre-amps
|
|
Headphone
|
with volume up or down
|
|
Optic Base Station
|
|
Interface
|
3pin XLR Female/Male: Party line audio for Clearcom and RTS Intercom main station
DB9(Male): Line level audio input and output,
|
Tally:
|
Camera Optic Adaptor
|
|
Interface
|
4pin air head or 3pin mini XLR
|
|
Output
|
Dry Contact Closure or wet LED+/-
|
|
On: short or LED on
Off: open or LED off
|
|
Optic Base Station
|
|
Interface
|
DB9(Male)
|
|
Input
|
Dry Contact Closure or TTL
|
|
On: short to GND or TTL low Off: open or TTL high
|
Remote:
|
Camera Optic Adaptor
|
|
Interface
|
8pin sony's or 10pin Panasonic's remote interface
|
|
Data
|
RS422 /RS232/RS485
|
|
Optic Base Station
|
|
Interface
|
DB9(Female) / 8pin sony's 10pin Panasonic's remote interface
|
|
Data
|
RS422 /RS232/RS485
|
Panel diagram:
|
