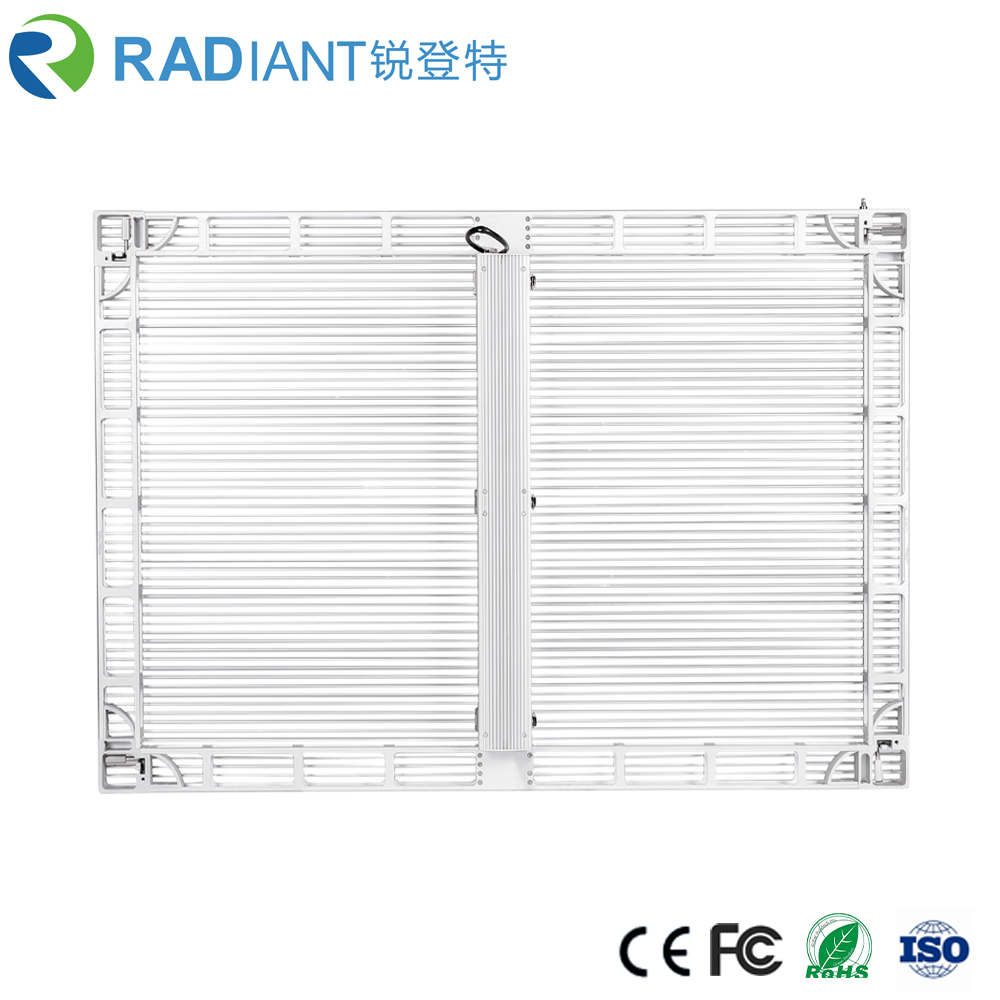

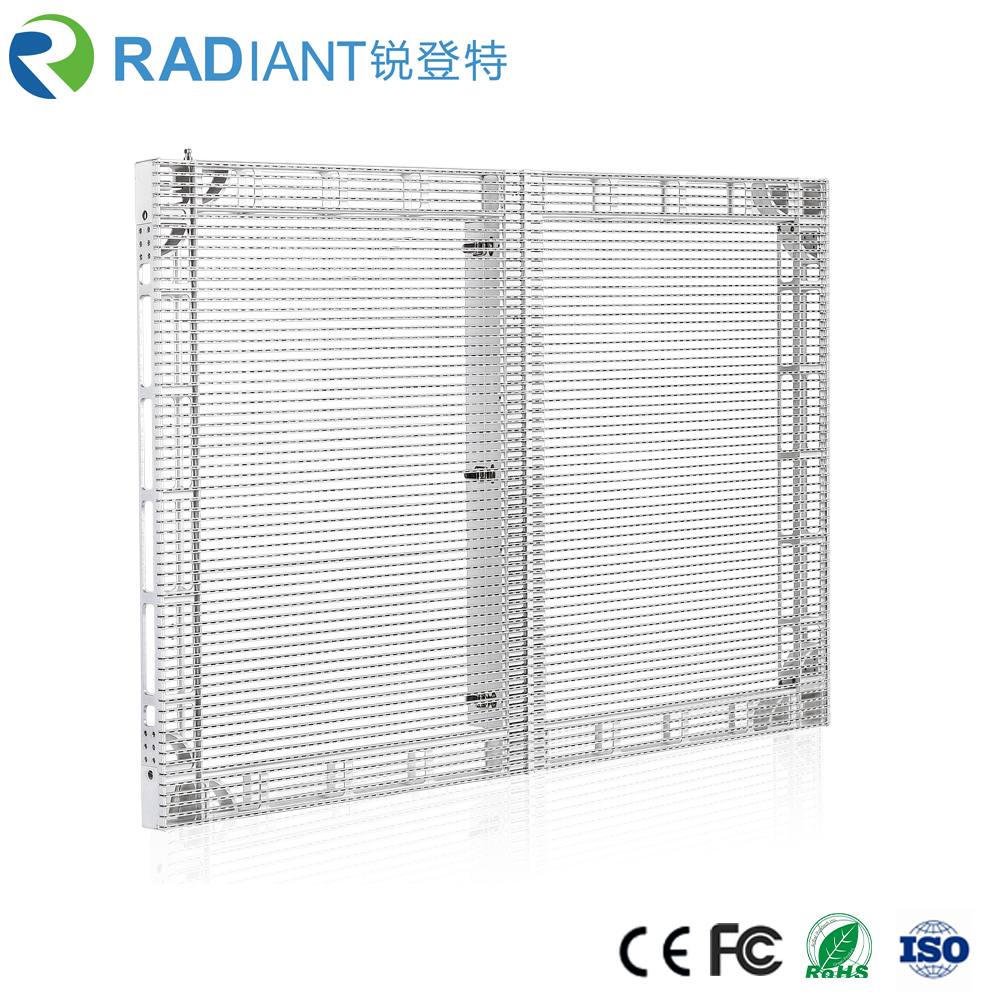

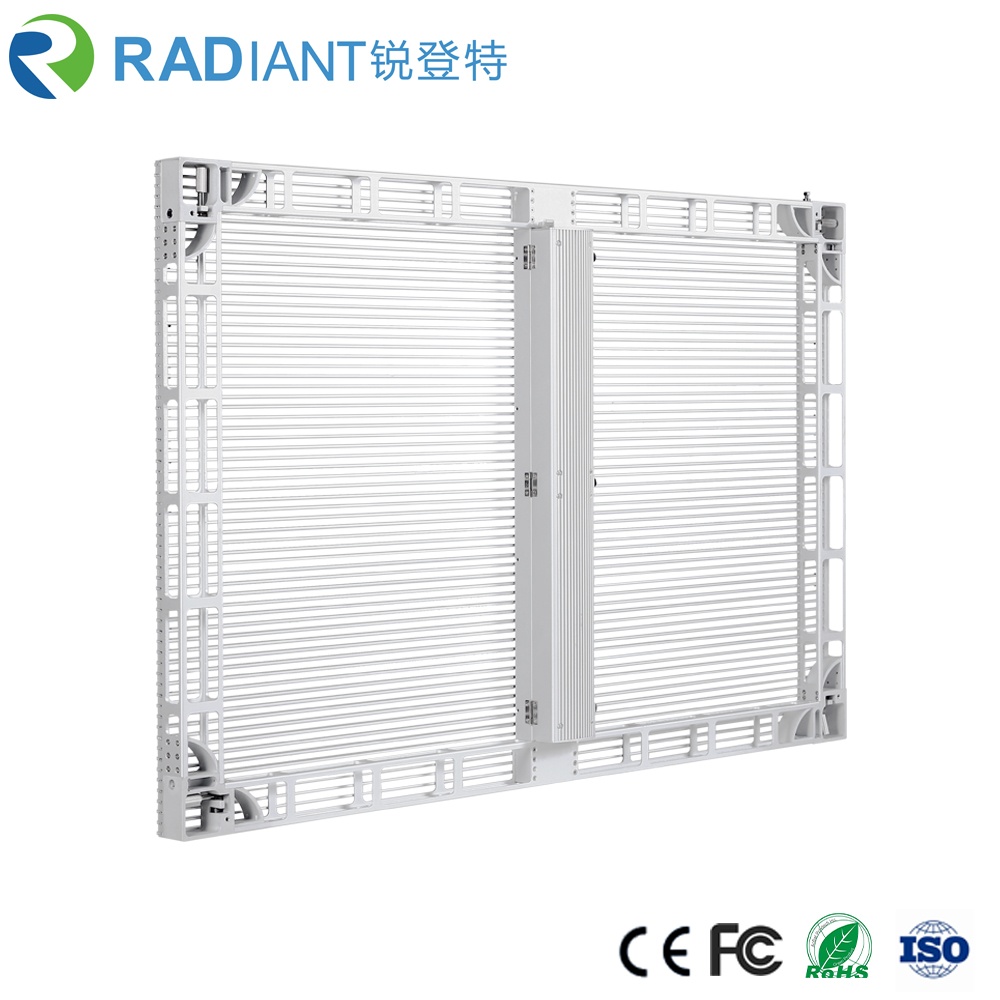

P10 High Transparency Curved Indoor Transparent LED Screen on Building
| FOB Price: | 2,800.00 - 3,005.00 USD/Piece |
|---|---|
| Supply Ability: | 6,500 Piece(s) per Month |
| Shipping: | By sea, by air, by couries |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | P10 high transparency curved indoor transparent led screen on building Wooden Case Or Flight Case |
Quick Details
- Pixels: 10mm
- Display Function: Video
- Tube Chip Color: Full Color
- Usage: Indoor
- Brand Name: RADIANTLED
- Screen Dimension: Customized
- Model Number: HV10
Specifications
Product Description
1.Appearance: LED strip has been protected by aluminum, no bare IC and other electronic components, more safe and reliable, the product
Appearance is more beautiful and tidy.
2.Customizable: Modern glass curtain walls have kinds of size, the standard cabinet can not meet the needs of the project, we can customize
the best project according to the customer glass curtain wall size, can customize cabinet structure and size, ensure the glass curtain wall is
Transparency and display integrity. According to the customer project customize the curved cabinet.

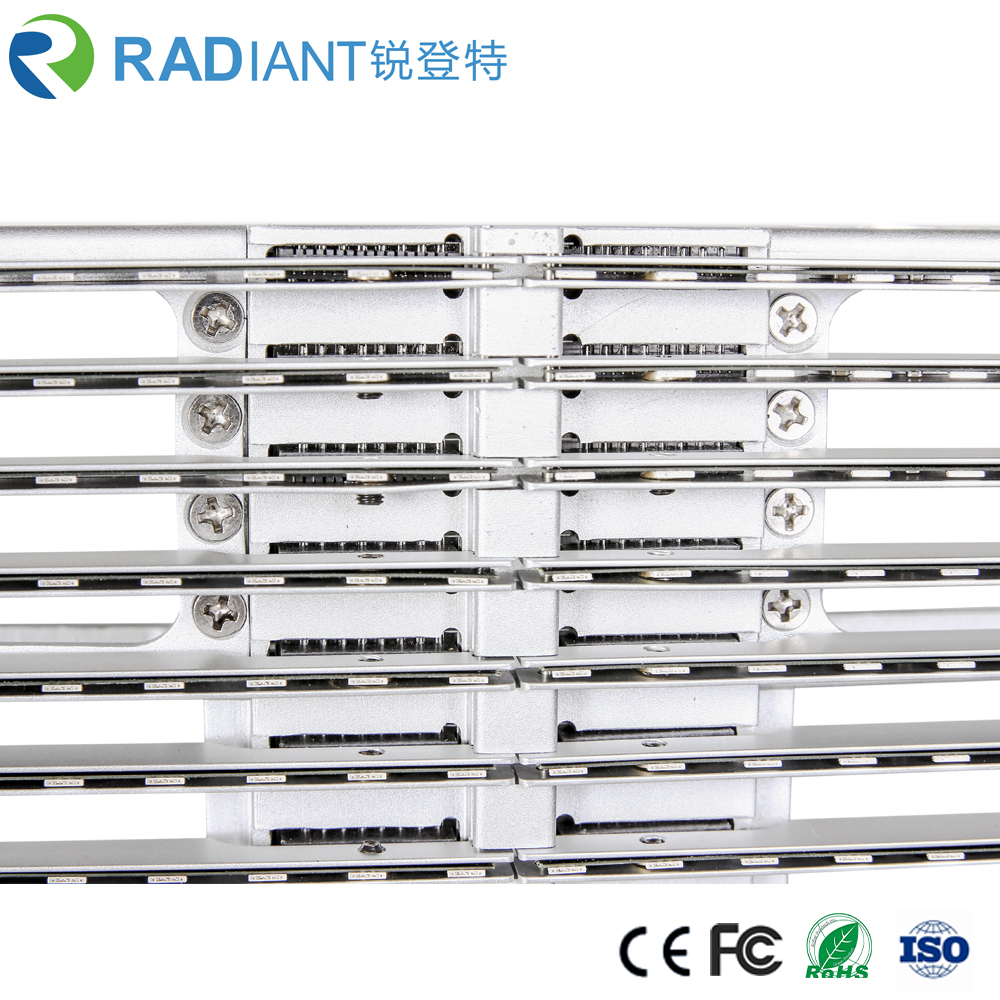

3.Easy maintenance: the light bar is plug-in type, support front and back maintenance, and only need to replace the light strip, easy operation,
Low maintenance costs, short time.
4.Energy-saving and rapid radiating: Side-lighting LED type technology, small LED size, high brightness, low current, save 30% energy than
SMD display.

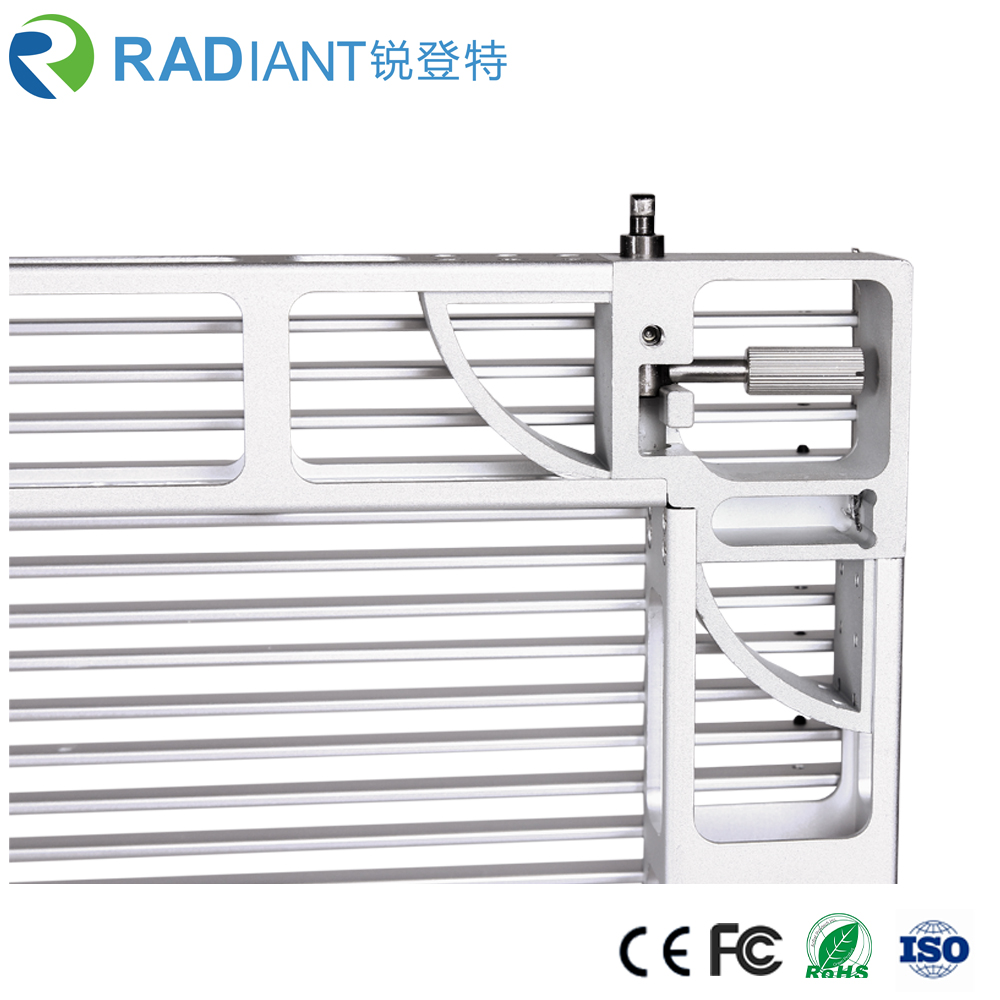

5.Flexible installation cabinet: box supports both horizontal and vertical installation, depending on the curtain wall environment; choose the
Horizontal or vertical placement installation.
Product Parameters
| Pixel Pitch (mm) | 10×10 |
| Transparency | 72% |
| Brightness (CD/m2) | ≥5500 |
| Cabinet size (mm) | 960*640 |
| Cabinet weight (kg) | 8.6 |
| Cabinet resolution(pixels) | 96(W)x64(H) |
| Pixel desinity(pixels/sq.M) | 10000 |
| Reresh frequency (HZ) | ≥1920 |
| Pixel composition | SMD LED on the side |
| Gray scale (16bit) | 65536 |
| Colors | 281 trillion |
| Brightness adjustable(level) | 256 |
| Viewing angle(H/V)(Deg.) | 120 |
| Power consumption (Ave./Max) | 330/960 (W/sq.M) |
| Nput volatge (V) | 110-240VAC |
| Working temp.(℃) | -20~40 |
| Working Humidity | 10%~90% |
| Driving Mode | Constant Current 1/2 scan |
| Maintenance type | Either front or back service |
| Installation Method | Either Hanging or ground installation |
