Tianjin Dalipu Oil Country Tubular Goods.,Ltd
China Manufacturer with main products: Casing Pipe, Tubing, Pup Joint, Coupling, Dirll Pipe, Line Pipe, Alloy Steel Pipe, Pipe Fitting, |

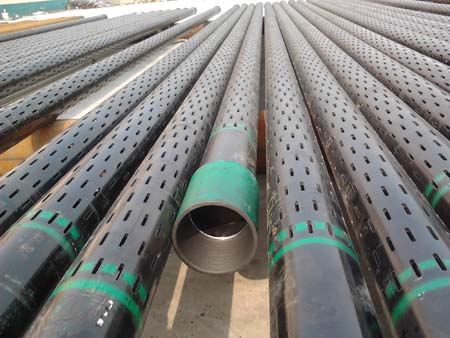

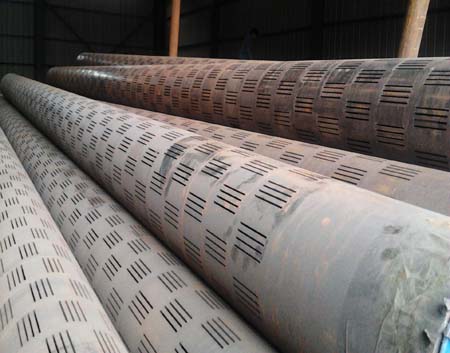

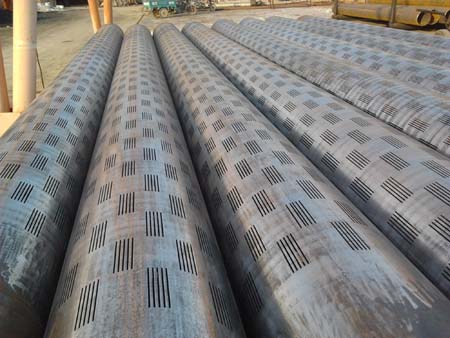

Oil Well Sand Control Screen of Filter Tubes
| FOB Price: | 500.00 - 700.00 USD/Ton |
|---|---|
| Supply Ability: | 500 Ton(s) per Month |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Quick Details
- Section Shape: Round
- Outer Diameter: 89-1200 mm
- Thickness: 3-10 mm
- Grade: 10#-45#,16Mn,API J55-API P110,Cr-Mo alloy,Q195-Q345
- Grade: 10#,20#,45#,16Mn,API J55,API K55,API L80,API N80,API P110,13CrMo44,34CrMo4,35CrMo4,Q215,Q235,Q345
- Standard: API,ASTM,GB,JIS
- Standard: API 5CT,API 5DP,API 5L,ASTM A53-2007,GB/T 8162-1999,GB/T 9711.2-1999,JIS G3460-2006,JIS G3464-2006,JIS G3468-2004
- Outer Diameter: 89-1200mm
- Alloy Or Not: Non-alloy
- Special Pipe: API Pipe
- Certification: API
- Technique: Cold Rolled
- Secondary Or Not: Non-secondary
Specifications
Oil well sand control screen of filter tubes Is made by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic wire screen machine. Each profile wire and support rod is welded by resistance welding. It is used in water well, oil well, gas wells and for environmental well completions.
Material
Generally of stainless steel 304, 304L,316, 316L, 321 etc. We also produce special material according to the customer request.
Characteristics
1) continuous slot screens, stronger and more durable
2) more open area, very precise openings
3) virtually non-clogging and reduce media abrasion
4) easier installation and long-term operating and cost benefits
Technical parameter
1) wire size: 2.2X3.5mm,2.2X4.5mm,
2) Slot width: 0.5mm,1.0mm,
3) screen diameter: 177mm,219mm,273mm,323mm
4) screen length: 5.8m,6m,11.9m,12m.
Packing
They are wrapped with moisture-proof paper or other packing materials inside.The outer package should be wooden pallets or wooden cases.We can also pack according to customer requirements.
