Hot Sale 4*8ft 4 Axis CNC Router for Engrarving Marble Granite Stone

FOB Price: 5,000.00 - 7,500.00 USD/Set
Supply Ability: 100 Set(s) per Month
Shipping: 15 days after received payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: 1. SCT CNC Router and Laser machine and accessories are first covered by plastic sheet, water-proof and dampproof. 2. All the things are packed by plywood case used for export. 3.SCT CNC Router and Laser engraving machine Can be delivered by sea, by train, or by plane according to your designated

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 12 months
  • Certification: CE,ISO,SGS
  • Brand Name: SCT
  • Condition: New
  • Weight: 1200kgs
  • Dimension(L*W*H): 3200X1950X1950mm
  • Power(W): 5.5kw
  • Voltage: 380v 3PH
  • Model Number: SCT-S1325
  • CNC or Not: CNC
  • Product name: Hot Sale 4*8ft 4 Axis CNC Router for Engrarving Marble Granite Stone
  • Type: Stone Engraving Machine
  • Rotary Device: Dia. 50mm-400mm
  • Application:: Stone marble carving cnc router
  • Spindle power: 5.5kw water cooling spindle
  • Working area: 1300x2500x200mm
  • Control system: DSP
  • Transimission: Ball screw and square guide rail
  • Motor: Stepper/Servo

Specifications

Hot Sale 4*8ft 4 Axis CNC Router for Engrarving Marble Granite Stone
1325 Marble Engraving CNC Router Machine with Rotary Axis
Product Features of SCT 4 Axis  CNC Router Stone Marble Carving Machine:

SCT 4 Axis Stone CNC Router,enjoying a high reputation in the market, is popular with many customers from different countries.
SCT Stone CNC router machine is used for heavy weight of thetile,bluestone,granite and tombstones,also can process wood,
MDF or cooper,have the strong structures


SCT 4 Axis Stone CNC Router have the features of
1. Three axises adopt imported linear orbit, two line sliding track, heavy loading, stable working, high precision, longlife time.
2. Whole seamless weld steel structure, wheels on CNC router table, not easy to distort, the table back lining is armor plate,
Good rigidity, the machine can bear  1 MT at least.

3. Constant power spindle and motor, strong cutting capacity, high efficiency,Well compatibility, compatible software CAD/CAM,
Such as Type3, Artcam, Castmate, Wentai, CorelDraw.

4. Double direction cutters cooling stem can prolong the life time of using.
5. Rotary Device
A rotary device includes a fixed body and a shaft. as 4th axis of CNC router, it could work instead of X or Y axis for column
Processing, such as chair jamb, stair jamb, roman column, pillar etc.

the column diameter it fixes could be from 10mm to 400mm, material could be wood, marble, foam etc.

Specifications of SCT 1825 CNC Router Stone Marble Carving Machine with Rotary Axis:

Parts

Descriptions

Remarks

Spindle

5.5kwWater-cooling made in China



Working area

1300x2500x300mm

1800x2500x300mm optional

Rotary Axis

Dia.200mm x Length 1500mm

Dia.80-300mm Length 250-2000mm

Driving system

Stepper motor and drivers,China

Servo motor optional

Transmission

Linear Guide railfor X Y,Ball screw for Z axis



Working platform

Water-groove table +hard bakelite board

KEep water-circulation

Cooling system

Water spray system with double pipe

Clean cutter tools

Control system

DSP handle WIth USB port

NC Studio optional

Software

ArtCAM/Ucancam



Locating accuracy

±0.05mm



Max working speed

15m/min



Max.Travelling speed

25m/min



Command language

G code



Working voltage

AC 380v 50Hz

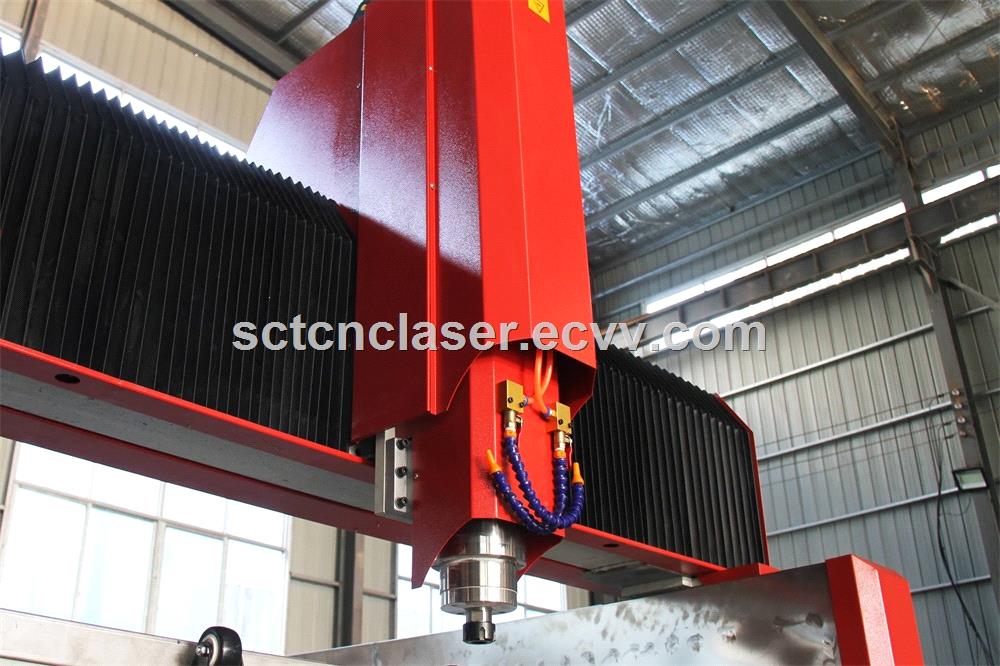

More pictures of 4 Axis Stone CNC Router:

SCT 4 Axis 3D CNC Stone Sculpture Machine CNC Router

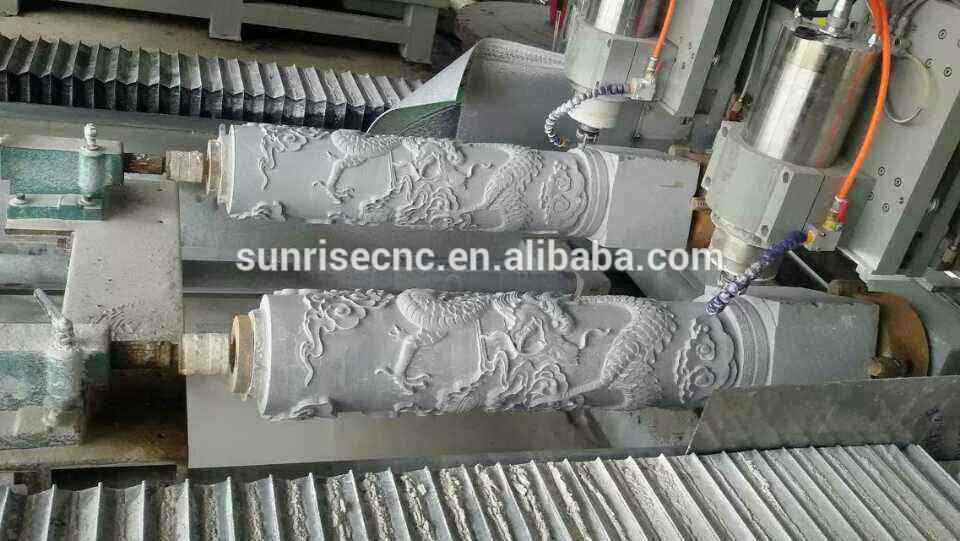

Samples of SCT Heavy Duty CNC Router Stone Marble Carving Machine:
SCT Rotary Axis Precision Stone Marble Engraving CNC Router

Packaging and shipping:
SCT 4 Axis 3D CNC Stone Sculpture Machine CNC Router
Guarantee & after Sales Service
1)  the machine guarantee is 18 months.
2)  24 hours technical support by email or calling.
3)  Friendly English verson manual and operation video CD disc.


Any colors, any logo acceptable, free sample service, leave an inquiry to know more about Price,
Packing, Shipping and Discount.
