Home >Products Catalog > Woodworking CNC router > 2512 4 Axis 3D Wood Stone CNC Router for Cylindrical Crafts Carving

2512 4 Axis 3D Wood Stone CNC Router for Cylindrical Crafts Carving

FOB Price:	12,000.00 - 21,000.00 USD/Set
Supply Ability:	100 Set(s) per Month
Shipping:	20 days after received your payment or deposit for SCT 4 Axis Wood Cylinder Engraving CNC Router
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	1. SCT CNC Router and Laser machine and accessories are first covered by plastic sheet, water-proof and dampproof. 2. All the things are packed by plywood case used for export. 3.SCT CNC Router and Laser engraving machine Can be delivered by sea, by train, or by plane according to your designated

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 Months
Certification: CE ISO9001
Brand Name: SCT
Condition: New
Weight: 3000Kg
Dimension(L*W*H): 3500x2280x2320mm
Power(W): 2.2KW
Voltage: 380V
Model Number: SCT-2512-8
CNC or Not: CNC
Product name: 2512 4 Axis 3D Wood Stone CNC Router for Cylindrical Crafts Carving
Application:: Woodworking,advertising, metal
Spindle power: 2.2KW Water Cooling Spindle(8 Spindles, Hanqi)
Working area: 2500x1200mm
Control system: Ncstudio System
Transimission: Ball screw and square guide rail
Guide: HIWIN linear guide from Taiwan
Table structure: T-slot vacuum
2030 CNC Router Drive System: Japan YASKAVA Servo motors
Engraving Cylinder diameter: <=250mm

Specifications

Looking for Agent, You can get the lowest price with high quality for building the long Long cooperation.
Waiting for your kindly inquiry.

2512 4 Axis 3D Wood Stone CNC Router for Cylindrical Crafts Carving
CNC Turning Machine 4 Axis Wood Stone CNC Router

8 Heads 4 Axis Rotating Axis Wood Cylinder Engraving CNC Router:

SCT presents CNC turner series includes CNC router with 8,10, 12 spindles & rotary device, 1500 CNC router, single spindle
& rotary device indexed. these products are designed mainly for staircase stuff, profile statue, furniture & cabinet feet, kitchen
Island legs, table legs, chair legs, newel posts, sofa leg, Buddha profile, corbel, modillion, baseball bat, crafts etc.

SCT CNC turner series allows machining of parts in the round. the rotay device(rotary attachment), or you may call it
4th axis indexeris like a smart lathe. It makes the rotation of the part the fourth axis of control. this means that you can
Profile objects in the way you might with a traditional lathe, but you can also do ornamental turning and free-form
Carving in the round.

Product Features for CNC Router Make Sculpture 3d models:

1)this machines for sale length up to 1200 mm, suit for mostly material work needed
2)the bed lathe is made of heavy duty structure, analyzed and designed with Taiwan designer.
3)2.2KW constant power air cooling spindle, guarantee the engraving power
4)8 spindles can work at the same time with higher efficiency.
5) Japan YASKAWA servo motor 1.3KW, guarantee working precision and speed

Specifications for Wood Stair 3D CNC Router, 4 Axis 3D Wood Stone CNC Router:

Description	Parameter
4th rotary axis max diameter	150mm/250mm/300mm
Machine dimension	3500mm21002000mm
Resolution	0.01mm
Lathe structure	Seamless welded steel structure
X,Y structure	Rack and pinion transmission, Hiwin square guide rail
Z structure	Imported ball screw
Max. idling speed	35m/min
Spindle motor power	2.2 KW 2.2KW Water Cooling Spindle(8 Spindles, Hanqi)
Spindle rotate speed	0-24000r/min
Working voltage	AC380V/50Hz or can be customized
Working mode	Yaskawa servo motor
the control system	DSP(A18) control system/ NC Studio
Working Size	2500mmΧ1200mmΧ8
Head	8 heads
Rotary	8 rotaries

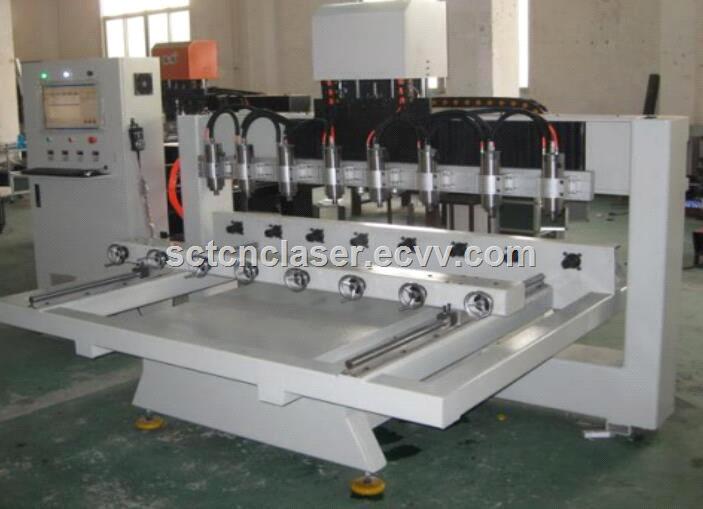

More detail picturec for Engraving Multi-heads Wood CNC Router:

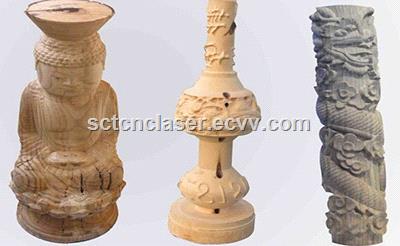

Samples of Wood Turning CNC Router:

2512 4 Axis 3D Wood Stone CNC Router for Cylindrical Crafts Carving

Packaging and Shipping of SCT CNC&Laser Machine:

Guarantee & after Sales Service

1) the machine guarantee is 18 months.

2) 24 hours technical support by email or calling.

3) Friendly English verson manual and operation video CD disc.

4)Service in Life-Time: No matter how many years passed, you always can contact me, we can give you any technical
Support in the future life-time.

Payment terms: T/T(international bank transfer), Alibaba trade assurance, Paypal, West Union

Delivery time: 7-30 working days after received the payment.

Introduction of SCT:

SCT (SUNRISECNC) Is the leading enterprise Specializing in manufacturing, marketing and R&D of CNC router, laser,
Plasma cutting machine, fiber laser cutting machine inChina.

SCT supply machines to a wide variety of Manufacturing sectors including aerospace, automotive, marine, recreational Vehicles,
3D sculpture, concept models, pattern making, formed plastics and Wood working, sign, printing etc.

Please advise us What materials Do you need to engrave or cut? Is that material in roll or in sheet?
What is the max. Thickness? Then we will recommend you the suitable machine model.

Any colors, any logo acceptable, free sample service, leave an inquiry to know more about Price,
Packing, Shipping and Discount.
