Home >Products Catalog > ball bearing > FBF JIMBIL 6303 6304 6313 ZZ RS 6206 Deep Groove Ball Bearing

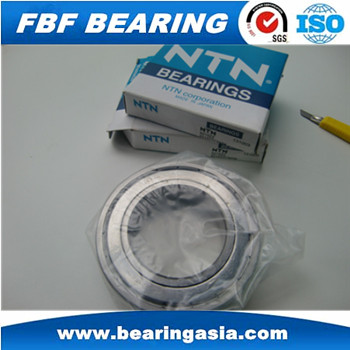

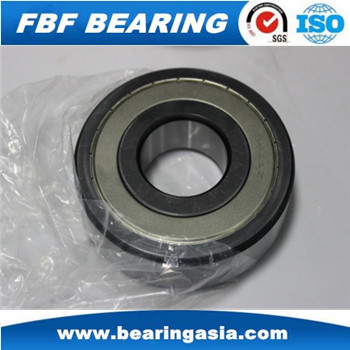

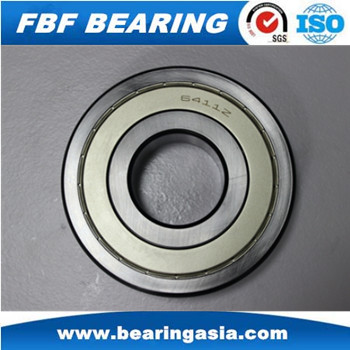

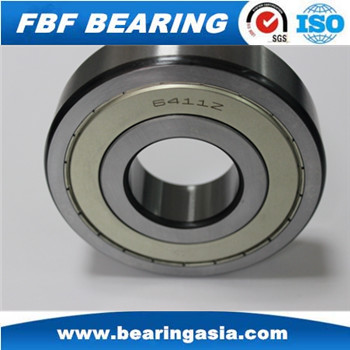

FBF JIMBIL 6303 6304 6313 ZZ RS 6206 Deep Groove Ball Bearing

Supply Ability:	500,000 Piece(s) per Month
Shipping:	3days
Payment Terms:	T/T, Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. industrial package. 2. according to customer requriement.

Quick Details

Type: Ball
Structure: Other Structure
Seals Type: open/zz /rs/2rs
Precision Rating: P5 P6 P0 P4
Outside Diameter: 1-200 mm
Bore Size: 1-90 mm
Brand Name: NSK FBF
Model Number: 6313 ZZ
Material: Chrome steel
Clearance: C2,C3,C4
Vibration: Z2,Z3,V1,V2
Cage: Steel cage, Copper cage
Precision Rate:: ABEC1,ABEC3,ABEC5,ABEC7,
Certification:: ISO9001:2000

Specifications

FBF JIMBIL 6300 series high precision free sample NSK NTN OEM service deep groove ball bearings 6303 6304 6313 ZZ RS

Brand:	FBF JIMBIL
Model:	6313 ZZ ball bearing
Sizes:	1406533mm
Weight:	2.080KG
Material :	Gcr15/Gcr11/stainless steel
FOB Price:	USD $0.1-1,00/ Set
Minimum Order Quantity:	10Set/Sets
Payment Terms:	L/C,T/T,Western Union
Delivery Time:	3 to 45days after order confirmed(depend on the total amount)
Supply Ability:	50000sets per month
Port:	Qingdao Shanghai Ningbo Yiwu Guangzhou China
Packaging:	1.Industry package: Plastic paper+Kraft paper,10pcs or 5pcs/roll 2.Plastic tube: 10pcs/tube or 5pcs/tube 3.Single box: plastic bag+single box, OEM supply 4.Single wooden box: plastic bag+single wooden box 5.Carton: or as your need. 6.Pallet: Wooden
Application of inch taper roller bearing	Home appliances,low noise and high speed electric motors,automotive components, pumps, machinery.

Deep groove ball bearing has simple structure, compared with other types of easy to achieve high manufacturing accuracy, so easy to become series mass production, lower manufacturing costs, the use of very common. Deep groove ball bearing except basic types, there are various kinds of structural change, such as: deep groove ball bearings with dust cover, deep groove ball bearings with a rubber sealing ring, deep groove ball bearings with snap groove, deep groove ball bearings have high load capacity of ball filling gap, double deep groove ball bearings.

Basic type; with snap ring groove on the outer ring (-N); with one shield (-Z) on one side or two shields (-2Z) on both sides; with one seal (-RS) on one side or two seals (-2RS) on both sides.

Generally use steel stamping cage or solid brass cage. When the diameter is less than 400 mm, use steel stamping cage without rear code, solid brass multipurpose holder without rear code when the diameter greater than 400 mm.

the bearings can be found in transmission, instrumentation, motors, household appliances automobiles, machine tools, motors, instruments, construction machines, railway vehicles, agricultural machines and various other special machines.
6202 ZZ C3 6203 ZZ C3 6204 ZZ C3 WT Deep Groove Ball Bearings for Milling Machine

6202 ZZ C3 6203 ZZ C3 6204 ZZ C3 WT Deep Groove Ball Bearings for Milling Machine

Designation		Dimensions			Mass
Designation		d	D	B	KG
6204Z	6204-2Z	20	47	14	0.103
6205Z	6205-2Z	25	52	15	0.127
6206Z	6206-2Z	30	62	16	0.203
6207Z	6207-2Z	35	72	17	0.287
6208Z	6208-2Z	40	80	18	0.367
6209Z	6209-2Z	45	85	19	0.416
6210Z	6210-2Z	50	90	20	0.462
6211Z	6211-2Z	55	100	21	0.607
6212Z	6212-2Z	60	110	22	0.783
6213Z	6213-2Z	65	120	23	0.99
6214Z	6214-2Z	70	125	24	1.1
6215Z	6215-2Z	75	130	25	1.2
6216Z	6216-2Z	80	140	26	1.4
6217Z	6217-2Z	85	150	28	1.8
6218Z	6218-2Z	90	160	30	2.15
6219Z	6219-2Z	95	170	32	2.6
6220Z	6220-2Z	100	180	34	3.2
6221Z	6221-2Z	105	190	36	3.71
6222Z	6222-2Z	110	200	38	4.44
6224Z	6224-2Z	120	215	40	5.32
6226Z	6226-2Z	130	230	40	6.13
6228Z	6228-2Z	140	250	42	7.45
6230Z	6230-2Z	150	270	45	9.4
6302Z	6302-2Z	15	42	13	0.082
6303Z	6303-2Z	17	47	14	0.115
6304Z	6304-2Z	20	52	15	0.141
6305Z	6305-2Z	25	62	17	0.219
6306Z	6306-2Z	30	72	19	0.35
6307Z	6307-2Z	35	80	21	0.454
6308Z	6308-2Z	40	90	23	0.639
6309Z	6309-2Z	45	100	25	0.836
6310Z	6310-2Z	50	110	27	1.05
6311Z	6311-2Z	55	120	29	1.35
6312Z	6312-2Z	60	130	31	1.7
6313Z	6313-2Z	65	140	33	2.1
6314Z	6314-2Z	70	150	35	2.5
6315Z	6315-2Z	75	160	37	3
6316Z	6316-2Z	80	170	39	3.6
6317Z	6317-2Z	85	180	41	4.25
6318Z	6318-2Z	90	190	43	4.9
