Shandong Kaiqiang Machinery Co., Ltd.
China Manufacturer with main products: Mini Wheel Loader, Backhoe Loader, Forklift Loader, Skid Steer Loaders, Mini Excavator, Motor Grator, Forklift, Road Roller |

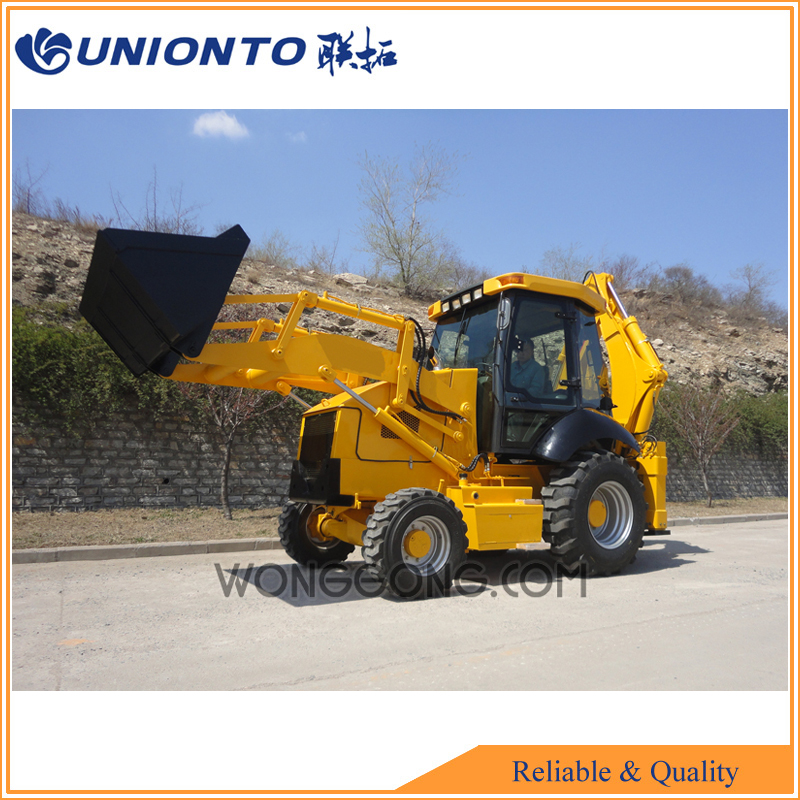

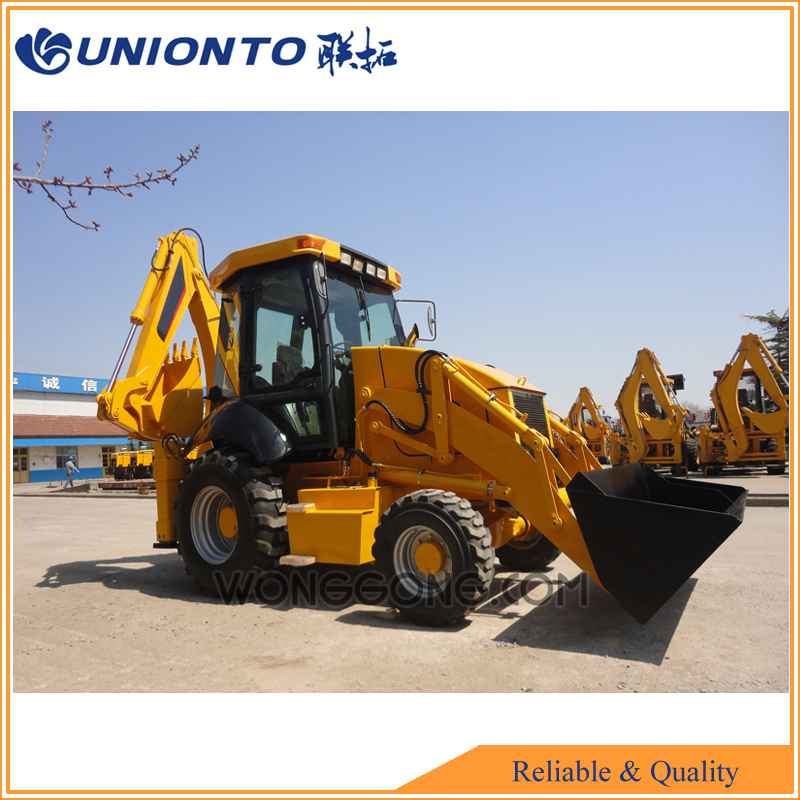

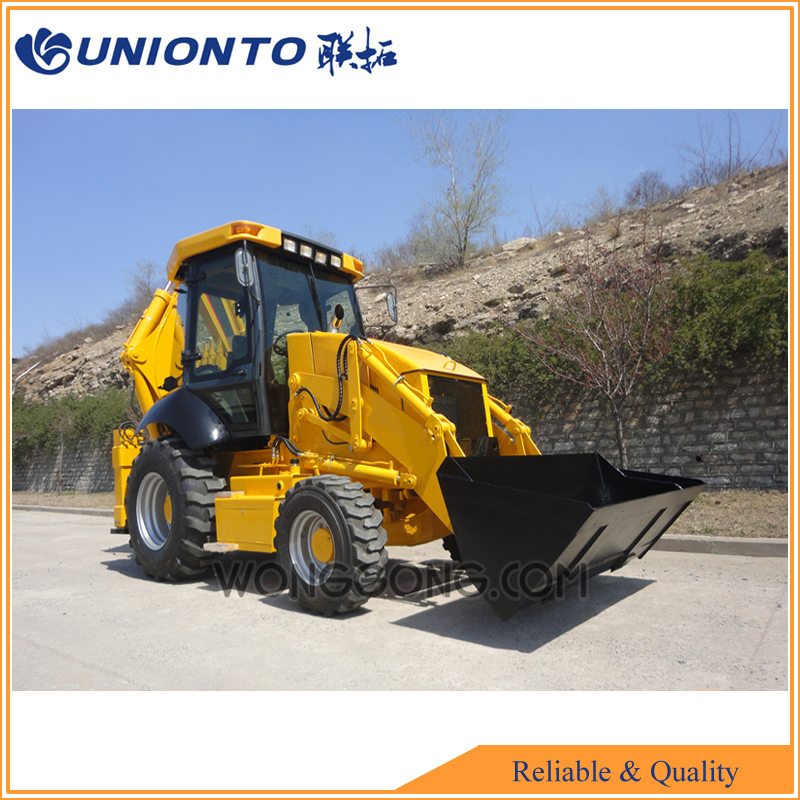

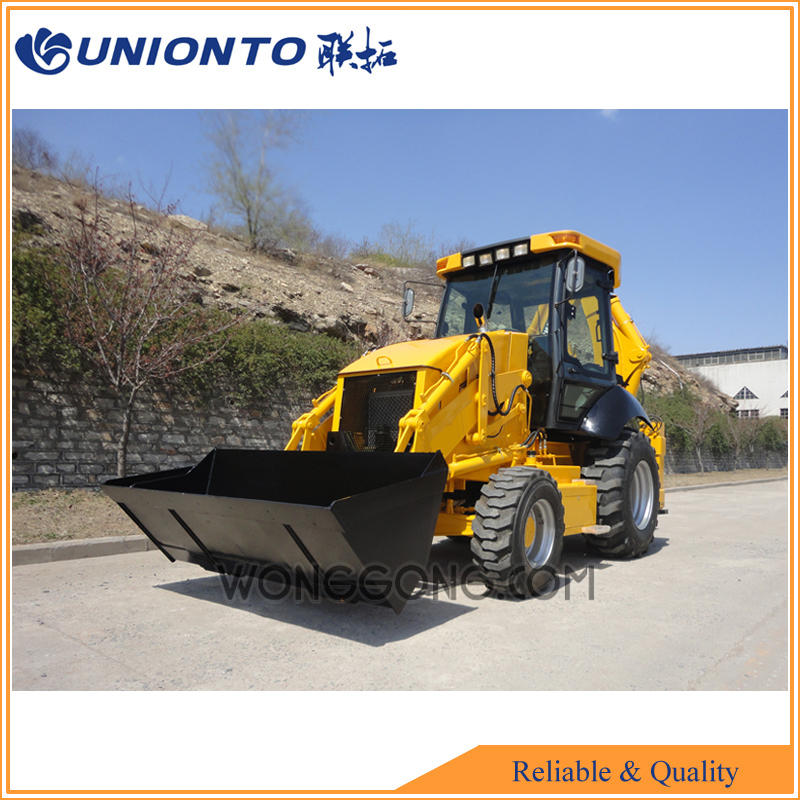

Backhoe Loader UNIONTO-388, Cummins Engine (OEM Available)
| FOB Price: | 5,000.00 - 50,000.00 USD/Unit |
|---|---|
| Supply Ability: | 500 Unit(s) per Month |
| Shipping: | Port: Qingdao |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | MDF Wooden Box; by container; |
Quick Details
- Moving Type: Wheel Loader
- Type: Backhoe Loader
- Brand Name: UNIONTO
- Condition: New
- Year: 2017
- Make: Shandong Kaiqiang
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: ISO
- Rated Load: 7.5t/18.75t
- Dimension(Long * Breadth * High): 5920*2250*3770(mm)
- Model Number: 388, Cummins Engine
Specifications
the Main Performance Parameter of Backhoe LoaderUNIONTO-388
Specification |
|
Specification |
|
Overall Operating Weight |
8200KG |
Rated dynamic/static Load ofrear axle |
7.5t/18.75t |
Performance |
|
Transmission System |
|
L*W*H (mm) |
5920×2250×3770 |
Torque Converter |
|
Wheel base |
2200mm |
Model |
YJ280/TLB1-4WD |
Min. Ground Clearance |
300mm |
Type |
Single-stage Three Elements |
Bucket Capacity |
1.0m3 |
Max. Efficiency |
84.4% |
Breakout Force |
38KN |
Inlet Pressure |
0.5Mpa |
Loading Lifting Capacity |
2500KG |
Outlet Pressure |
1.1Mpa—1.3 Mpa |
Bucket Dumping Height |
2742mm |
Cooling Method |
Oil-cooling Pressure Circulation |
Bucket Dumping Distance |
1008mm |
Gearbox |
|
Digging Depth |
52mm |
Type |
Countershaft, Powershift |
Backhoe Capacity |
0.3 m3 |
Oil Pressure of Clutch |
1373Kpa—1569 Kpa |
Max. Digging Depth |
4082mm/4500mm |
Gears |
Two Gears Ahead, two Gears Astern |
Swing Angle of Excavator Grab |
190o |
Max. Speed |
38Km/h |
Max. Pulling Force |
39KN |
Tyre |
|
Engine |
|
Model |
14-17.5/19.5L-24 |
Model |
CUMMINS 4BTA3.9—C100 |
Pressure of Front wheel |
0.35 Mpa |
Type |
in Line Direct injection Four-Stroke and Injection Combustion Chamber |
Pressure of Back Wheel |
0.4 Mpa |
Cylinder-Inside Diameter*Stroke |
4-102×120 |
Brake system |
|
Rated Power |
74KW |
Service Brake |
Wet-type |
Rated Speed |
2200r/min |
|
Internal type |
Min. Fuel Consumption |
≤210g/kWh |
|
Self-regulation |
Max. Torque |
≥410N.M/1500r/min |
|
Self-balance |
Displacement |
3.9L |
Emergency Brake |
Spring brake |
Steering System |
|
|
Terminating brake through hydraulic |
Model of Steering Device |
BZZ5-250 |
Hydraulic System |
|
Steering Angle |
±33 o |
Digging Power of Excavator Grab |
46.5KN |
Min. Turning radius |
6950mm |
Digging Power of Dipper |
31KN |
Pressure of the system |
12Mpa |
Bucket Lifting Time |
6.8S |
Axle |
|
Bucket Lowering Time |
3.1S |
Manufacturer |
Made in China |
Bucket Discharge Time |
2.0S |
Rated dynamic/static load of front axle |
7t/22t |
|
