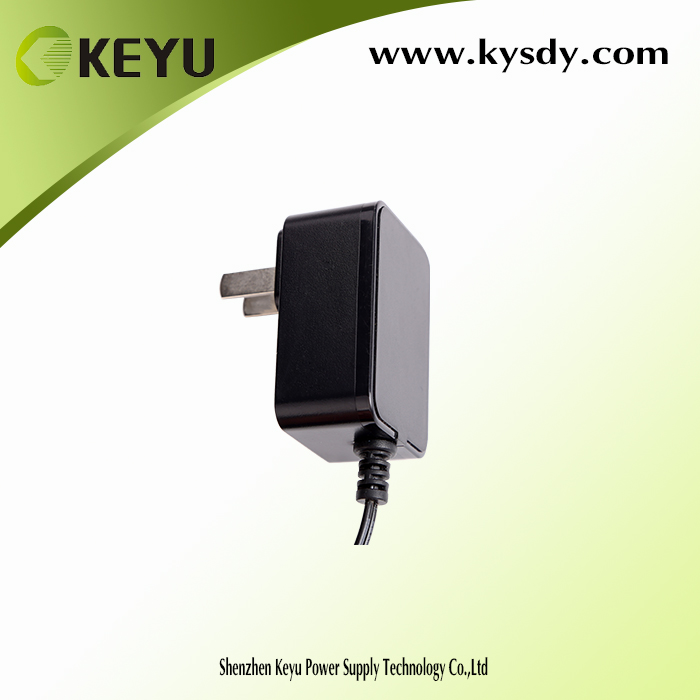

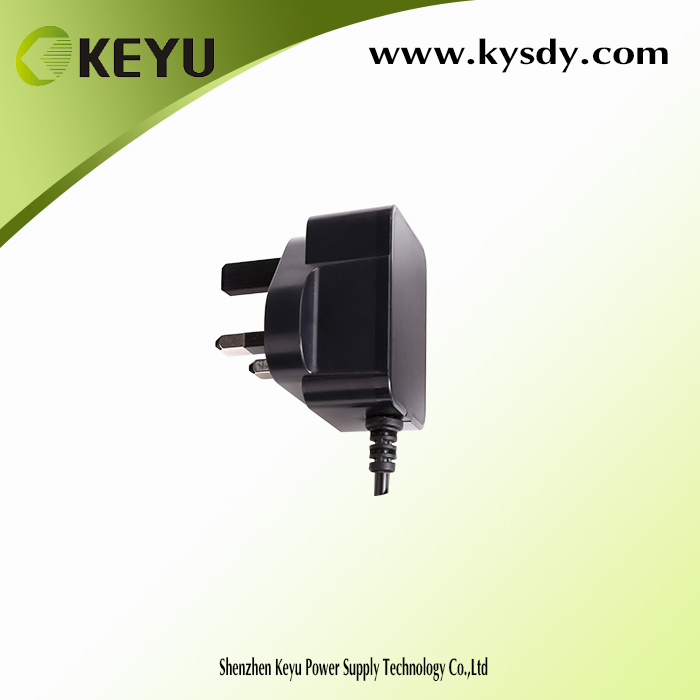

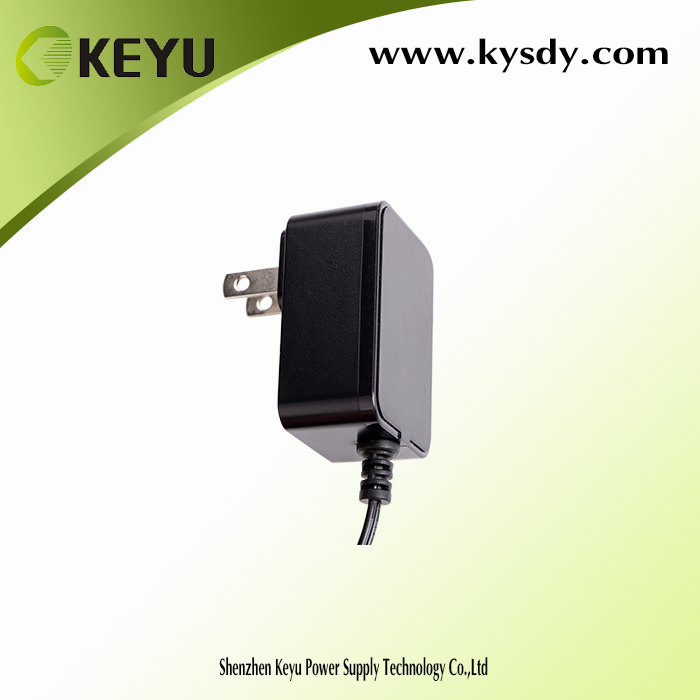

2017 Newest Design 5v 1a 1.2a Power Adapter for IP Camera

FOB Price:	1.10 - 2.50 USD/Piece
Supply Ability:	1,000,000 Piece(s) per Month
Shipping:	15-20 days
Payment Terms:	T/T, Western Union, Other, Paypal

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Inner packing: Transparent poly bag / with White box Outer packing: Carton 100pcs/carton in size 570340197mm Carton 50pcs/carton in size 460420233mm

Quick Details

2017 newest design 5v 1a 1.2a power adapter for IP camera

Input Voltage:	100~240Vac(Range:90~264Vac)
Input Current:	0.2A max
Frequency:	50/60Hz(Frequency range:47~63Hz)
Output voltage:	3.0-24V
Output current:	0-1.2A
Ripple & Noise:	120mV max
Power consumption at no load:	0.075W max
Conversion efficiency:	>73.6%
Voltage regulation/Load regulation:	±5%
CC/CV
Hi-pot test:	3000 VAC/1min/5mA
Leakage current:	0.25mA max @240 VAC
with over-current, over-voltage, over-temperature, Short-circuit protection function
Operating temperature:	0~40℃
Safety standards:	IEC6238 UL62368 EN60950 GB4943
EMC standards:	EN55032 FCC Part 15 EN61000 GB17625
