Guangzhou Kingpan Industrial Co., Ltd.
China Manufacturer with main products: Battery Charger for Scooter, Lead Acid Battery Charger Golf Cart, Lithium Battery Charger for Truck, Battery Charger for Electronic Cars |
Home
>Products Catalog > 3000-4000W battery charger for electric vehicle,car, fork tuck > Rechangeable Waterproof 3000W 30V Battery Charger with CE Certification Approved for Hot Sale

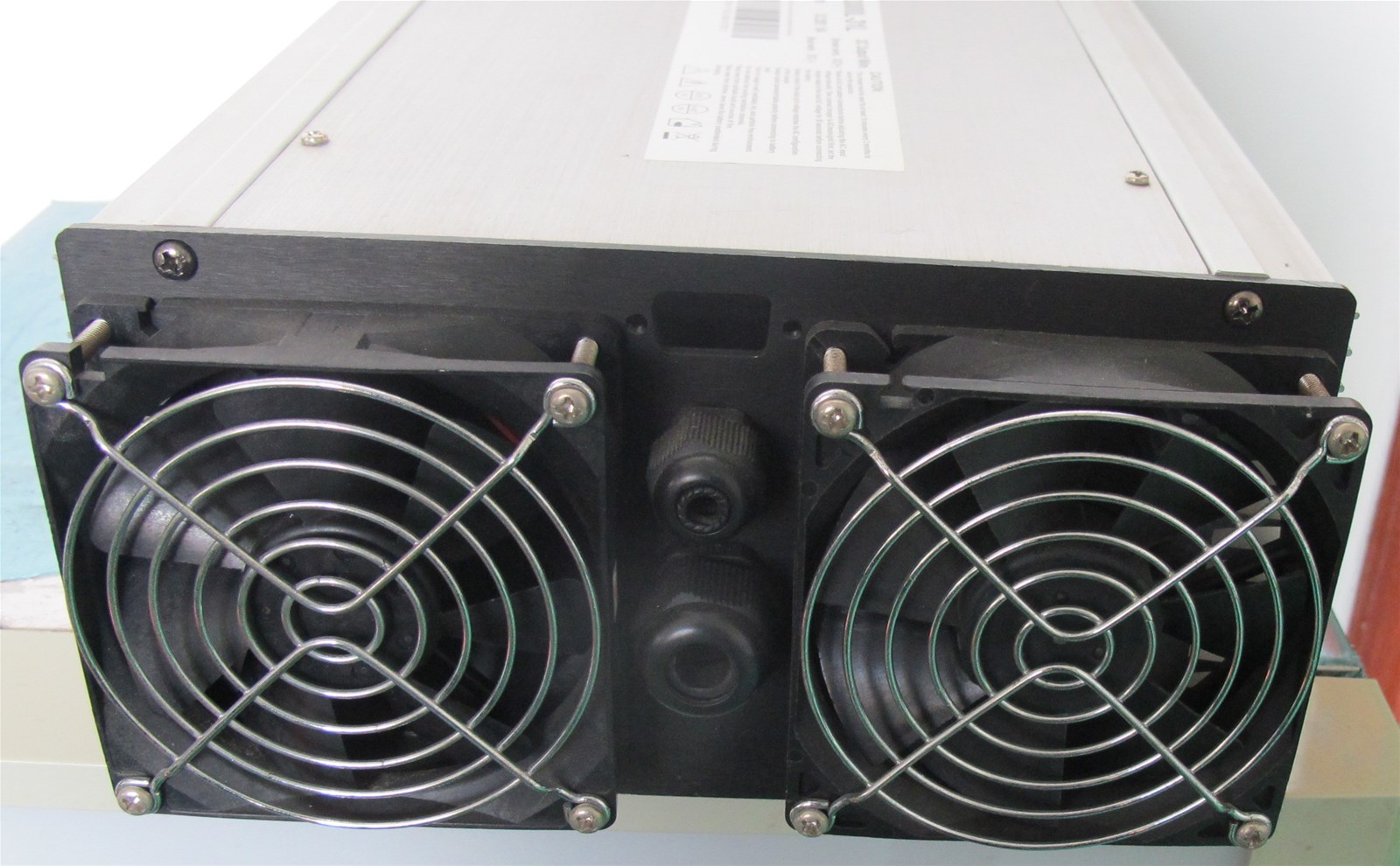

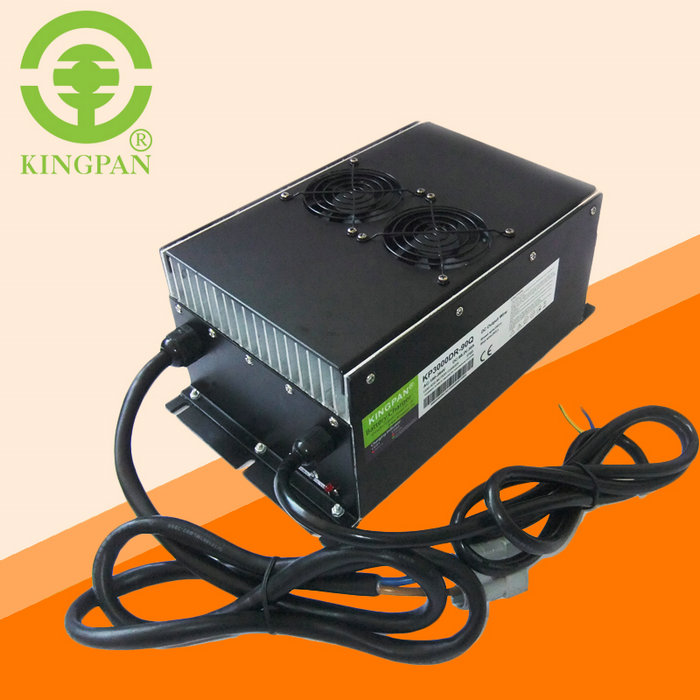

Rechangeable Waterproof 3000W 30V Battery Charger with CE Certification Approved for Hot Sale
| FOB Price: | 401.00 - 451.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece(s) per Month |
| Shipping: | 7-15 days |
| Payment Terms: | T/T, Other, PayPal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Carton & box |
Quick Details
- Nominal Capacity: 12V/24V/36V/48/60V
- Nominal Voltage: 12V
- Type: Li-Ion
- Brand Name: KINGPAN
- Model Number: KP-3000DR
Specifications
Rechangeable waterproof 3000W 30V battery charger with CE certification approved for hot sale
Introduction
Working Conditions | |
Humidity: |
5~95% |
Altitude: |
≤3000m |
Protect | |
over Voltage: |
Charger output voltage does not exceed the set maximum charging Voltage of the battery |
over-temperature: |
None |
Limiting: |
Charger output current does not exceed the set maximum battery Charging Current. |
Short CIrcuit: |
When the output short-circuit theCharger is not working properly, the Output returns to normal, the Charger can restore itself. |
Reverse Polarity: |
When the output line reversed after the charger will not work until the Right User access only to start. |
Charging | |
POwer on: |
LED1: Red LED2: Green |
Charging: |
LED1: Red LED2: Red |
Fully Charged: |
LED1: Red LED2: Green |
Environmental TEsting REquirements | |
Max. OPerating TEmperature: |
+40℃ |
Min. OPerating TEmperature: |
-10℃ |
Max.STorage TEmperature: |
+70℃ |
Min. STorage TEmperature: |
-40℃ |
Random Vibration: |
20Hz to 500Hz Acceleration 0.49 |
Repeat Shock: |
10Hz to 60Hz Amplitude 0.38 |
Thermal Shock: |
-35~75 degree,<3min transition, 2.5hours dwell, 200cycle |
Drop Test: |
BS EN60068-2-32:1993 TEST ED: free fall appendix B |
Note: after the return to normal temperature 2 hours, the charger can work. | |
Specification
Nominal Output Voltage |
CV | CC | Transition / Cut-off Current | Net Weight | Size | |||
| Lead Acid | Li-MnO2 | LiFePO4 | A | Lead Acid (A) | Li(A) | (kg) | (mm) | |
| 48V | 58.8V | 54.6V | 58.4V | 50 | 9.0 | 2.3 | 8.5 | 330*220*116 |
| 60V | 73.5V | 67.2V | 73.0V | 45 | 7.0 | 1.8 | ||
| 144V | 176.4V | 176.4V | 175.2V | 16 | 3.2 | 0.8 | ||
| 288V | 352.8V | 352.8V | 350.4V | 8 | 1.6 | 0.4 | ||
Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.
Features
- Advanced high frequency switching mode power supply technology
- DC output isolated from AC input
- Completely automatic battery charging: CC,CV, Float or Cut-off.
- 2 LED Display: Red (power on), Red/green (charging/full).
- Short circuit, over voltage, over-temperature, Reverse Polarity Protections.
- Efficiency > 85%.
- Forced ventilation with fans.
- Aluminium housing, light weight, portable
Application
1. EPS,UPS Emergency Power
2. Vehicle (Bus, Forklift etc.)
3. Storage of New Energy (solar energy,wind energy)
Delivery
Shipping: by sea /by air /by DHL, EMS, Fedex, etc.
Packaging: Carton& Box or Depends on customers requirements
Cleaning, labelling, packing, sealing and add shipment mark
Payment: T/T
Our Services
2 year warranty.
OEM & ODM are welcome
Excellent Pre-sales and after sales service system.
Company Information
22 years of expertise and experience in battery charger development and manufacturing. Largest Chinese exporter of battery chargers to Germany, France, Sweden, Holland, Japan and Korea.
Why Choose Us
1. the good construction Warranty--2 years.
2. Your client satisfied on the right schedule and quality
3. Your can get good reputation from your market and obtain more orders
4. Our professional service before and after sale.
5. the reasonable price.
6. Our products have passed authoritative certification and all quality indexes are in line with international standard.
7. Any questions from you are welcome and will be replied with enthusiasm!
Welcome to Inquire!
