Manganese Steel & Carbon Steel Fiber Laser Cutting Machine(SCT-F3015)
| FOB Price: | 40,000.00 - 61,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set(s) per Month |
| Shipping: | 20 days after received your payment or deposit |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Plywood box for High Speed Metal Plates Kitchen Manufacturing SCT Fiber Laser Cutting Machine F3015. |
Quick Details
- Application: Laser Cutting
- Certification: CE,ISO
- Brand Name: SCT
- Graphic Format Supported: BMP,DST,DXF,DXP,LAS,PLT
- Applicable Material: Metal
- Laser Type: Fiber Laser
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: SCT-F3015
- Control Software: CypCut
- Cooling Mode: Water Cooling
- CNC or Not: Yes
- Cutting Speed: 0-60m/min
- Cutting Area: 3000x1500mm
- Cutting Thickness: 0-25mm
- Condition: New
- Product name: Manganese Steel and Carbon Steel Fiber Laser Cutting Machine(SCT-F3015)
- APPLICABLE MATERIAL: METAL
- Max. Cutting Thickness: 6-8mm
- Machine Weight:\: 3600kg
- Laser power: 500W-2000W
- Rail: Taiwan Hiwin Square rail
- Motor: Stepper/Servo
- Power supply: 380V/220V
- laser device: Raycus/IPG
Specifications
Good Price 750W Fiber Laser Titanium Alloy Cutting Machine SCT-F3015
Product Featuresof SCT Metal Fiber Laser Cutting Machine:
1 the bed and worktable will be high Temperature tempering after welded, stress relief after precision machining, and then
the vibration aging treatment can completely eliminate the stress of Welding and machining, high strength and high accuracy,
20 years without Deformation.
2 the machine base frame structure is made of high quality steel plate and tube welding, and double aging treatment, large
Gantry milling machine precision machining,ensure that the machine has Excellent shock resistance, high rigidity and stability.
3 Germany's ultra-precision reducer, rack gear, Japanese guide and ball screw, Japanese servo motor, high precision,
High Speed, high torque, stable and durable performance. Ensure the high speed and Acceleration performance.
4 Excellent cutting quality and efficiency, Cutting speed 60 m/min, travel speed 90 m/min.
5 International advanced technology of Fiber laser, stable performance, working life is up to100 thousand hours.
Applicable Material of SCT Metal Fiber Laser Cutting Machine:
Cutting various metal plates and pipes, mainly Applicable to stainless steel, carbon steel, manganese steel, galvanized
Steel, alloy Plate, rare metal materials etc. Widly used in advertising decoration, kitchen Utensils manufacturing, engineering
Machinery, metal processing, air Conditioning, ventilation cabinet manufacturing equipment, automobile Manufacturing and
Other industries.
Specifications of SCT Metal Fiber Laser Cutting Machine:
Cutting various metal plates and pipes, mainly Applicable to stainless steel, carbon steel, manganese steel, galvanized
Steel, alloy Plate, rare metal materials etc. Widly used in advertising decoration, kitchen Utensils manufacturing, engineering
Machinery, metal processing, air Conditioning, ventilation cabinet manufacturing equipment, automobile Manufacturing and
Other industries.
Specifications of SCT Metal Fiber Laser Cutting Machine:
1 |
Machine Name |
SCT-F3015 Fiber laser cutting machine |
2 |
Laser machine cutting area |
3000x1500mm |
3 |
Cutting thickness |
0.1-12mm stainless steel/0.1-10mm steel |
4 |
Rated power | 10-100% |
5 |
laser |
RaycusBrand 1000-watt fiber laser |
6 |
Laser wave length |
1080nm |
7 |
Transmission system |
Imported ballscrew/ Gear rack(optional) |
8 |
X.Y axis location accuracy |
±0.01mm |
9 |
X.Y axis repeat location accuracy |
±0.01mm |
10 |
X.Y axis max moving speed |
30m/min |
11 |
Max cutting speed |
1--16m/min |
12 |
Min cutting line with |
0.02mm |
13 |
Line acceleration | 75m/min |
Cutting Parameters ofSCT Metal Fiber Laser Cutting Machine::
| Material | Thickness(mm) |
Speed (m/min) | Cover Gas |
| Stainless Steel | 0.3 | 25 | Oxygen |
| 0.5 | 15 | Oxygen | |
| 0.7 | 12 | ||
| 0.9 | 10 | ||
| 1.0 | 9 | ||
| 1.2 | 7 | ||
| 2 | 5 | ||
| 3 | 2 | ||
| 4 | 1.2 | ||
| 6 | 0.2 | ||
| 1 | 8-9 | Nitrogen | |
| 2 | 3-3.5 | ||
| 3 | 0.3-0.5 | ||
| Carbon Steel | 1 | 8-9 | Oxygen |
| 2 | 2.5-3.5 | Oxygen | |
| 3 | 2-2.5 | ||
| 4 | 1-1.5 | ||
| 5 | 0.7-1 | ||
| 6 | 0.7-0.9 | ||
| Aluminum Alloy | 1 | 2 | Nitrogen |
| 2 | 0.4-0.6 | Nitrogen |
Machine details of SCT Metal Fiber Laser Cutting Machine:

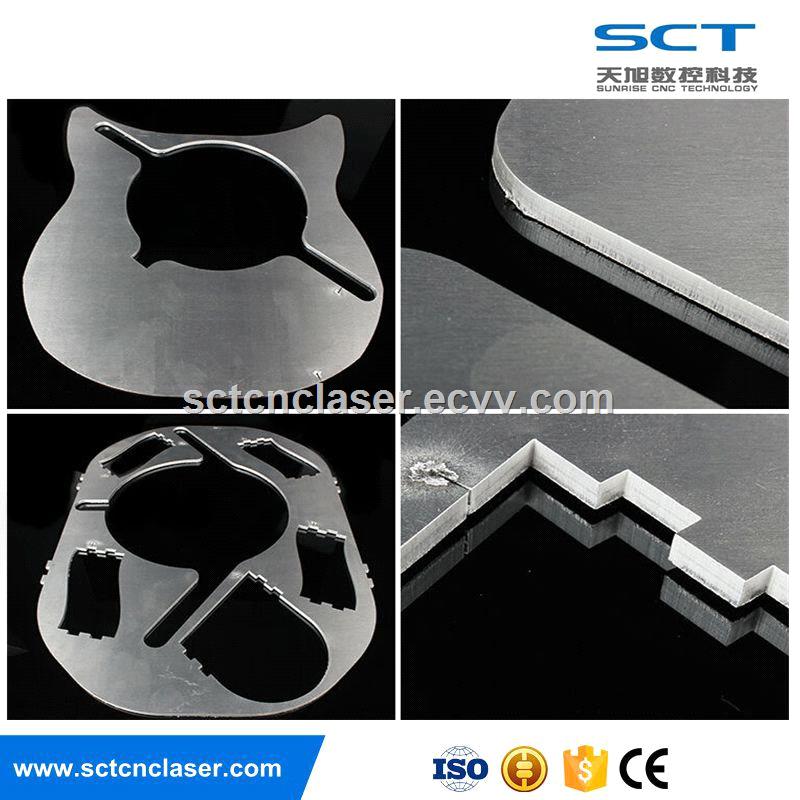

Samples of SCT Metal Fiber Laser Cutting Machine:
Guarantee & after Sales Service
Samples of SCT Metal Fiber Laser Cutting Machine:
Guarantee & after Sales Service
1) the machine guarantee is 18 months.
2) 24 hours technical support by email or calling.
3) Friendly English verson manual and operation video CD disc.
Any colors, any logo acceptable, free sample service, please leave an inquiry to know more about Price,
Packing, Shipping and Discount.
