Shanghai Bladar Wire & Cable Co., Ltd.
China Manufacturer with main products: Electric Cable, Electrical Cable, Rubber Cable, Power Cable, Control Cable, Electrical Wire |

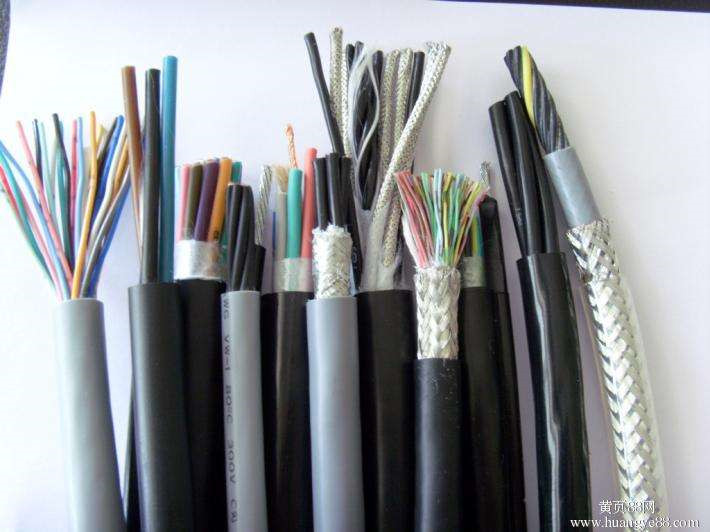

Soft PVC Vct Flexible Cables
| FOB Price: | 0.15 - 30.00 USD/Meter |
|---|---|
| Supply Ability: | 10,000,000 Kilometer(s) per Year |
| Shipping: | 15Days |
| Payment Terms: | L/C, D/A, D/P, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
Quick Details
- Insulation Material: PVC
- Conductor Material: Copper
- Application: Industrial
- Brand Name: Bladar
- Type: Insulated
- Jacket: PVC
- Model Number: VCT
Specifications
Application of Standards: JIS C3306-2000
Product structure and color
Conductor: Stranded or solid bare copper or tinned copper wire JIS C 3102, JIS C3152.
Insulation: PVC comply with JIS C3306-1993.
Color code: cores using color recognition, should be consistent with the standards JIS C3306-1993.
Sheath Material: PVC
Sheath Color: Black ( RAL 9005)
Technical parameters
Rated voltage:600v
Test Voltage:3000V/1MIN comply with JIS C3005.
Minimum bending radius
Fixed laying: 4xD (CABLE DIA.)
Mobile Installation: 7.5XD ( Cable DIA.)
Temperature
Fixed Laying: -30C-+80C
Flexing:-5C-+70C
Fire Retardant: Flame retardant and self-extinguishing acc. to JIS C3005 NO4.26.
Characteristics and Compliance
Features: Comply with PSE
Fine conductors, a smaller bending angle soft.
Meet the Cert. Rohs.
Typical applications
for Electrical, instrumenttation, power equipment and automation devices without external direction even without forced traction movable cable.
| TYPE | Cond.No. | Per Con.Φ | Weight KG/KM | External Dia. | |
| VCT | 0.5*2C | 20 | 0.18 | 100.4 | 8.5 |
| VCT | 0.5*3C | 20 | 0.18 | 113.6 | 8.9 |
| VCT | 0.5*4C | 20 | 0.18 | 132 | 9.6 |
| VCT | 0.5*5C | 20 | 0.18 | 154.6 | 10.4 |
| VCT | 0.5*6C | 20 | 0.18 | 177.8 | 11.3 |
| VCT | 0.5*7C | 20 | 0.18 | 190.8 | 11.3 |
| VCT | 0.5*8C | 20 | 0.18 | 214.3 | 12.1 |
| VCT | 0.5*9C | 20 | 0.18 | 244 | 13.3 |
| VCT | 0.5*10C | 20 | 0.18 | 273.7 | 14.2 |
| VCT | 0.5*11C | 20 | 0.18 | 295.6 | 14.6 |
| VCT | 0.5*12C | 20 | 0.18 | 303.7 | 14.6 |
| VCT | 0.5*13C | 20 | 0.18 | 331.1 | 15.4 |
| VCT | 0.5*14C | 20 | 0.18 | 339 | 15.4 |
| VCT | 0.5*15C | 20 | 0.18 | 368.6 | 16.2 |
| VCT | 0.5*16C | 20 | 0.18 | 379.6 | 16.2 |
| VCT | 0.5*17C | 20 | 0.18 | 410.6 | 17.1 |
| VCT | 0.5*18C | 20 | 0.18 | 418.7 | 17.1 |
| VCT | 0.5*19C | 20 | 0.18 | 431.7 | 17.1 |
| VCT | 0.5*20C | 20 | 0.18 | 449.3 | 17.5 |
| VCT | 0.5*21C | 20 | 0.18 | 471.6 | 17.9 |
| VCT | 0.5*22C | 20 | 0.18 | 480.1 | 19.1 |
| VCT | 0.5*23C | 20 | 0.18 | 506.8 | 19.9 |
| VCT | 0.5*24C | 20 | 0.18 | 519.8 | 19.9 |
| VCT | 0.5*25C | 20 | 0.18 | 532.8 | 19.9 |
| VCT | 0.5*26C | 20 | 0.18 | 553 | 20.4 |
| VCT | 0.5*27C | 20 | 0.18 | 566 | 20.4 |
| VCT | 0.5*28C | 20 | 0.18 | 591.4 | 21.1 |
| VCT | 0.5*29C | 20 | 0.18 | 604.4 | 21.1 |
| VCT | 0.5*30C | 20 | 0.18 | 617.4 | 21.1 |
| VCT | 0.5*31C | 20 | 0.18 | 644.4 | 22 |
| VCT | 0.5*32C | 20 | 0.18 | 657.4 | 22 |
| VCT | 0.5*33C | 20 | 0.18 | 670.4 | 22 |
| VCT | 0.5*34C | 20 | 0.18 | 698.4 | 22.8 |
| VCT | 0.5*35C | 20 | 0.18 | 711.4 | 22.8 |
| VCT | 0.5*36C | 20 | 0.18 | 724.5 | 22.8 |
| VCT | 0.5*37C | 20 | 0.18 | 737.5 | 22.8 |
| VCT | 0.75*2C | 30 | 0.18 | 110.3 | 8.8 |
| VCT | 0.75*3C | 30 | 0.18 | 126 | 9.2 |
| VCT | 0.75*4C | 30 | 0.18 | 147.5 | 9.9 |
| VCT | 0.75*5C | 30 | 0.18 | 175.5 | 10.9 |
| VCT | 0.75*6C | 30 | 0.18 | 199.3 | 11.7 |
| VCT | 0.75*7C | 30 | 0.18 | 215.1 | 11.7 |
| VCT | 0.75*8C | 30 | 0.18 | 244.9 | 12.7 |
| VCT | 0.75*9C | 30 | 0.18 | 274.1 | 13.8 |
| VCT | 0.75*10C | 30 | 0.18 | 312.6 | 14.8 |
| VCT | 0.75*11C | 30 | 0.18 | 338.1 | 15.3 |
| VCT | 0.75*12C | 30 | 0.18 | 348.4 | 15.3 |
| VCT | 0.75*13C | 30 | 0.18 | 380 | 16.1 |
| VCT | 0.75*14C | 30 | 0.18 | 390 | 16.1 |
| VCT | 0.75*15C | 30 | 0.18 | 424 | 17 |
| VCT | 0.75*16C | 30 | 0.18 | 437.3 | 17 |
| VCT | 0.75*17C | 30 | 0.18 | 472.8 | 17.9 |
| VCT | 0.75*18C | 30 | 0.18 | 483.1 | 17.9 |
| VCT | 0.75*19C | 30 | 0.18 | 498.8 | 17.9 |
| VCT | 0.75*20C | 30 | 0.18 | 519.6 | 18.4 |
| VCT | 0.75*21C | 30 | 0.18 | 545.6 | 18.8 |
| VCT | 0.75*22C | 30 | 0.18 | 555.7 | 20 |
| VCT | 0.75*23C | 30 | 0.18 | 586.4 | 21 |
| VCT | 0.75*24C | 30 | 0.18 | 602.2 | 21 |
| VCT | 0.75*25C | 30 | 0.18 | 625.8 | 21.4 |
| VCT | 0.75*26C | 30 | 0.18 | 641.6 | 21.4 |
| VCT | 0.75*27C | 30 | 0.18 | 657.4 | 21.4 |
| VCT | 0.75*28C | 30 | 0.18 | 686.6 | 22.2 |
| VCT | 0.75*29C | 30 | 0.18 | 702.4 | 22.2 |
| VCT | 0.75*30C | 30 | 0.18 | 718.2 | 22.2 |
| VCT | 0.75*31C | 30 | 0.18 | 749.2 | 23.1 |
| VCT | 0.75*32C | 30 | 0.18 | 764.9 | 23.1 |
| VCT | 0.75*33C | 30 | 0.18 | 780.7 | 23.1 |
| VCT | 0.75*34C | 30 | 0.18 | 812.9 | 24 |
| VCT | 0.75*35C | 30 | 0.18 | 828.7 | 24 |
| VCT | 0.75*36C | 30 | 0.18 | 844.4 | 24 |
| VCT | 0.75*37C | 30 | 0.18 | 860.2 | 24 |
