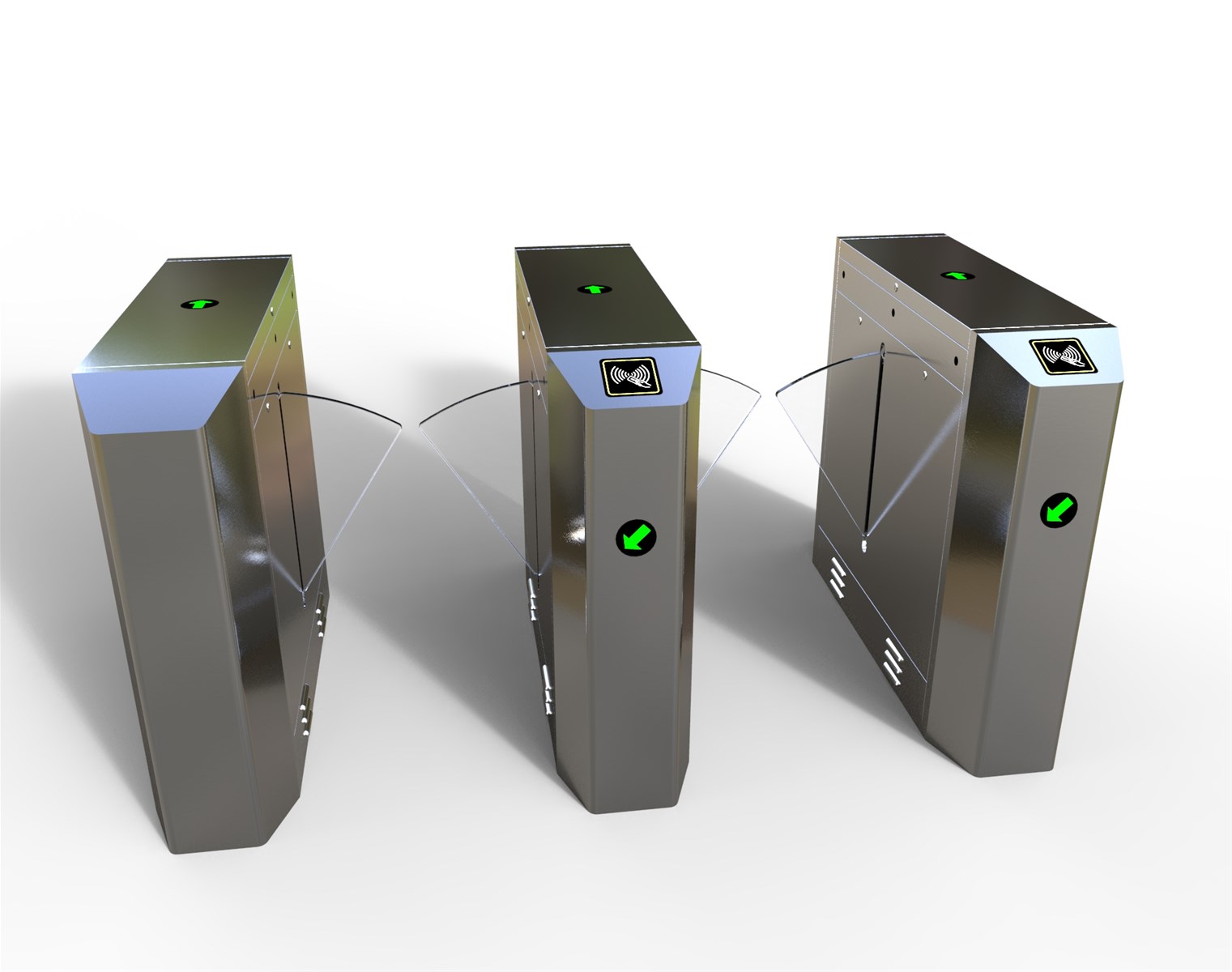

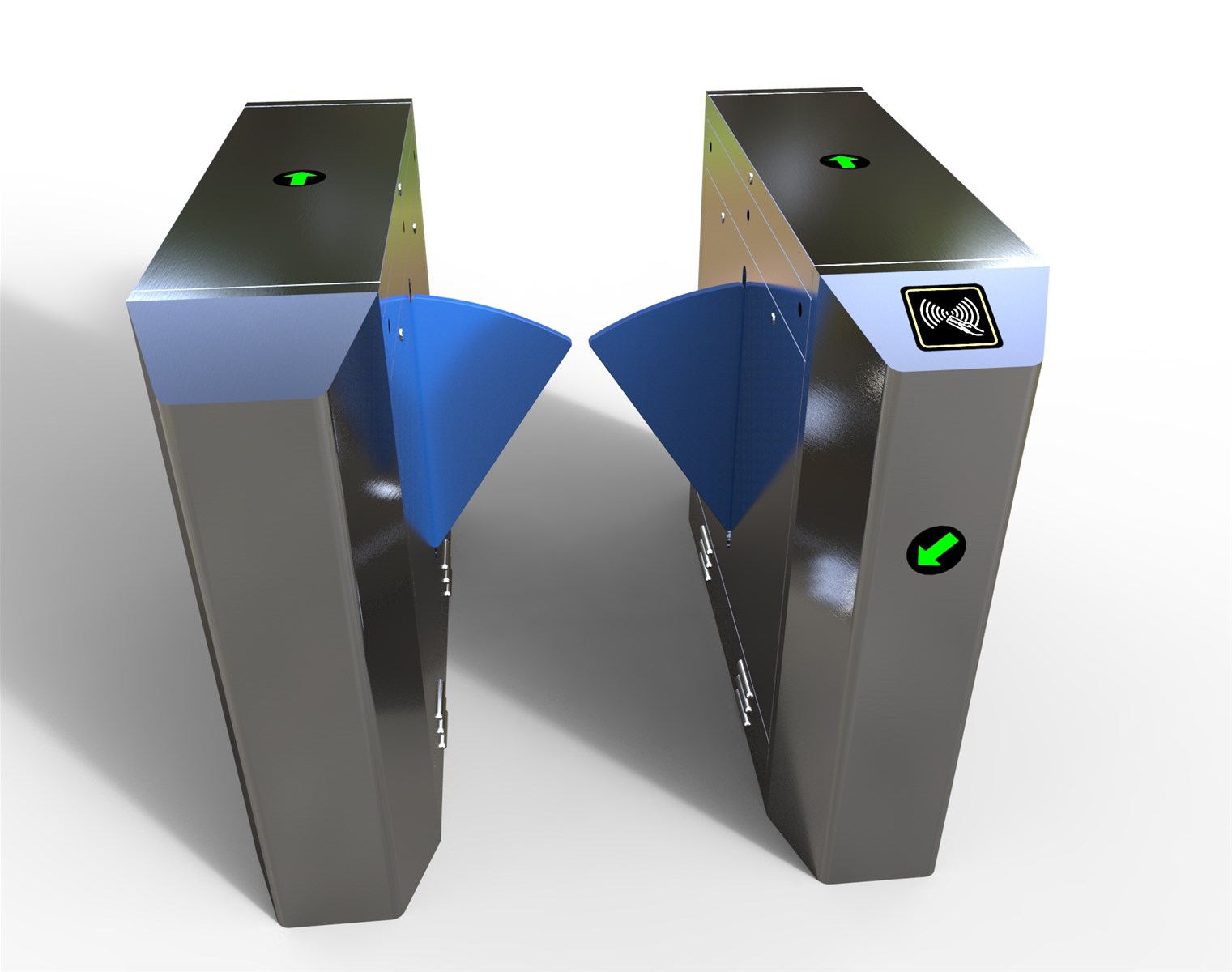

Quality Guarantee RFID Card IC Barrier Gate, Flap Access Control Turnstiles
| FOB Price: | 300.00 - 700.00 USD/Piece |
|---|---|
| Supply Ability: | 2,000 Piece(s) per Month |
| Shipping: | Sample order takes 5~7 days, bulk order takes 15~25 days. |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Poly-film for naked machine, then a foam to anti-shake, carton for cover, then surface should be in |
Quick Details
- Brand Name: Showay
- material: SUS304 Stainless Steel
- Color: Customized color
- Warranty: 1 year
- Card Type: RFID card
- Model Number: ECCV-BSD04
- Name: tripod turnstile with rfid reader
- Material: SUS304 Stainless Steel
- Color: Customized Color
- Coarting: Brush,powder, PPG,etc
- Open Direction: Single Direction/Bi-Direction
- Packing: Poly film+foam+woodencase
- Application: Access Control System
Specifications
Product Specification:
Vertical Type Access Control System for Entrance, Tripod Turnstile
Product application:
1.Tripod turnstile gate are compact and cost-effective entrance
Solutions.
2.the body is made of brushed stainless steel which is robust,
Rigid, anti-rust and durable.
3.Tripod turnstile gate is ideal for indoor and outdoor settings.
4.It can be integrated with any kind of access controller system
(e.g.: RFID device, Push button, Fingerprint and Biometric device).
Case of emergency, the tripod turnstile gate will drop down
When power off.
7.It is suitable for all kinds of places

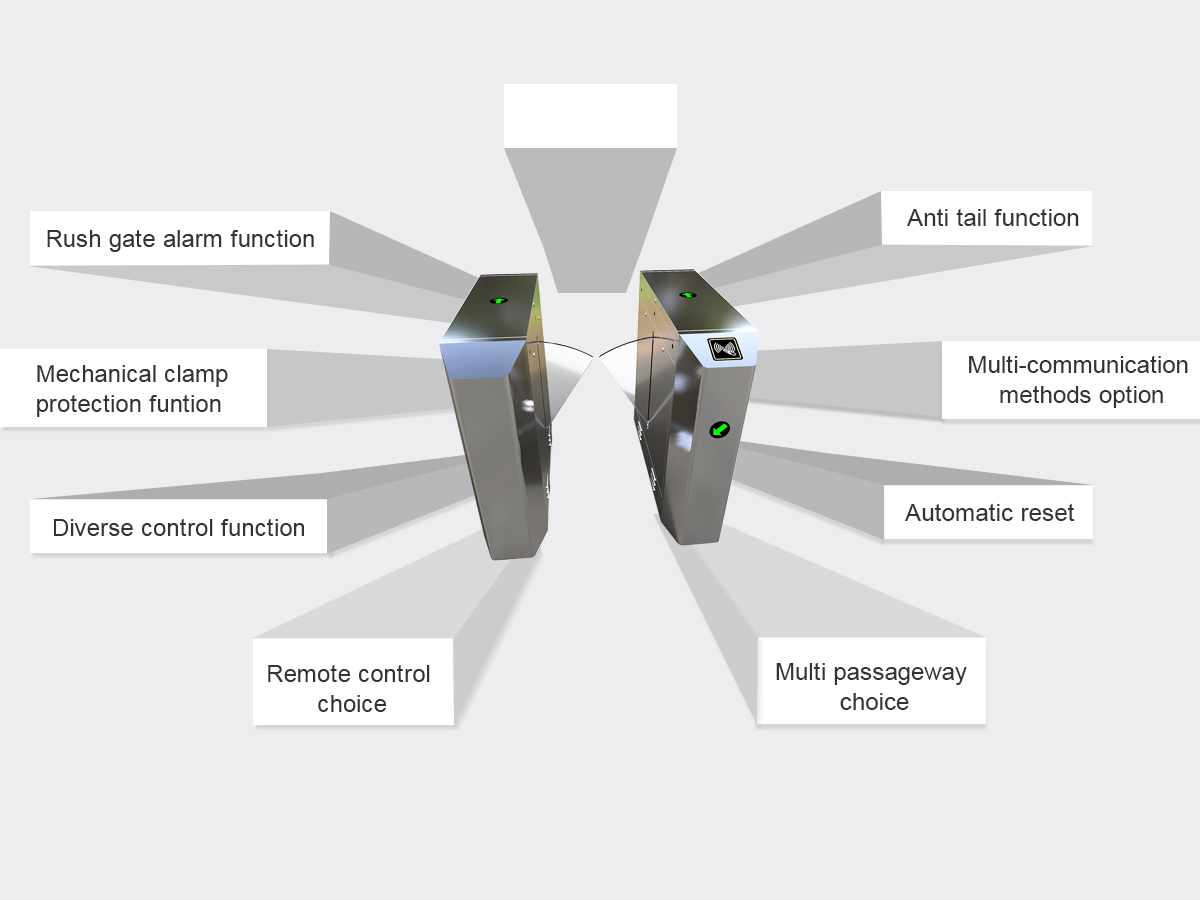

Product Features:
1.Auto replacement function, reposition after Person pass by
2.Anti tail function auto-lock once Turn 120°.
3.Arms auto drop when power off, insure Unblocked when accident
4.Standard electronic interface, remote control through internet which is also could connect variety card readers and receive Relay signal to work
5.Diverse control mode optional, changeable due to varying, convenient for your manage
6.Auto alert error function, comfort for user Maintain and operate
7.Manual button or remote control ,Bio-directional passage
8.Open signal with memory or with out set Function
9.Red and green light to show pass or stop, Leisure to exit and entrance
Technical parameters | |||
Power voltage |
AC220±10%,50Hz |
Open angle |
120° |
Drive voltage |
AC12V+AC18V |
Pass speed |
Less than 30 person/minutes |
(Operation condition) |
-15°C~+60°C |
Structure |
Frame or 304 Stainless steel cover |
Relative humidity |
None-condensation |
Open direction |
Single and Double(optional) |
Input signal |
12v DC level or 12v pulse>100ms |
Work environment |
Outdoor and indoor |
Working Current |
Less than 2000mA |
IP Degree |
IP43 |
Length of the bar |
510mm |
Width of passage |
≤550mm |
Service life |
≥5 million |
|
|
RFID IC/ID Card Customized:
Material introduction:
Features:
Shipping:
* Sample order takes 5~7 days, bulk order takes 15~25 days.
* Shipping way: FedEx, UPS, DHL, TNT, EMS, by sea or by air, according to customer's advise.
Our advantages:
1. One of the leading and professional manufacturers in China
2. High quality products and competitive price
3. Good service, with 15 months warranty
4. OEM & ODM are welcome
5.We
Can provide SDK development or Software Data base connection port.
Q:1.What's the different between Single core and double core?
A:Flap gates: Single core only with one retractable Flap bar, Double core with two retractable flap bar on both side.
Swing gates: single core is one side with Swing bar, Double core with two swing bar on both side.
Q:2.Can we connect your access control system to the Original system?
A:Yes, we can provide SDK development or Software Data base connection port.
Q:3.Can your barrier gates using at outdoor, and can it waterproof?
A:Yes, the barrier gates with the design for waterproof.
Q:4.how we install the barrier gate? Is it easy to install the gates?
A:Yes,its easy to install the gates, we have do most of the jobs before send the gates to you. You just need use screw to fix the gates, and connect the power cable and the internet cable.
