Double Direction Thrust Angular Contact Ball Bearing 234418

Supply Ability:	500,000 Piece(s) per Month
Shipping:	2days
Payment Terms:	T/T, Western Union, MoneyGram, Safebuy, Paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	1. industrial package. 2. according to customer requirement.

Quick Details

Type: Ball
Structure: Angular Contact
Outside Diameter: 24-1540 mm
Bore Size: 10-1380 mm
Brand Name: NSK SKF FBF
Structure: thrust ball bearing
Type: ball bearing
Number of Row: Single Row
Seals Type: open
Precision Rating: P4 P5 P6 P0
Model Number: 234418
Precision Rating: P0,P2,P5,P6,P4
Number of Row: single and double row
material of the bearing retainer: steel,Copper,nylon plastic
material of the bearing: Chrome steel
Ring(race)material:: Chrome steel, stainless steel, ceramics
Cage(retainer)material:: Steel, brass, nylon
application:: gearbox, auto, reduction box, engine machinery, bicycles, etc.
Quality standard:: ISO 9001:2008

Specifications

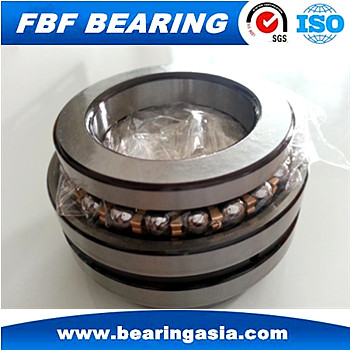

NSK FBF SKF Double direction Thrust Angular Contact Ball Bearing 234418

ThRust ball bearings are manufactured as single direction or double direction Thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

Specification:

1.Available in two designs: single direction and double direction.
2.to accommodate initial misalignments in an assembly both design.
3. High quality Steel - Ultra clean steel to extend bearing life by up to 80%.
4. Advanced Grease Technology - lubricants that can extend grease life and performance.
5. High Grade Balls - Quiet and smooth operation even at high speed.
6. Optional seating rings take initial misalignment.

Brief introduction of Thrust Ball Bearings:

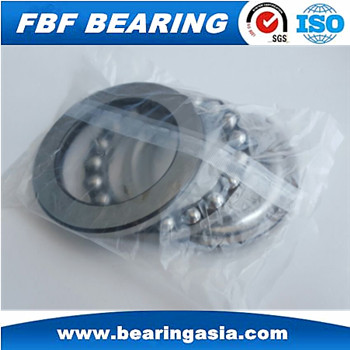

1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.

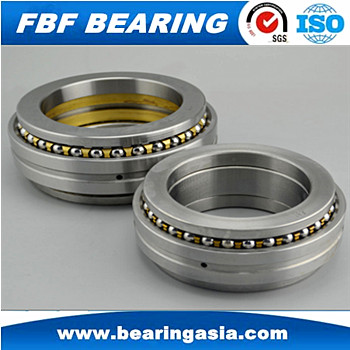

2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. the shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.

NSK FBF SKF 51100 Single Direction Thrust Ball Bearing for CNC machine

Bearing No	Dimension(mm)	C/C0(kN)	Mass(KG)
234407	356234	18.6/49	0.38
234408	406836	21.6/60	0.46
234409	457538	24.7/71	0.58
234410	508038	25.5/78	0.62
234411	559044	33.8/104	0.94
234412	609544	34.5/108	1
234413	6510044	35.8/116	1.05
234414	7011048	43.6/143	1.45
234415	7511548	44.2/150	1.55
234416	8012554	54/180	2.1
234417	8513054	54/190	2.2
234418	9014060	62.4/220	3
234419	9514560	63.7/232	3.05
234420	10015060	66.3/245	3.15
234421	10516066	74.1/275	4.05
234422	11017072	92.3/335	5.05
234424	12018072	93.6/360	5.7
234426	13020084	117/455	8.15
234428	14021084	117/475	8.65
234430	15022590	140/570	10.5
234432	16024096	156/640	14
234434	170260108	195/780	17.5
234436	180280120	225/915	23
234438	190290120	225/950	24
234440	200310132	265/1100	31

1. with one-way, two types of two-way.
2. in order to allow installation error, whether one-way or two-way, you can select the type of spherical self-aligning spherical or spherical saddle seat type.
3. Quality steel - the highest use can extend bearing life 80% of the ultra clean steel.
4. A high degree of grease technology - grease lubricant technology can extend the life and improve the performance of bearings.
5. High-grade steel ball - quiet and smooth high-speed rotation.
6. Using options in the ring, may allow installation error.
