Home  >Products Catalog > ball bearing > NSK KOYO FBF High Precision Ball Bearing 569184 Thrust Ball Bearing 569184 Sizes 420*500*48mm

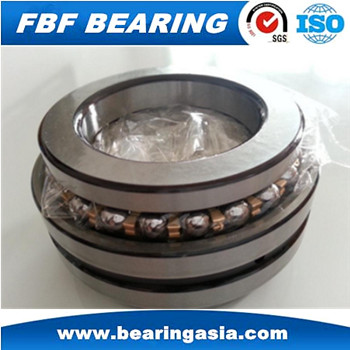

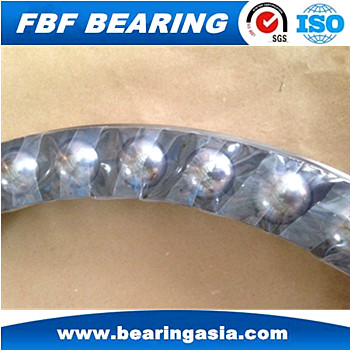

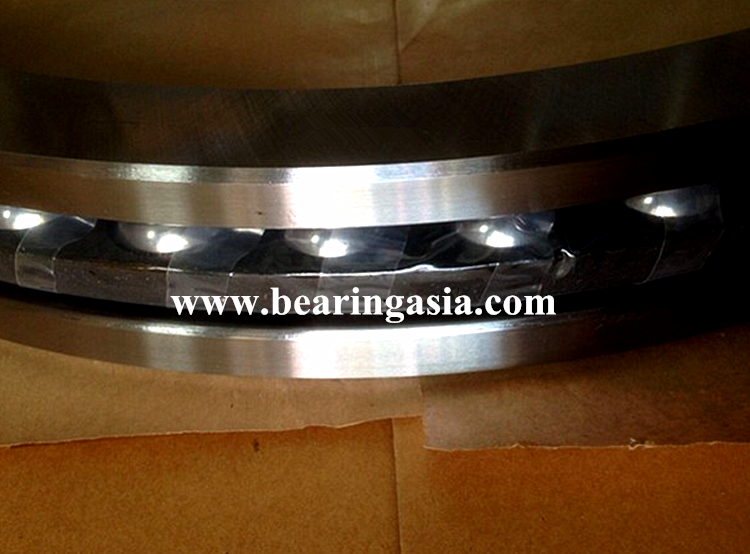

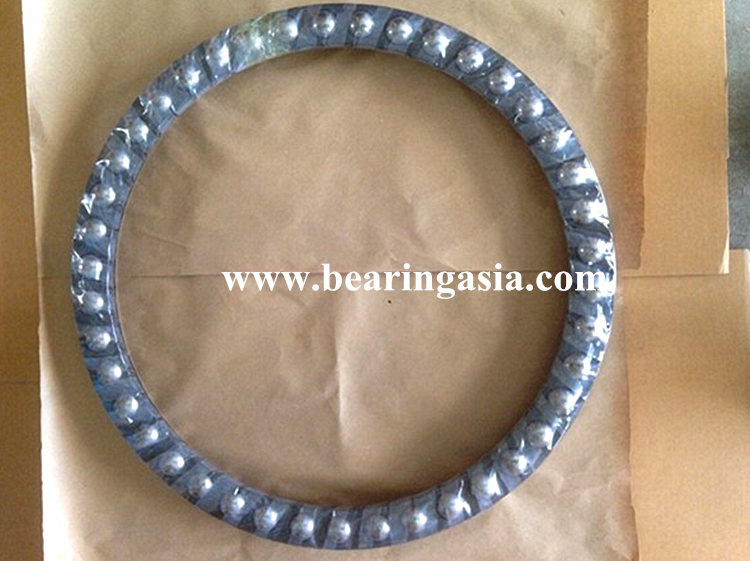

NSK KOYO FBF High Precision Ball Bearing 569184 Thrust Ball Bearing 569184 Sizes 420*500*48mm SafeBuy Supplier Member

FOB Reference Price: $ 1
Wholesale: ≥1 Piece(s)
Supply Ability: 500,000 Piece(s) per Month
Shipping: 2days
Payment Terms: T/T, Western Union, MoneyGram, Safebuy, Paypal
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanghai in China
Packaging Details: 1. industrial package. 2. according to customer requirement.

Quick Details

  • Type: Ball
  • Structure: Thrust
  • Outside Diameter: 0-500 mm
  • Bore Size: 0-420 mm
  • Brand Name: FBF KOYO
  • Structure: thrust ball bearing
  • Type: ball bearing
  • Number of Row: Single Row
  • Seals Type: open
  • Precision Rating: P4 P5 P6 P0
  • Model Number: 569184
  • Precision Rating: P0,P2,P5,P6,P4
  • material of the bearing retainer: steel,Copper,nylon plastic
  • material of the bearing: Chrome steel
  • Ring(race)material:: Chrome steel, stainless steel, ceramics
  • Cage(retainer)material:: Steel, brass, nylon
  • application:: gearbox, auto, reduction box, engine machinery, bicycles, etc.
  • Quality standard:: ISO 9001:2008

Specifications

NSK FBF SKF Heavy load 5691/500F Thrust Ball Bearings

ThRust ball bearings are manufactured as single direction or double direction Thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.



Specification:

1.Available in two designs: single direction and double direction.
2.to accommodate initial misalignments in an assembly both design.
3. High quality Steel - Ultra clean steel to extend bearing life by up to 80%.
4. Advanced Grease Technology - lubricants that can extend grease life and performance.
5. High Grade Balls - Quiet and smooth operation even at high speed.
6. Optional seating rings take initial misalignment.

Brief introduction of Thrust Ball Bearings:

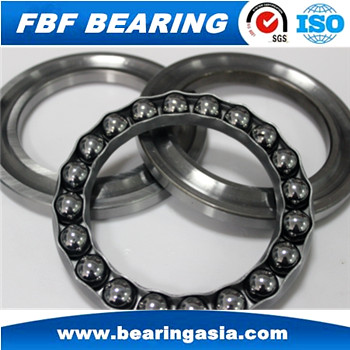

1. Single direction thrust ball bearings: consist of two washers with raceways and balls guided b a cage. Washers have flat seating surfaces, and that is why they must be supported so that all balls can be evenly loaded. Bearings carry the axial load only in one direction. They are not able to carry radial forces.



2. Double direction thrust ball bearings: have two cages with balls between the central shaft washer and two houding washers with flat seating surfaces. the shaft washer has raceways on both sides and is fixed on the journal. Bearings are able to carry only axial forces in both directions.




NSK FBF SKF 51100 Single Direction Thrust Ball Bearing for CNC machine

New bearing number Old bearing number  Inner diameter Outer diameter Width Weight
(mm) (mm) (mm) (kg)
569164 9168164 320 400 48 11.6
569184 9168184 420 500 48 15.9
5691/500 91681/500 500 600 80 25.3
5691/600 91681/600 600 710 67 37.6
5691/750 98681/750 750 900 90 94.4
5691/1000 91681/1000 1000 1180 109 177
5691/1120 91681/1120 1120 1320 122 241
569196 9168196 480 580 60 43
569184/P6 E9168184 420 500 48 15.9
569184/P5 D9168184 420 500 48 15.9
569164F1 9168164W 320 400 48 12.1
569164/P6 E9168164 320 400 48 12.1
569164/P5 D9168164 320 400 48 11.6
569105X2V/P6 E768705 25 42 10 0
569105X2V/P5 D768705 25 42 10 0
569105X2V 768705 25 48 12 0
5691/600X3 1688/600 600 700 60 34
5691/34V 91681/34 34 54 12.5 0.078
5691/26V 91681/26 26 45 11.25 0.06

1. with one-way, two types of two-way.
2. in order to allow installation error, whether one-way or two-way, you can select the type of spherical self-aligning spherical or spherical saddle seat type.
3. Quality steel - the highest use can extend bearing life 80% of the ultra clean steel.
4. A high degree of grease technology -  grease lubricant technology can extend the life and improve the performance of bearings.
5. High-grade steel ball - quiet and smooth high-speed rotation.
6. Using options in the ring, may allow installation error.

High Precision FBF KOYO Ball Bearing 569184 Thrust Ball Bearing 569184 Sizes 42050048mm
Heavy load 5691500F Thrust Ball Bearings
