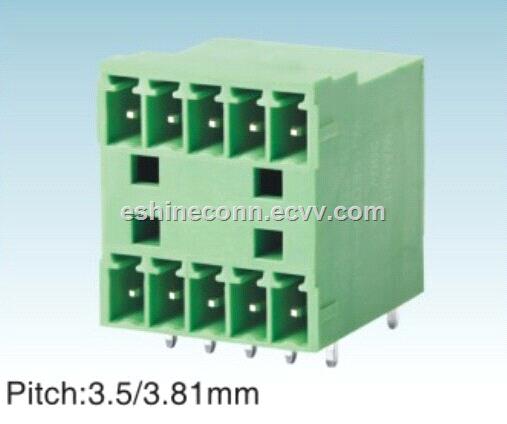

ES-15EDGRH VH-3.81mm Similar Phoenix 1842940 Header to Power Controllers
| FOB Price: | 0.05 - 1.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000,000 Piece(s) per Day |
| Shipping: | DHL,TNT,UPS,FEDEX,EMS by air |
| Payment Terms: | T/T, Western Union, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | PE Bag,Box |
Quick Details
- Type: PCB
- Conductor Size: 21 - 30 AWG
- Number of Contacts: 21 - 30
- Brand Name: Eshine,Molex,JST,JAE,Hirose
- Wire range: 21-30 AWG
- Model Number: ES-129V-2P-5.0
- color: green,blue
- Gender: Male and female
Specifications
ES-15EDGRH VH-3.81mm similar phoenix 1842940 header to Power controllers
Plug-in terminal blocks, provide the Wire size from 0.08mm2 to 16mm2. Available with different pitches from 2.5mm to 10.16mm. Choosing insert direction, contact direction, plug-in direction According to requests. the product is designed in accordance with IEC60998, IEC61984, UL1059, UL486E, CSA C22.2 No.158 standards. |
PCB universal screw terminal blocks, this typical feature of the screw connection system is characterized by the Easy connection and extremely high contact strengths. Provide the wire size from 0.08mm2 to 25mm2. Available with different pitches from 2.54mm to 15.0mm, and 3 wire insertion directions: 90°, 135°, 180°. the parts can be Assembled by 2 ways and 3 ways, with the design level structures from 1 level to 4. the product is designed in accordance with IEC60998, UL1059, UL486E, CSA C22.2 No.158 standards. |
Alternate Phoenix
|
|
Eurostyle Terminal Blocks
EuroStyle fixed-mount and pluggable Terminal blocks offer the most complete lineup of high-power, high-density, Customizable terminal blocks available with current ratings up to 115.0A
Pitch: 2.54mm,3.5mm,3.81mm,5.0mm,5.08mm,7.5mm,10.0mm
Features and Benefits
Rising cage pressure clamp termination
Compresses wire evenly providing a Secure contact without wire damage or intermittence
Combination slotted/posi-drive screw Heads
Improves transmission of torque for Greater wire retention
Staggered and vertically offset wiring Terminals
Easier wiring access
Rear barrier
Prevents over insertion of wire
Mounting flanges with large gussets
Accommodates panel mounting and prevents Bowing or flexure
APPLICATIONS:
Solar power
Appliances
Fire alarms / smoke detectors
HVAC equipment
AC drives
Audible/visual warning systems
Cellular base stations
Controller board
Digital process meters
Load control systems
Motor controls
Power controllers
Power converters
Power interface modules
Power monitoring devices
Gas and oxygen analyzers
