Pcd Turning Insert Grinder from China Manufacture

FOB Price:	1.00 - 30,000.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	WOODEN CASE

Quick Details

Weight: 2000kg
Brand Name: DEMINA
CNC or Not: CNC
Type: INSERT GRINDER
Condition: New
After-sales Service Provided: Engineers available to service machinery overseas
Dimension(L*W*H): 2100*1400*1750mm
Power(W): 3000
Voltage: 380V
Model Number: BT-150J

Specifications

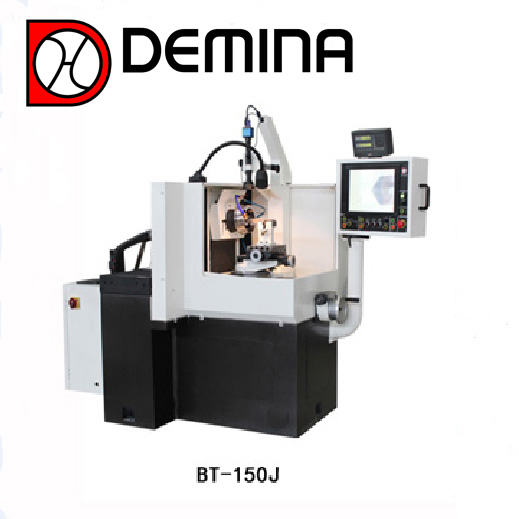

BT-150J PCD CBN Grinder

the market demand for PCD/CBN tool is increasing rapidly, and these tools are used predominantly in the industry, where tool with long life span is called for in conjunction with highly abrasive, non-ferrous material and wood. CBN tool can also be used in metal machine industry. PCD/CBN tool life is up to 500 times longer than carbide tools.
BT-150J PCD & CBNTool Grinderis reliable in performance and easy to be operated. It requests very little manual skill. the swinging of grinding wheel controlled by PLC is smooth and without reverse vibration. without wheel handles it is easy to control the swing range, frequency and swing position by pushing the button. the machine using 'rapid feed' and 'precision feed' to finish rapid feed/retraction (0.5mm/turn) and work feed (3mm/turn). this assures the production efficiency and feed precision.

Features:
1.Control of the grinding wheel oscillation with PLC, oscillation amplitude, location and frequency of adjustment on the panel;
2.Control feed with mechanical hand wheel, includes coarse feed and precision feed.
3. CCD image display with characterization.

Main Technical Parameters

pcd turning insert grinder from China manufacture

Note:
in order to facilitate users to operate the machine, we also provide the instruction and parts manual; three days at your facility for setup and training is excluded; one-year limited warranty.
Standard equipment mainly includes main machine; video optical CCD system with 100x zoom and 15 inch monitor; coolant system; 3 HP variable speed (500-4000 rpm) grinding spindle; tool base of travel 55 mm and height can be adjustable; diamond grinding wheel.
