Radin Electric Technology Co., Ltd.
China Manufacturer with main products: Automatic Transfer Switch, Auto Changeover Switch, Load Auto Changeover Switch, Control & Protective Switching Device, Motorized Automatic... |
Backup Generator Transfer Switch ATS Panel
| FOB Price: | 35.00 - 560.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Unit(s) per Month |
| Shipping: | Ningbo/Shanghai |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Standard Exporting Carton |
Quick Details
- Output Voltage: 110V-480V
- Input Voltage: 220V
- Output Type: Dual
- Output Power: 201 - 300W
- Brand Name: RADIN
- Output Current: 10A-1600A
- Output Frequency: 50-60Hz
- Model Number: RDS2
Specifications
Backup Generator Transfer Switch ATS Panel
about ATS
NEW FEATURES:
1, the patented designed RDS2 series now is upgraded up to 1600A.
2, DC12V/24V controlled ATS now is available, it can be work with DSE or other brand controller with ATS function.
RDS2 series Auto changeover switch mainly used for distribution or electromotor network under 50Hz, rated voltage 380V, rated DC voltage 220V, and rated current 16A to 3200A, change over between main power and backup power, mutual work as backup power system and city power and Generator power. At the same time, it can act as disconnector for the un-frequency ON and off circuit or lines.
Such product are widely used in the power transmission and distribution system and atomization system of important site which power off is not allowed, such as fire-fighting, hospital, bank, high buildings etc.

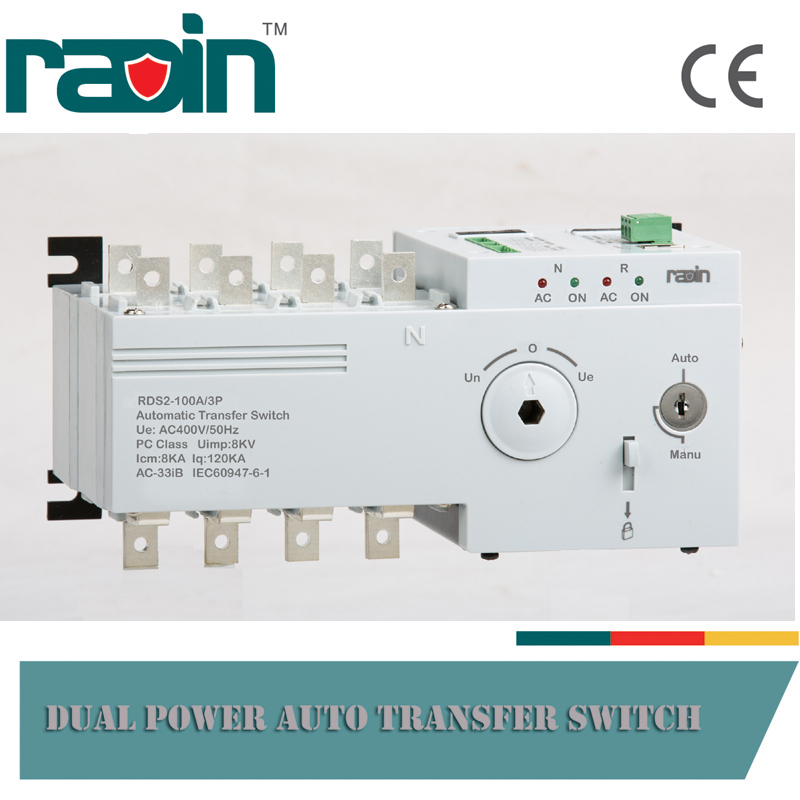

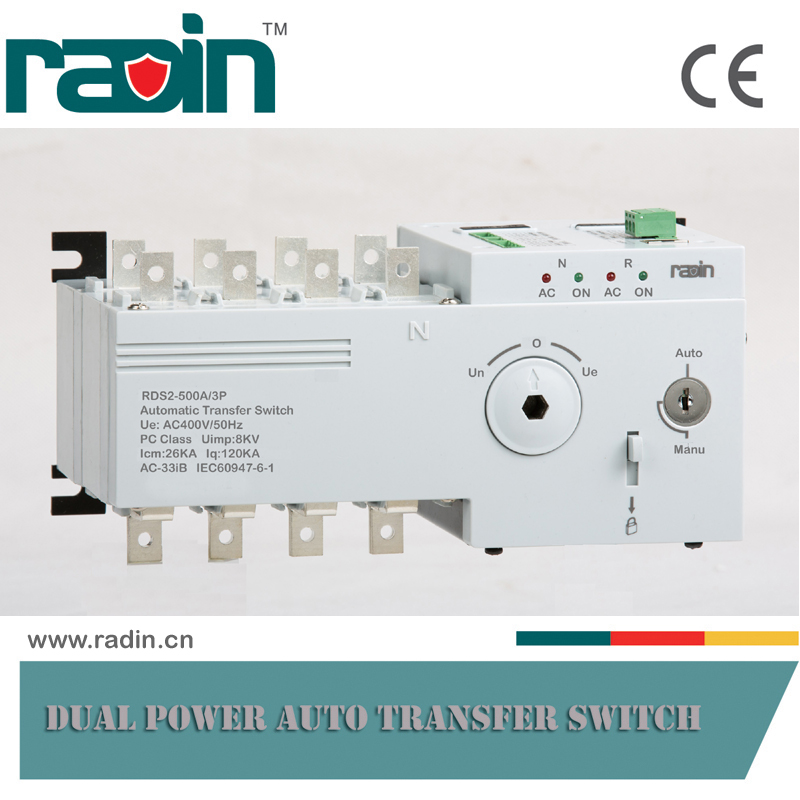

RDS2 Auto Transfer Switch Equipment (ATSE), is integrate the switch and logical control together, no need extra controller, is an electromechanical integration auto transfer switch, with voltage monitoring, frequency monitoring, communication port, electrical and mechanical interlock functions etc., can achieve auto control, remote motor control and emergency manual control. Operation is achieve by logical control board with various logical commands to managing the motor, gear-box running, motor with spring energy storage, instant release accelerating mechanism, quickly open and close the circuit or make quick transferring, through visible status to make sure the safety isolation, greatly improved the every electrical and mechanical performance.
RDS2 ATS integral designed with metal case, compact and strong.
RDS2 ATS, the control part is with metal cover, switch part with DMC case, have strong dielectric performance, protection performance and reliable operation safety.
the switch suitable for auto transfer between main power and backup power system or two load equipment's auto transfer and safe isolation etc.
the switch has beautiful appearance, novelty, small size, complete functions, is the best choose among the similar products.
RDS2 series product have passed the EMC test.
RDS2 Advantages:It adopted double complex contact/ horizontal pulling mechanism/micro motor energy pre storage and micro-computer control technology, basically come to Zero arc ( no arcing chamber);
Adopted reliable mechanical interlock and electric interlock, executive unit adopt independent load disconnect switch, it makes more reliable and safety;
Adopt "Zero Position" technology, it can force to set to Zero Position under emergency situation ( cutoff two way power supply, meet the fire linkage requirements;
Load disconnect switch change over adopt singleness motor drive, switch over smooth and reliable, no noise, little impact;
the driving motor have instant current across only under the load disconnect switch change over, stable working status no need to provide the working current, outstanding energy saving.
Executive load disconnect switch have mechanical interlock, make sure the Normal power and Reserve Power working reliable and no interference;
Distinct on and off position indicator, padlock function etc., make reliable and safe isolation between power supply and loading.
High security, high automatization, high reliability, working life more than 8000 times;
Electromechanical integration design, accuracy change over, flexible, smoothly, adopt international advanced logical control technology, high anti-interference ability, no interference outward.
Have main power on, backup power off; main power off, backup power on; main and backup power off; three working mode (I-o-II);
Easy installation, control circuit adopt plug type terminal connection
Four operating functions: Emergency manual, motor remote control, emergency off under auto control status, auto control operation.
Basic Type Switch Control Characteristic
Suitable for two way main and backup power system, auto transfer with auto recovery;
Can expand functions by outer connection;
Auto, Remote, Manual control functions;
Delay 0.5s signal detect, avoid miss actuation;
under Auto control status have "O" position remote control;
Can with RS-485 communication port ( optional), according to customer required.
