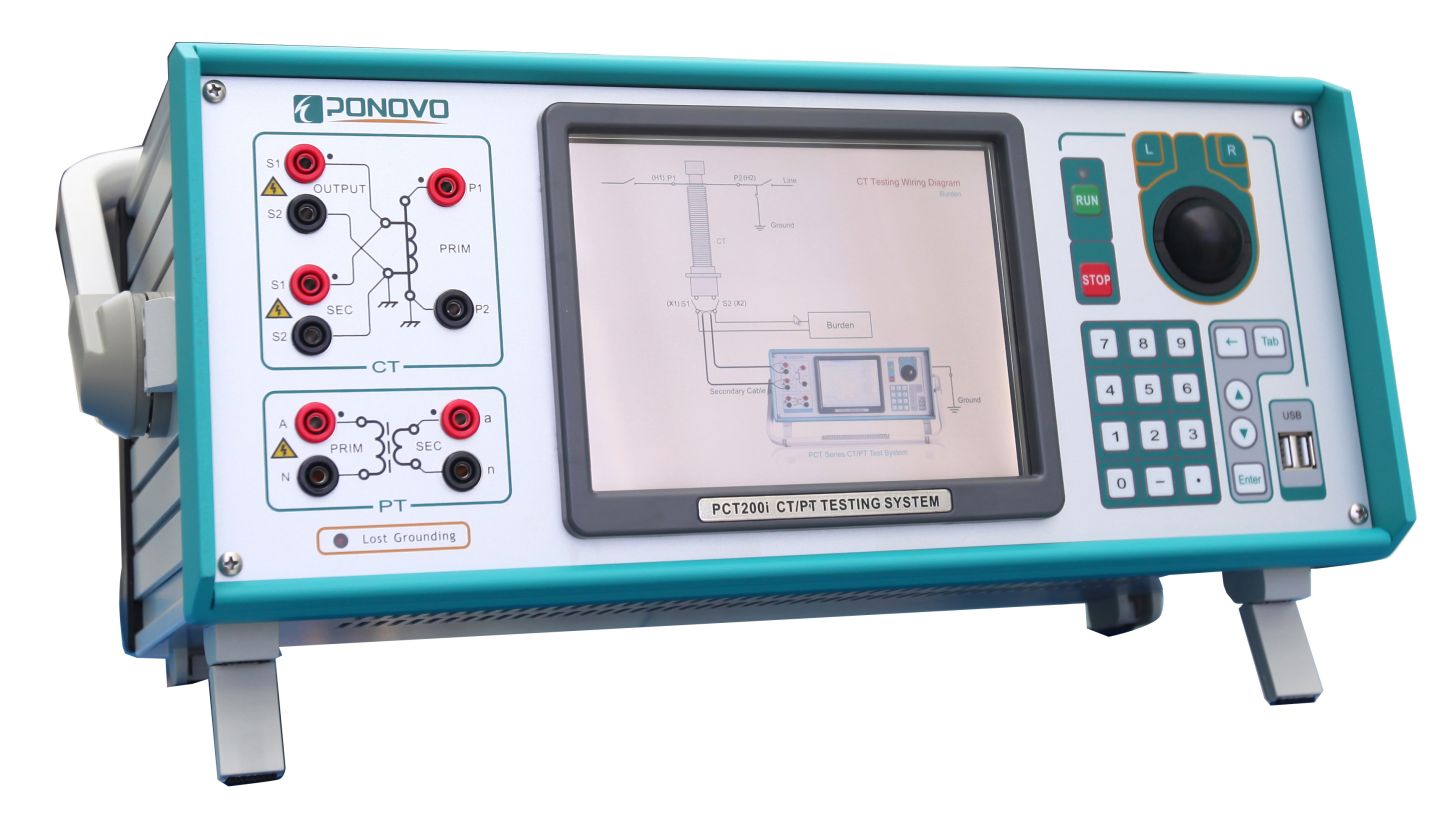

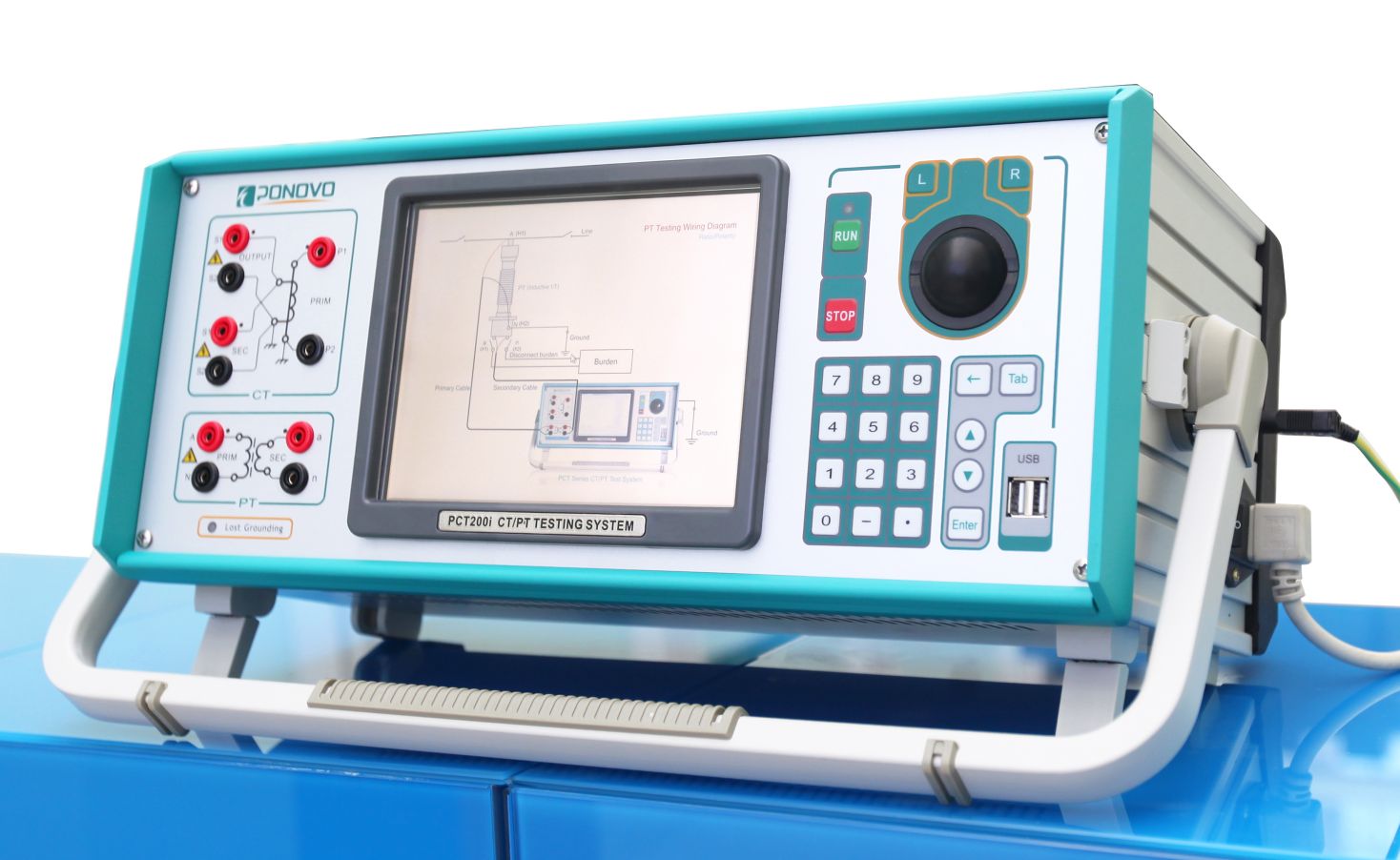

Ponovo PCT200i CT & PT Test Set for Current Transformer & PT Reference Testing Functions

FOB Price:	1.00 - 30000.00 USD/Set
Shipping:	By air
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Carton

Quick Details

Usage: Universal Testing Machine
Power: Electronic
Brand Name: PONOVO
Warranty: 12 months
weight: 10KG
Model Number: PCT200i/PCT200Ai
Certification: CE,ISO
COLOR: Gray-white
Lead time: 2-4 WEEKS

Specifications

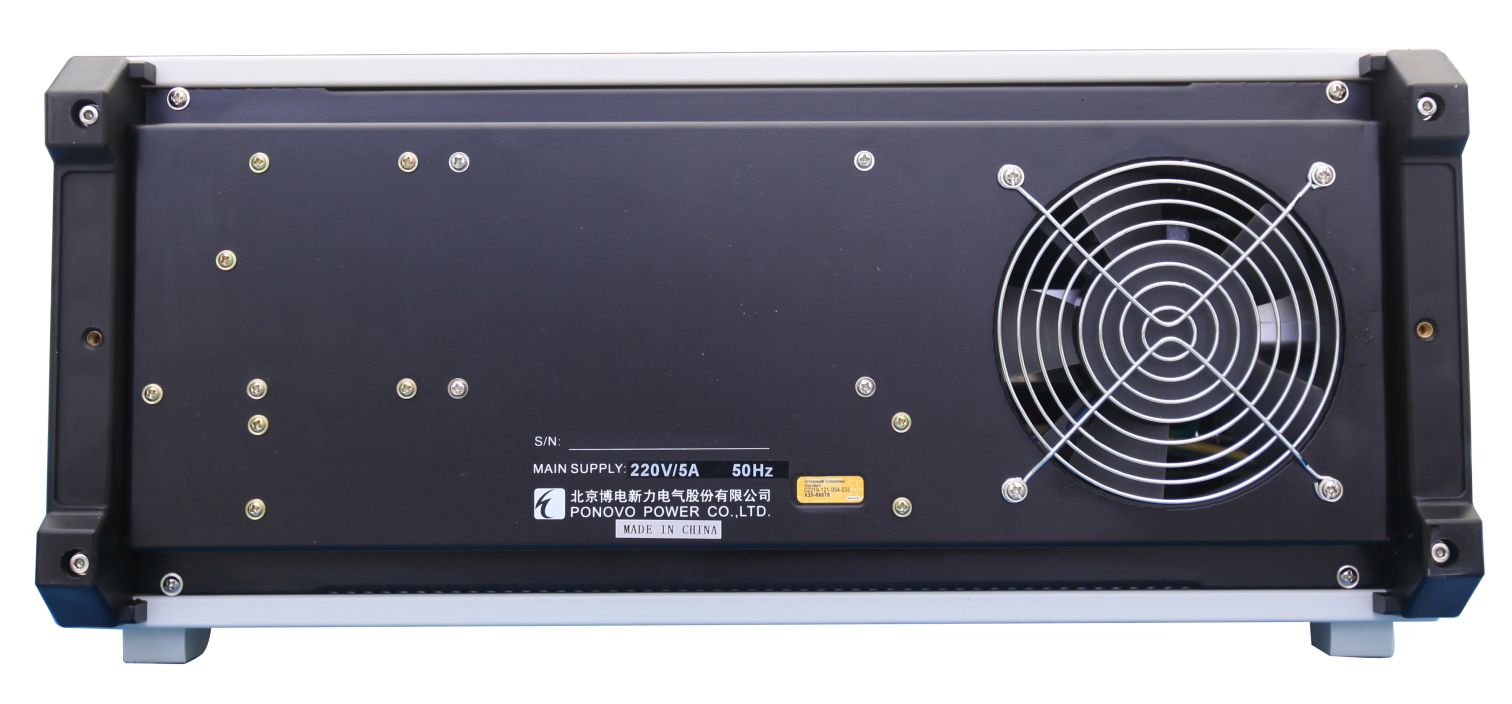

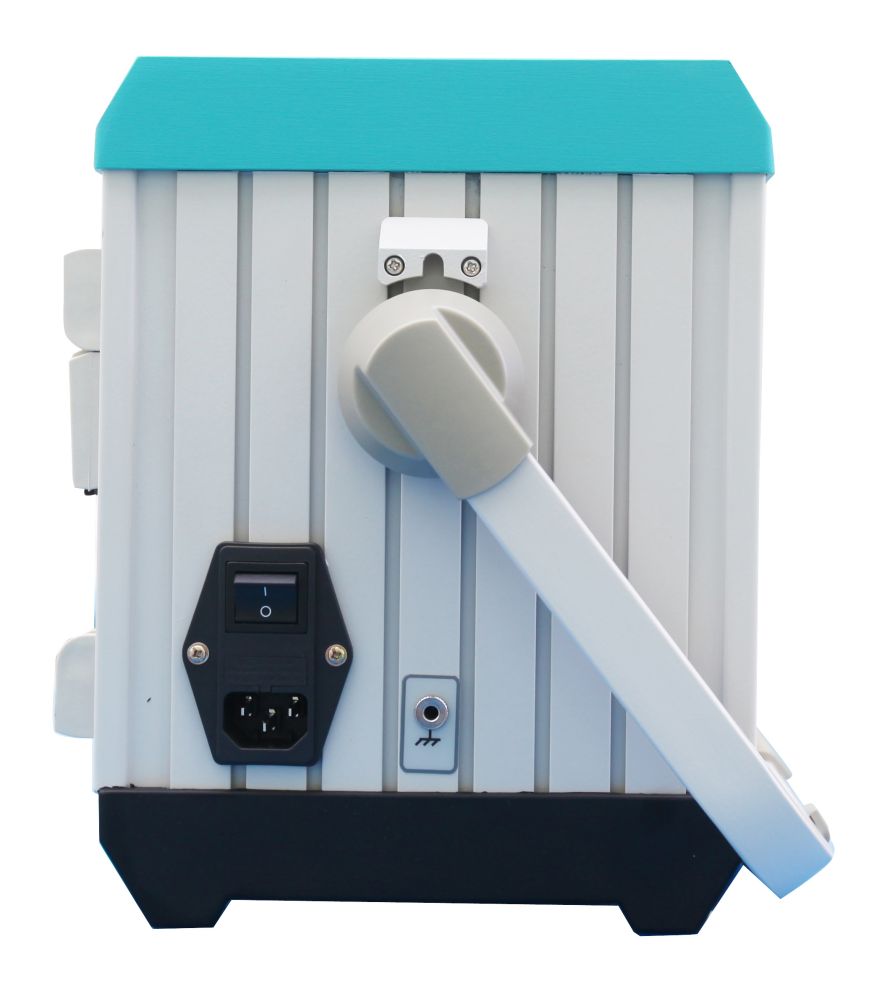

Ponovo PCT200i CT/PT Test System
PCT200 series CT/PT test set (CT Analyzer) is a current transformer test equipment

Specially designed for current transformer characteristic test and plus PT reference

Testing functions. There are two models, PCT200i and PCT200Ai. PCT200Ai has higher

Accuracy than PCT200i. Within builtin testing software based on Windows system in

Its local screen, PCT200 series are the test tool to finalize all the current transformer testing
without laptop control. and the reports can be managed and analyzed on PC and converted to multiresults reports in excel format.

PCT200 series CT and PT test set for current transformer and PT reference testing functions

Product Features

1.Can test M/P/TP type, bushing and GIS type CT

2.Ratio check up to 30000:1 and 45000:5

3.Knee point/Excitation Test check up to 45000V

4.More than 100,000 reports can be saved in its local storage, and support report software used
on the kit and on PC for managing and analyzing the reports

5.Standards: IEC600441/6, IEC618692, ANSI/IEEE C57.13, IS2705

6.Guess nameplate function

7.Results saved in Excel format

8.Report can be transferred to flash disk via USB port and view and print the report on a PC

9.Report could be customizable

10.Local sunlight readable LCD display, 8.4inch screen, within builtin Windows 7 system

11.Weight: 10kg/14kg

Various CT can be test

PCT200 series can test various CT, including transmission line CT, delta connection transformer, star connection

Transformer, CT with tapping, bushing type CT which requires large power output capacity, GIS type CT whose

Primary side length is long and requires large power output capacity, etc.

Following PT tests can be done automatically

Polarity
Excitation

Ratio

Burden

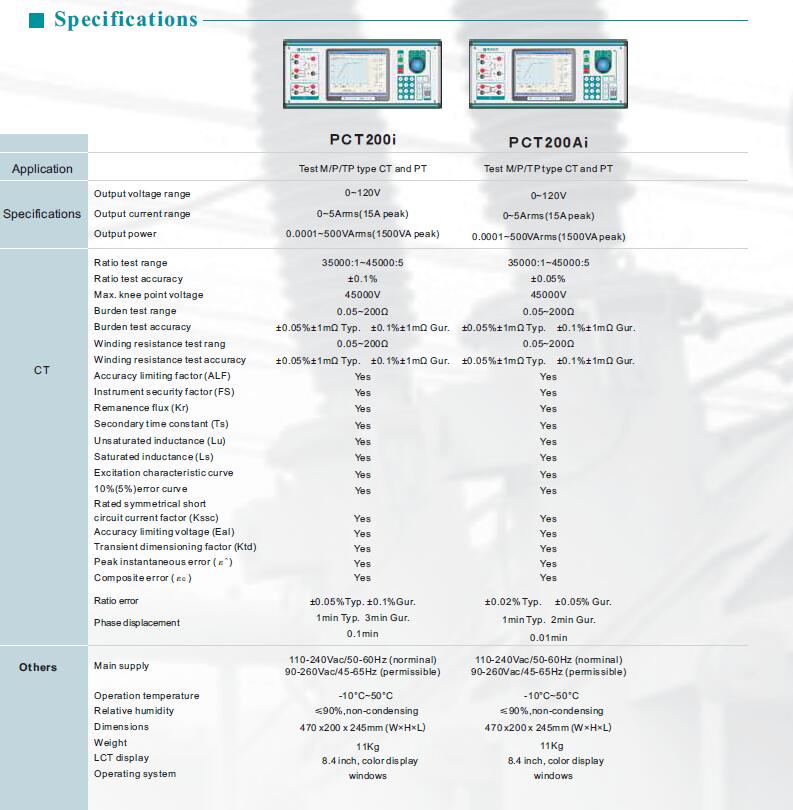

Main Specifications

Voltage output	0-120V
Current output	0~5Arms(15A peak)
Ratio check
Range	30,000:1 - 45,000:5
Accuracy	0.1%
Knee point check	Max. 45,000V
Burden measurement
Range	0.05-200Ω
Accuracy	±0.1%±1mΩ Gur
Winding resistance test
Range	0.05-200Ω
Accuracy	±0.1%±1mΩ Gur
Phase displacement check
Accuracy	3 min Typ
Resolution	0.1 min
Other test functions
Accuracy limiting factor	Yes
Instrument security factor	Yes
Remanence flux	Yes
Secondary time constant	Yes
Unsaturated inductance	Yes
Saturated inductance	Yes
Symmetrical short circuit factor	Yes
Accuracy limiting voltage	Yes
Transient dimensioning factor	Yes
Peak instantaneous error	Yes
Composite error	Yes
Dimensioins	470200245mm (WHL)
Weight	10kg/14kg
