Ponovo Power Co., Ltd.
China Manufacturer with main products: Protection Relay Tester, CT/PT Primary Injection and Testing, Universal Calibrator, Real Time Simulation Amplifier, Power Amplifier, Single... |
Home
>Products Catalog > Protection and relay testing > Ponovo L336i SUPER-LIGHT Protection Relay Test Set
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Carton |
Quick Details
- Usage: Auto Testing Machine
- Power: Electronic
- Brand Name: PONOVO
- Warranty: 12month
- weight: 8.6kg
- Model Number: L336i/L336i-E
- Display Type: Analog and Digital
- Weight: 8.6
- Warranty: 12 months
- Certification: CE,ISO
- COLOR: Gray-white
- Lead time: 2-4 WEEKS
- Range: 6*15A / 3*30A / 1*60A
Specifications

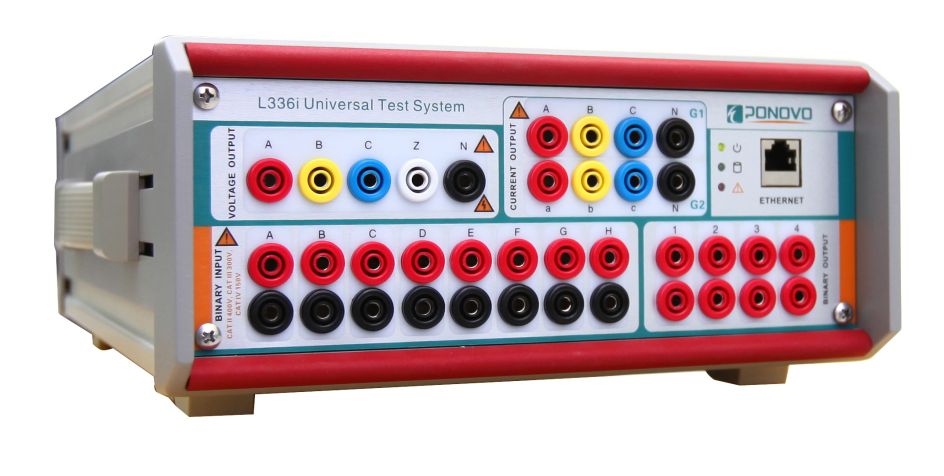

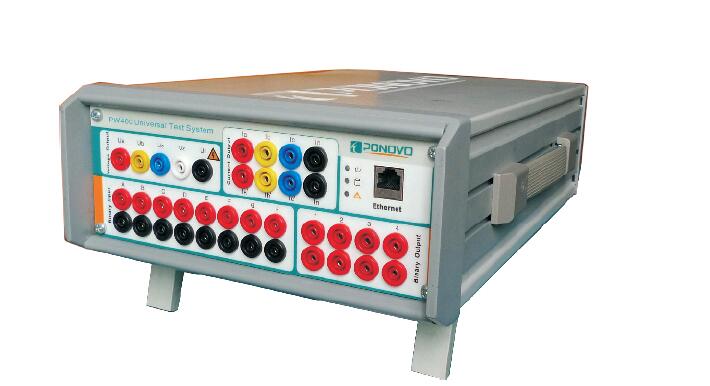

Ponovo L336i SUPER-LIGHT Protection Relay Test Set
New Light Weight Relay Testing Equipment
New Light Weight Relay Testing Equipment
We are proud to announce the new L336i relay testing system which is
the lightest in weight and the smallest in size in the world!
Equipment More options for different testing requirement
Standard VersionL336i: 615A, 4300V
Economic VersionL336iE: 320A, 4300V
Features
.Light weight with only 8.6kg, 1/3 of the weight of traditional testing system
.Tracing the signal generation with digital technology
.Stable signal output with high accuracy
.Binary inputs with adjustable threshold
.Use LAN port for connecting to external PC
.Use powerful PowerTest software with ready test modules, realizing the maximum control flexibility over test process
.Can be upgraded to support the test of IEC61850 compatible relay
.Can support wireless control by smart phone APP (both IOS and Android) for testing relays

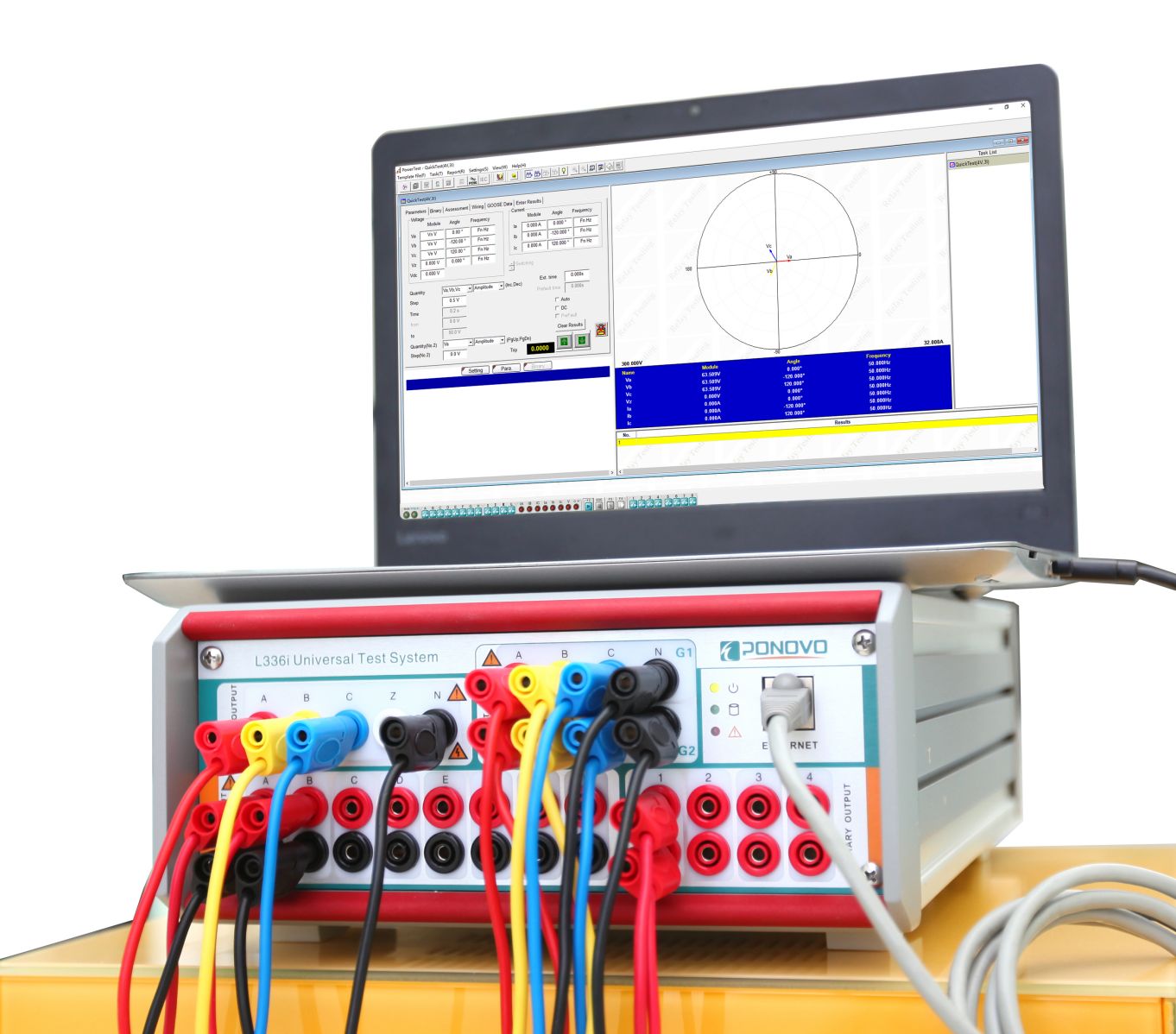

RealTime Outputs Display
Realtime output waveform display helps the fast
Troubleshooting of wiring and test circuitry before test
Actual started.
User can also use this provision to analyze the external
Signals, such as phase angle, power, harmonic, etc.

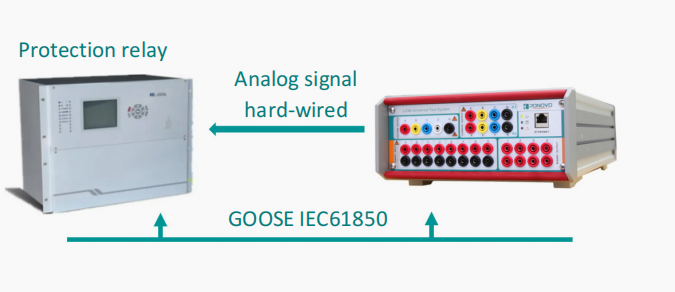

IEC 61850 Function
L336i and L336iE provides analog
Voltage/current signal to relay and the
GOOSE message from relay is received and
Analyzed by relay test set
