Ponovo TD4000 High Voltage DC Current Test Set for Converter Stations
| FOB Price: | 1.00 - 20000.00 USD/Set |
|---|---|
| Shipping: | By air |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Beijing in China |
| Packaging Details: | Carton |
Quick Details
- Brand Name: PONOVO
- Warranty: 12 months
- Certification: CE
- COLOR: WHITE
- Lead time: 2-4 WEEKS
- Model Number: TD4000
- Output: 4000A for 8 hours
- generating rise time: <50ms at 4000A
Specifications
Description of PonovoTD4000 High Voltage DC Current Test Set for Converter Stations:
the TD4000 testing equipment consists of control unit and DC high current output unit. It outputs 4000A 0.1% high accuracy DC current used in HVDC convertor station and testing DC current transformer characteristics.
Features:

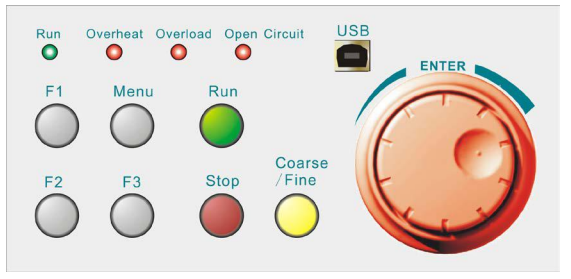

- Easy panel control with LCD display and rotary encoder
- Manual and auto test by software
- Output DC current waveform by USB port
- Multi high current connector for busbar
- for TD8000A, continuously output 8000A for 8 hours; generating rise time: <50ms@8000A
Main Specifications
TD4000A | |
Output Range |
0-4000A |
Port voltage |
Max 5V |
DC current output Accuracy |
0.1% |
Display Accuracy (rd) |
0.2% |
Display Accuracy (rg) |
0.05% |
Binary Input |
2 |
Binary Output |
1 |
Power Supply |
3380Vac, 22kVA |
Weight |
110 kg |
