Thb Bearings Co., Ltd.
China Manufacturer with main products: Ball Bearings, Ceramic Bearings, Needle Bearings, Stainless Steel Bearings, Tapered Roller Bearings, Custom Bearings |
High Precision Rotary Table Bearings
| Supply Ability: | 50,000 Piece(s) per Day |
|---|---|
| Shipping: | within 30day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | water-proof packing, single plywood case |
Quick Details
- Type: Other Type
- Seals Type: seals
- Outside Diameter: 385 mm
- Bore Size: 260 mm
- Brand Name: THB
- Type: YRT
- Model Number: YRT 260
- Gear Options: Nongeared
- Feature: Other
- width: 55mm
Specifications
the following example is for you reference.
1.Brief Introduction:

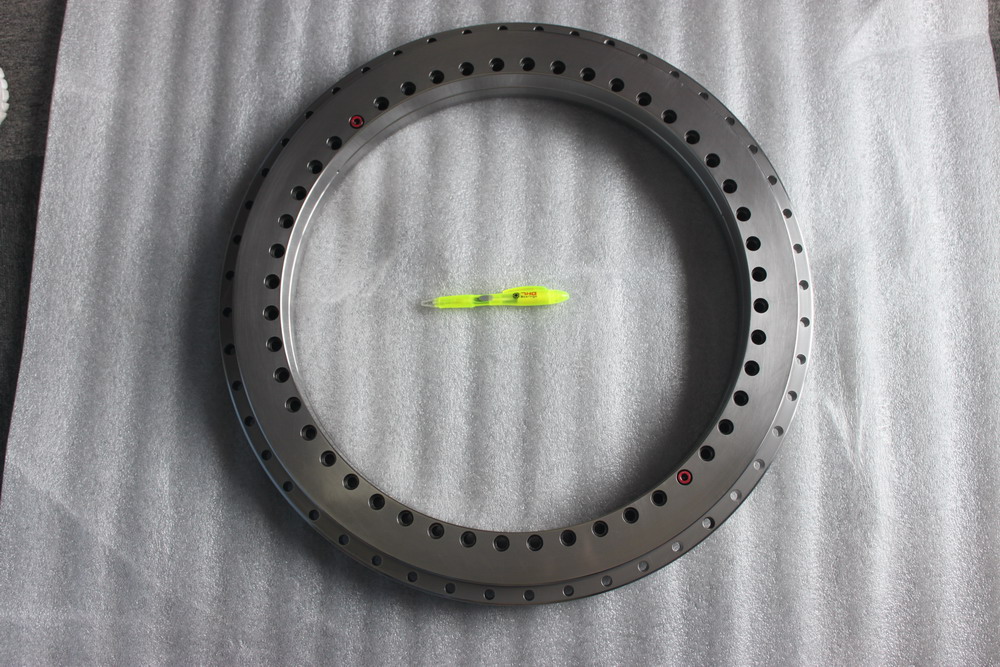

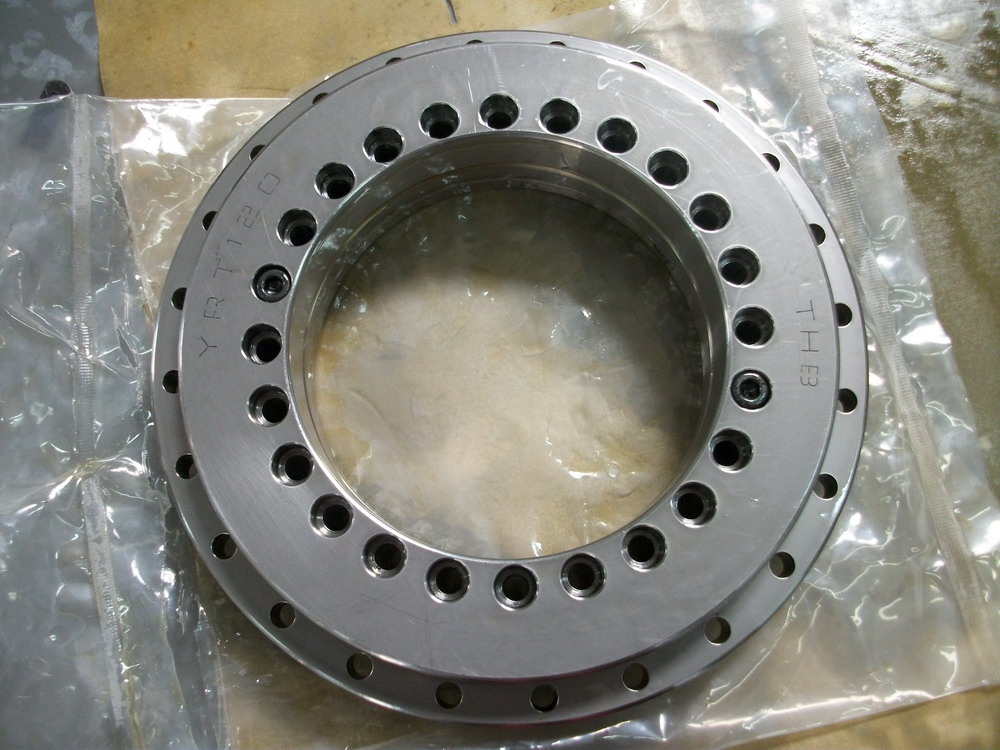

YRT260 High precision Rotary table bearings for indexing tables and swivel type milling heads

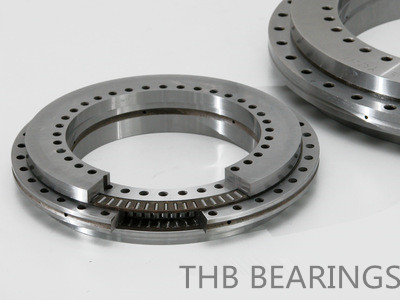

YRT bearings consists of thrust/radial housing Washer, a thrust/radial shaft, two Axial needle roller and cage assemblies and A group of radial cylindrical roller.2.Techincal parameters:
They Can support radial loads, axial loads from both sides and tilting moments without clearance and are particularly suitable for bearings arrangements with High requirements for running accuracy. Due to the fixing holes in the bearing Rings, the units are very easy to fit. The bearings are radially and axially Preloaded after fitting.
3.Performance features:
1. High precision: precision at P4, P2.
2. High rigidity: YRT series bearings are with preload.
3. High speed: YRTS series bearings can be applied in the high
Speed working condition.
4. Regular Stock list: YRT50, YRT80-TV, YRT100, YRT120, YRT150, YRT180, YRT200, YRT260, YRT325, YRT395, YRT460, YRT580, YRT650, YRT850, YRT950, YRT1030, YRT1200
