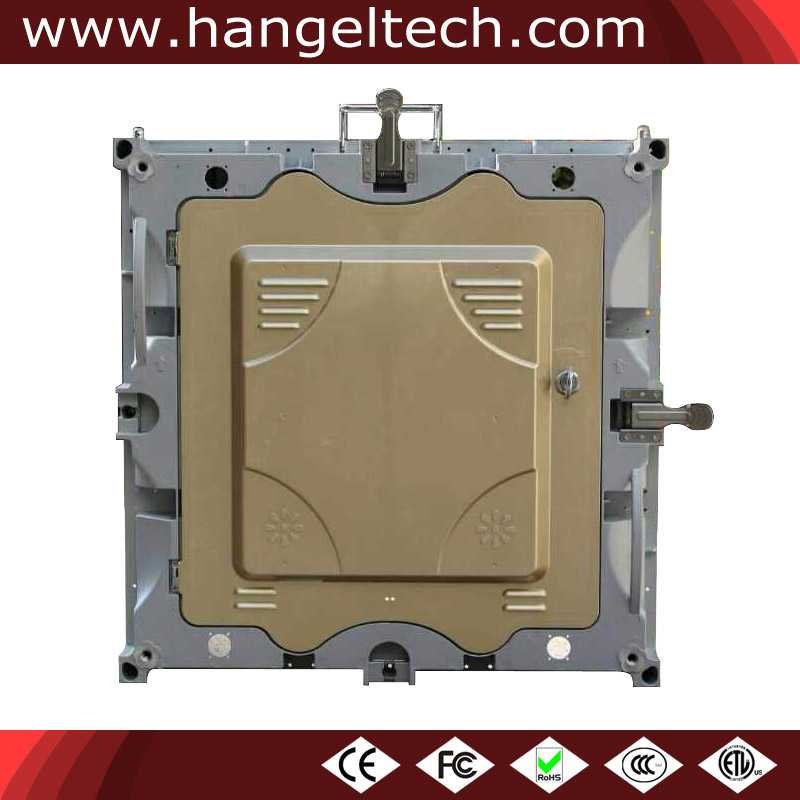

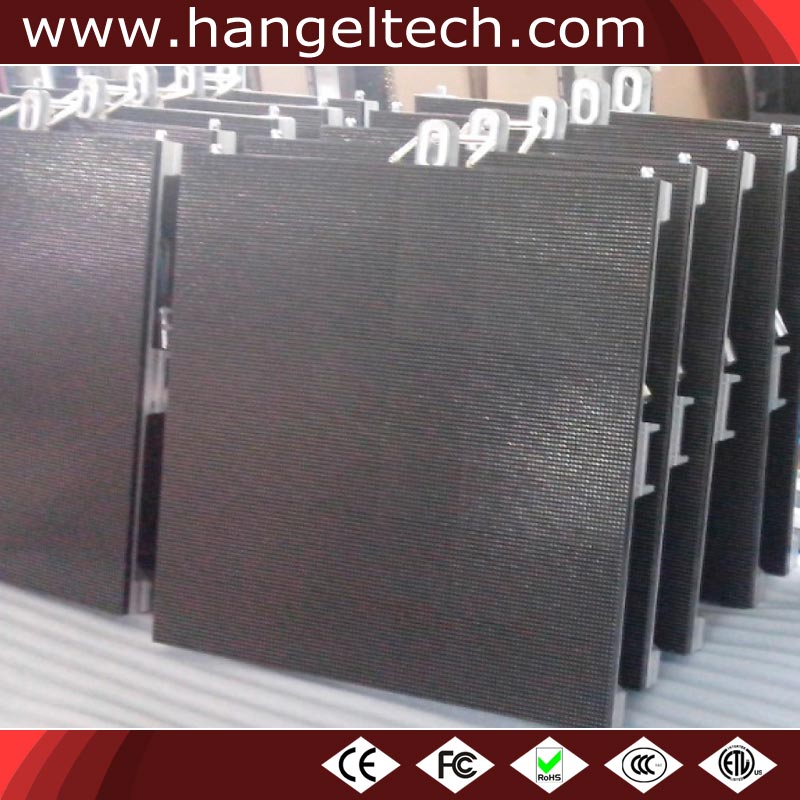

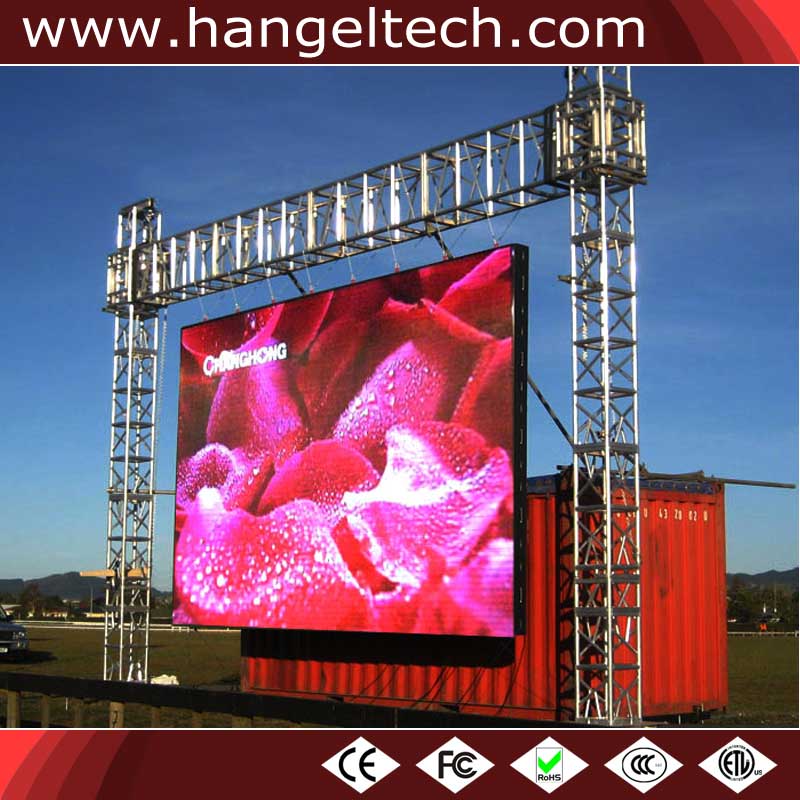

Outdoor Water Proof P8mm Rental LED Screen Display - 512x512mm Cabinet Unit

Supply Ability: 5,000 Square Meter(s) per Month
Shipping: Sea/Air Shipping, EXW, FOB, CIF, DDU, are all availale
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Safebuy
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Flight Case, 670 x 900 x 770mm, 8 units in 1 case

Quick Details

  • Pixels: 8mm
  • Display Function: Video
  • Tube Chip Color: Full Color
  • Usage: Outdoor
  • Brand Name: Hangel Tech
  • Screen Dimension: Customized
  • Model Number: HTF-ROD8mm
  • Cabinet Unit Dimension: 512 x 512mm
  • Cabinet Unit Resolution: 64 x 64 pixels
  • Cabinet Unit Weight: 9 KG/unit


Outdoor Water Proof P8mm Rental LED Screen Display - 512x512mm Cabinet Unit

Model No.

HTF-ROD8 SMD (DIP is also available)

Pixel Pitch


Pixel Density

15,625 dots/sqm

LED Tech

SMD3535, RGB 3 in 1

Module Size

256 x 128mm

Module Resolution

32 x 16 pixels

Cabinet Size

512x 512 x 80mm

Cabinet Frame

Lifting Cabinet

Cabinet Material

Die Casting Aluminum

Cabinet Resolution

64x 64Pixels

Cabinet Weight



7000Nits (CD/sqm), bright enough for outdoor facing sunlight

Brightness Controlling

Manual 256 levels, Auto 8 level

Driving Mode

1/4 scan, constant current driving

Refresh Rate

>1000 HZ

Frame Rate

60 HZ

Grey Scale

65536 level

Display Colors

10-bit colors

Viewing Distance

4 ~ 300 meters

Viewing Angle

Hor. 160; Ver. 160

Protection Grade

Front IP65; Back IP54, weather proof

Power Input

AC110V 60HZ / AC220V 50HZ, 10% more or less

Power Consumption

Max.1200w/sqm Aver. 400w/sqm

Working Temp.

-30 Celsius ~ +50 Celsius

Working Humi.

10% ~ 90%


Rear access, replace fault components

Signal Input

AV, S-Video, VGA, DVI, HDMI, SDI, DP (use Video Processor)

Controlling Distance

CATE 5 < 100 mts; SMF < 10 KM;

3G, 4G controlling no distance limitation


> 5000 Hours

LED Life Span

100,000 Hours

Outdoor Water Proof P8mm Rental LED Screen Display 512x512mm Cabinet Unit
Outdoor Water Proof P8mm Rental LED Screen Display 512x512mm Cabinet Unit

Q & A



Why should I choose this model, but not another one?



There are many advantages for the model HTF-ROD8mm.


  • 512 x 512mm modular unit, easy to be assembled as any required dimension;
  • Light body, only 9KG/unit. One person can manage the installation & dismantle. It saves much labor cost.
  • High contrast ratio and rich colors (281 trillion colors), present views amazing & stunning visual feast.
  • High brightness & water proof ensures that the screen can work well outdoors under sunlight.
  • Regular LED module, easy for maintenance.



Why should I buy it from you, but not from other vendors?



Hangel Technology and our team have been in the field of LED display over 7 years. We are focusing on LED display technology developing to supplying clients assured, relieved & considerate LED display solutions & services.


in these years, we are servicing for hundreds of customers & partners from over 50 countries & areas all over the world.


We are doing our job with rich-experienced production team, skillful workers & & considerate customer service staff.


from the moment you entrust the job to us, we are ready to supply you reliable products & considerate service.



What's the warranty for the screen?



We offer 2 years warranty to the LED display screen and enough spare parts in case there is some problem.


Actually, there are less problem on our products. for those products exported in 2010, we checked with our clients to know that most of them are still working well now.



for more information, pls contact us directly.
