Shenzhen Cheerglory Technology Co., Ltd.
China Manufacturer with main products: LED Flood Light, LED High Bay Light, LED Street Light, LED Tunnel Lights, LED Bulkhead Light, LED Ceiling Light, LED Downlight, ODM Lighting... |
Motion Sensor Waterproof LED Bulkhead Light
| Supply Ability: | 200,000 Piece(s) per Month |
|---|---|
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
Quick Details
- Item Type: Ceiling Lights
- Light Source: LED
- Brand Name: Cheerglory
- Certification: CE,RoHS
- Working Lifetime(Hour): 50000
- Lamp Power(W): 20
- LED Light Source: SMD
- Model Number: BKD20-250PS
- IP Rating: IP65
- Lamp Body Material: Aluminum
- Color Temperature(CCT): Warm White
- CRI (Ra>): 70
- Lamp Luminous Efficiency(lm/w): 60
- Lamp Luminous Flux(lm): 1200
- Input Voltage(V): 85-265Vac
- Install Style: Surface Mounted
Specifications
Motion sensor waterproof LED bulkhead light
1, Model No: BKD20-250PS

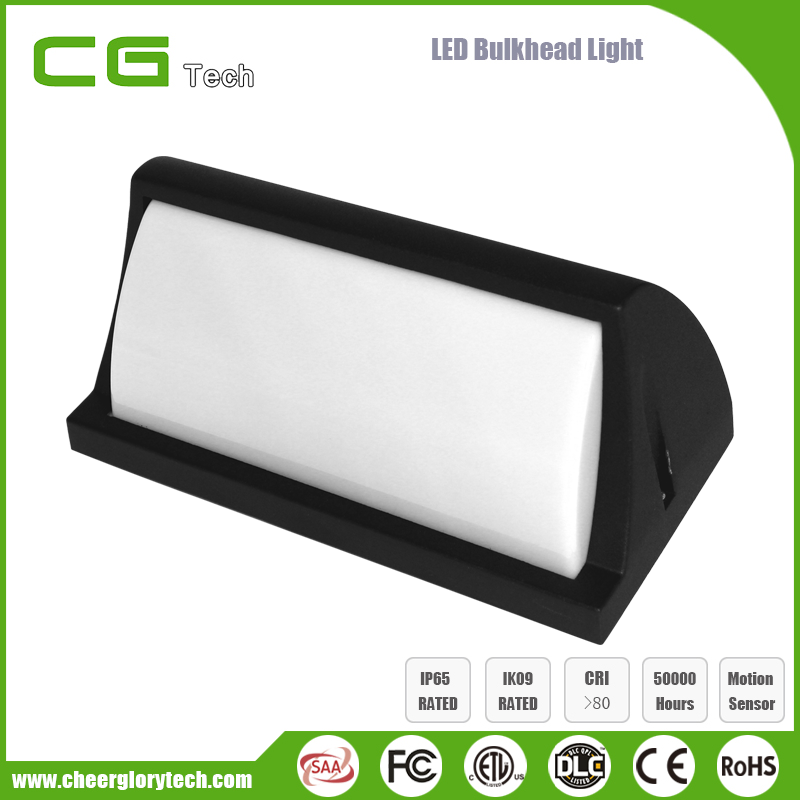

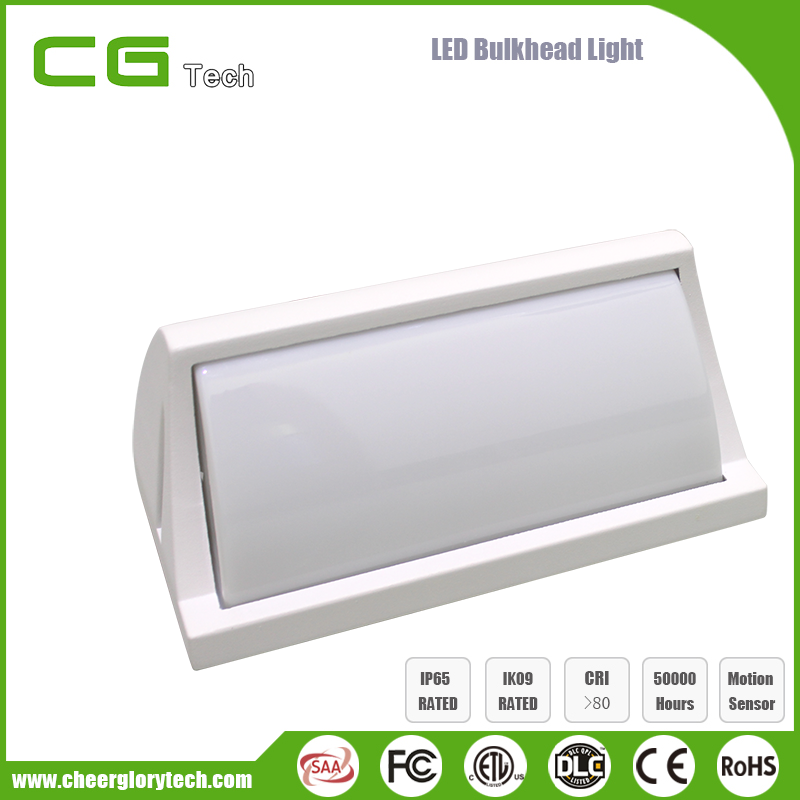

2,Product Picture:
3,Product Size:
4,Product Parameters:
4.1,Electricity Parameters:
NO |
Items |
Parameters |
1 |
Input Voltage |
85-265V 42-63HZ |
2 |
Input Current |
0.114A(230V) |
3 |
Power |
20W |
4 |
Output Voltage |
30V |
5 |
Output Current |
0.67A |
6 |
Power Factor |
>0.9PF |
7 |
Luminous Efficiency |
85% |
4.2,Optical Parameters:
NO |
Items |
Parameters |
1 |
Beam angel (H,V) |
115 |
2 |
Peak Light Intensity |
514CD |
3 |
Luminous Flux |
1000Lm |
4 |
Color Rendering Index |
75Ra |
5 |
Color Temperature |
2800-3200k /4000-4500k/5500-6000k |
4.3,Physical Parameters:
NO |
Items |
Parameters |
1 |
Working temperature |
-40 60 |
2 |
IP range |
IP65 |
3 |
N.W |
982g |
4 |
Size |
250*125*110mm |
5,Light Intensity Distribution Curve:
6,Packing:
No |
part |
size |
Parameter |
Picture |
1 |
Inner Packing |
Box Size |
260*135*120mm |
|
Weight |
1.1Kg | |||
2 |
Outer packing (12/case) |
Box Size |
530*280*375mm |
|
Total weight |
14Kg |
7,Attentions:
7.1,Take 2pcs 5*40mm screw to fix the lamp to the wall, take 2pcs 4*12mm screw to fix the lamp base and lamp cover.
7.2,Installation methods: with the tapping screws installed two holes of base to specified location( two holes are on the diagonal of base).
7.3,When fix the lamp body, drill a hole with 6mm-7mm on the wall, hammer into the expansion bolt. Screw through the screw hole of lamp body, screw in the expansion bolt. Installation over. See the picture:
