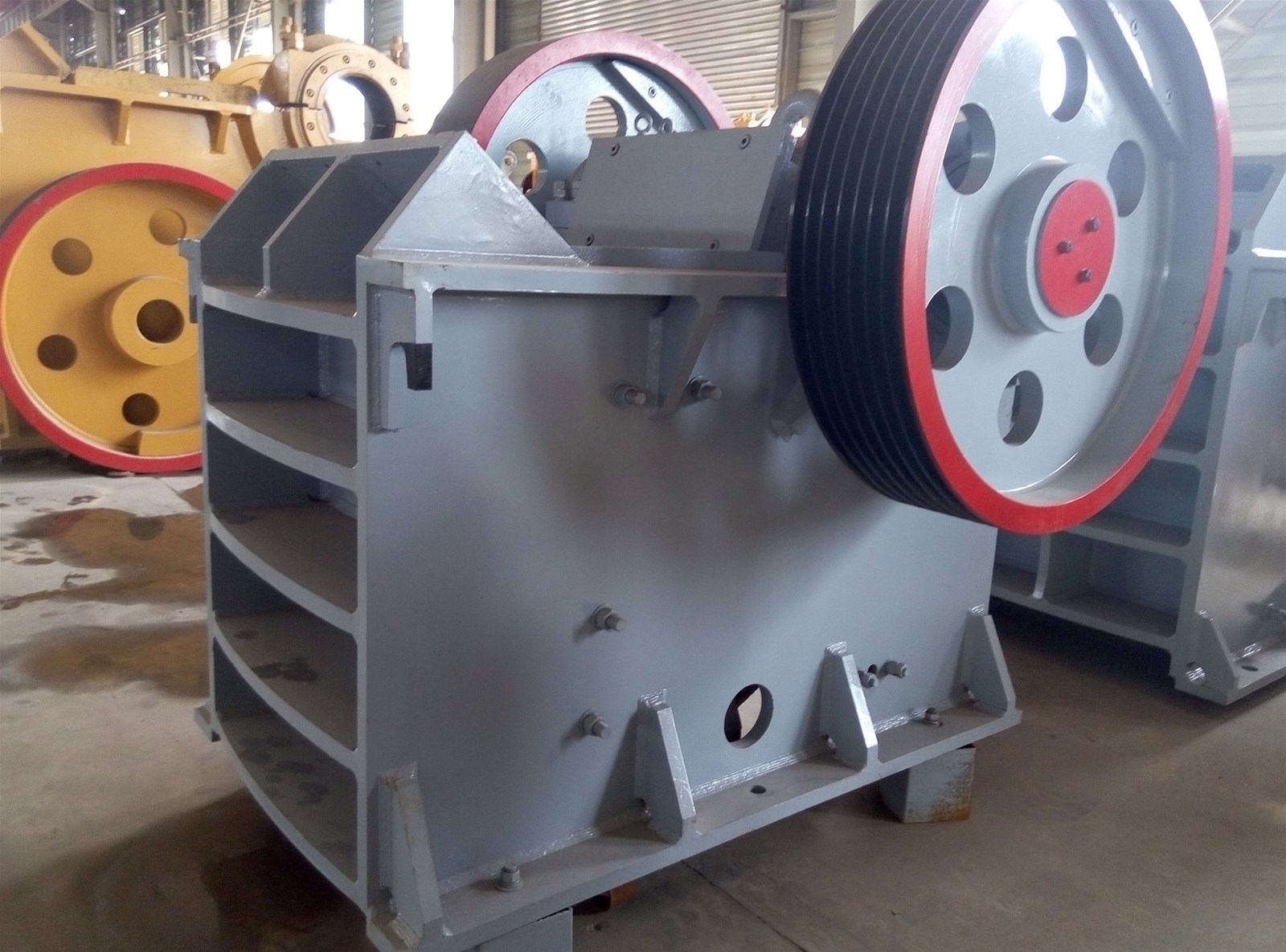

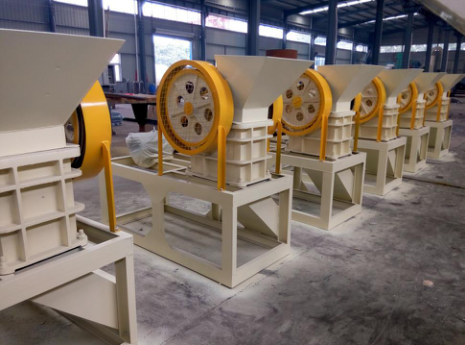

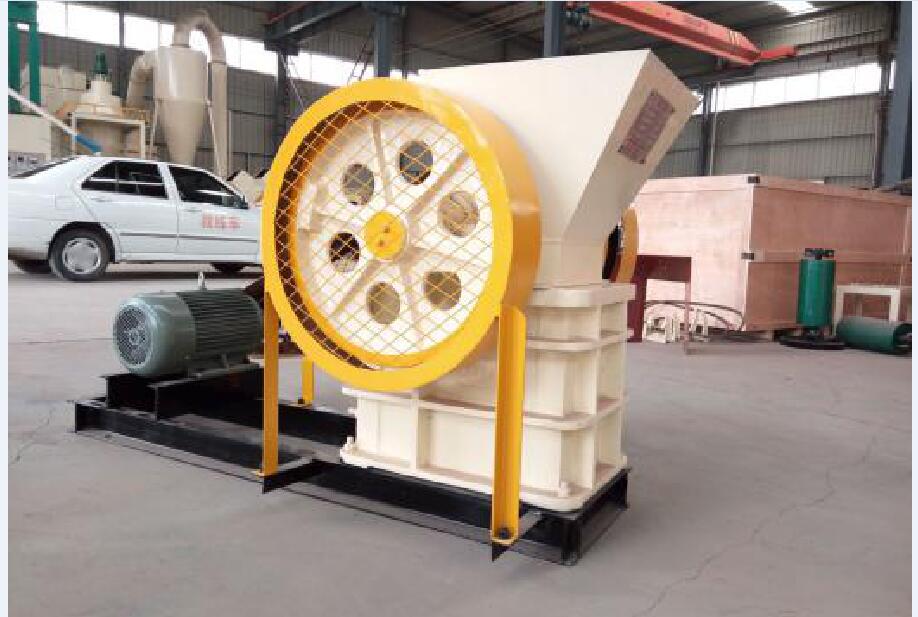

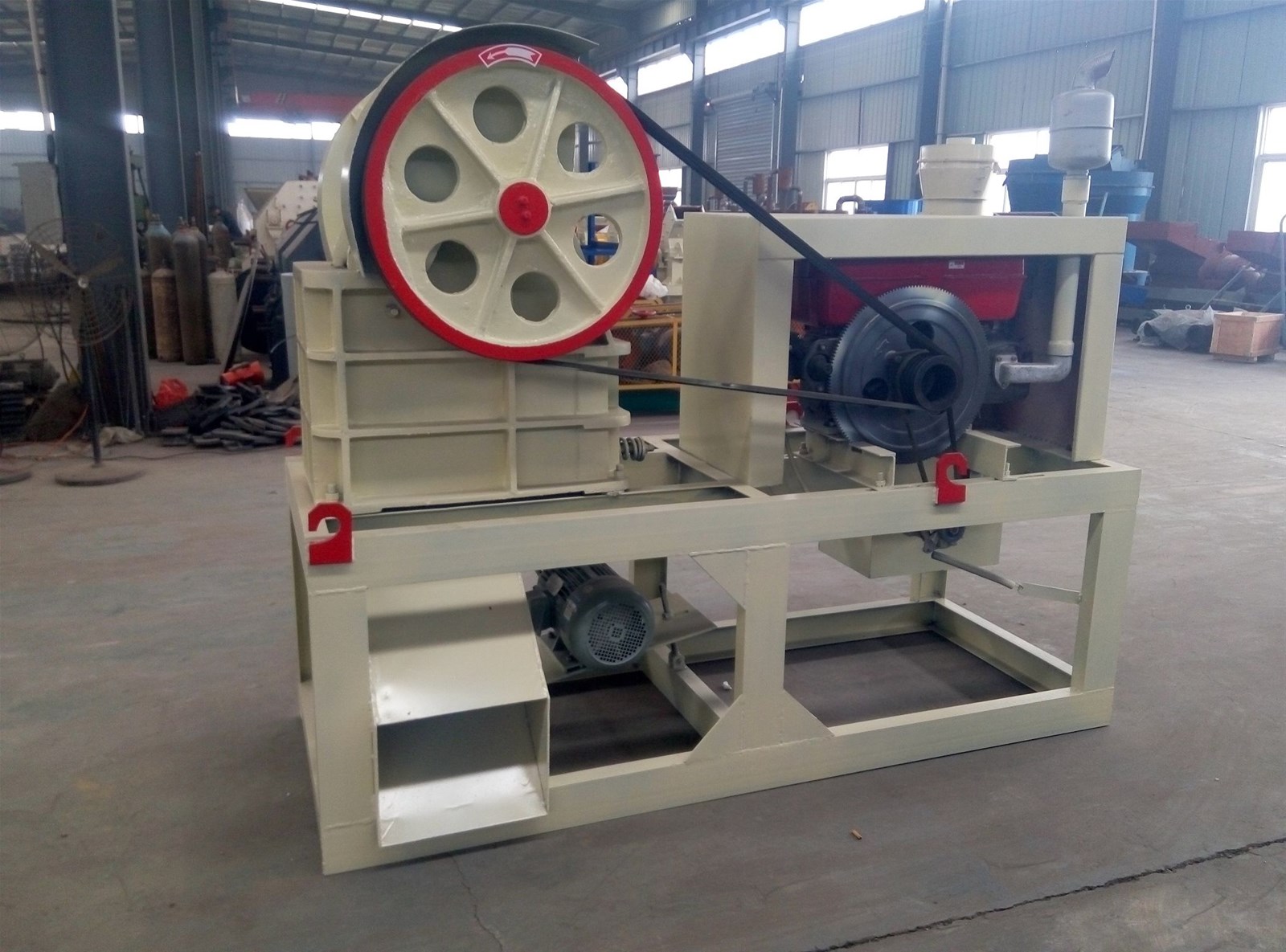

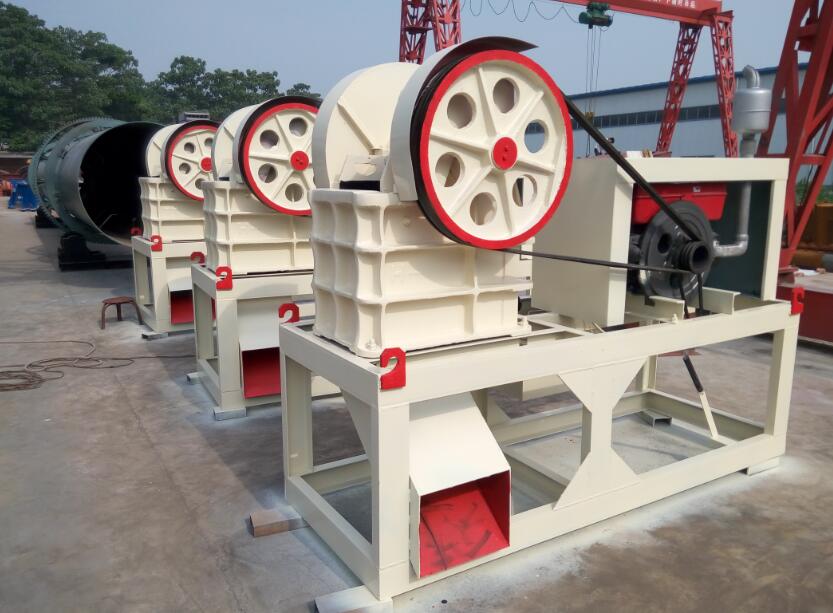

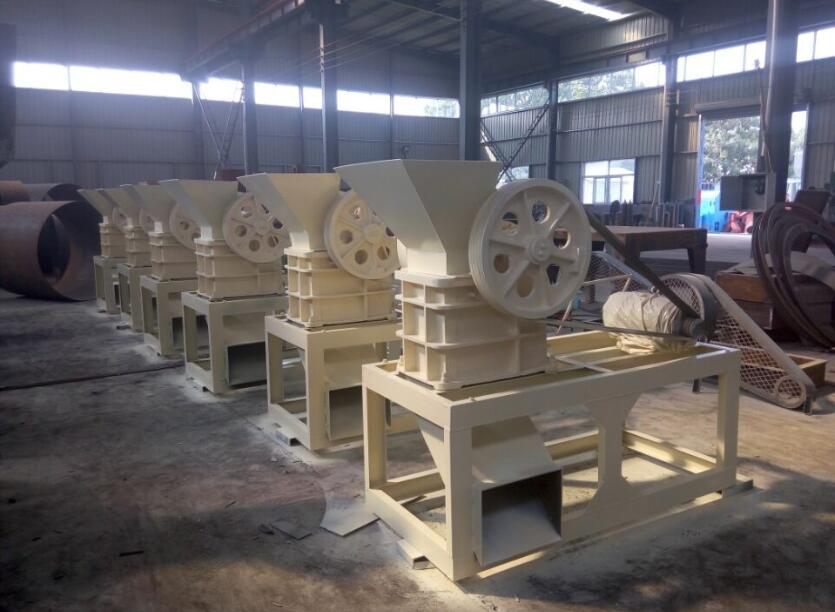

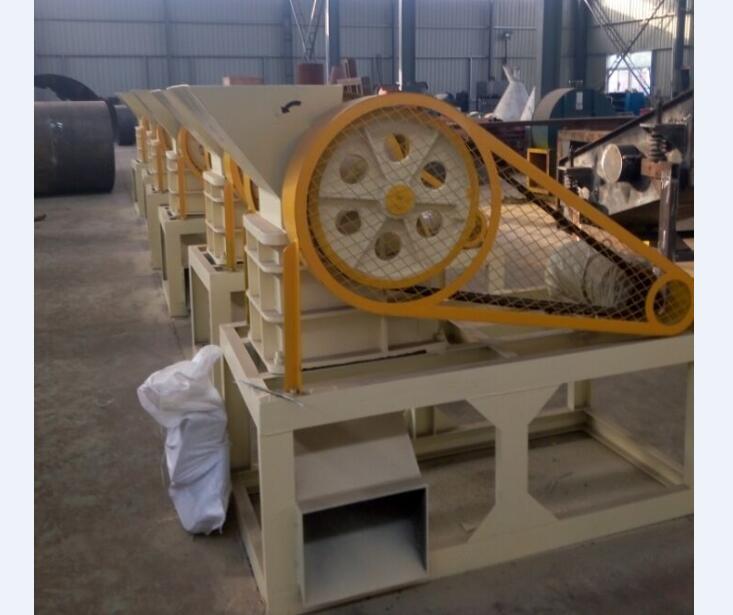

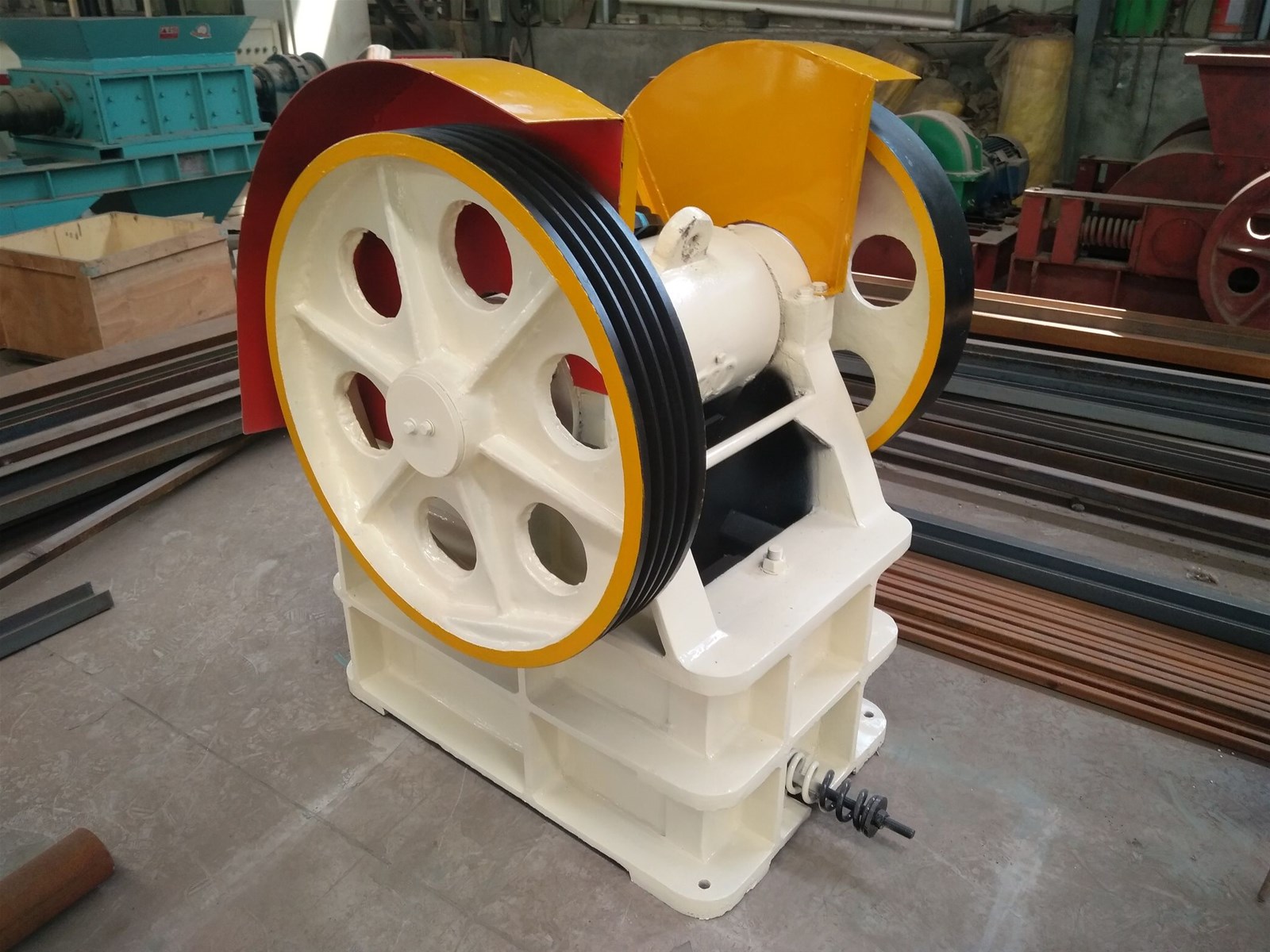

PE150x250 Mine Stone Rock Granite Jaw Crusher with Diesel Engine for Small Mine Plant
| Supply Ability: | 300 Unit(s) per Month |
|---|---|
| Shipping: | FOB QINGDAO , TIANJIN , SHANGHAI |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | as client requested |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 month
- Brand Name: HUAXING
- Motor Type: AC Motor
- Condition: New
- Certification: ISO 9001:2008
- Weight: 800KG
- Dimension(L*W*H): 1800x850x1650mm
- Model Number: PE150X250
- Capacity(t/h): 1-3TONS
- Power(W): 7.5KW
- Type: Jaw Crusher
- color: white
- max feeding size: 125mm
- discharge size: 10-40mm
- voltage: 380/220v ,50/60hz
Specifications
JAW Crusher Features
1.Deep crushing cavity and no dead time control have improved the feeding capability and the production output.
2.Large crushing ratio and even particle size.
3.the lubrication system more secure and reliable, the spare parts can be more changed, and low maintenance working.
4.Simple structure and reliable function, low operation cost
5.Energy-saving: the single machine can make the energy-saving about 20%~35% and the system energy-saving over one time.
6.Large range of the discharge opening range can satisfy the various requirements of the customers
7.Low noise and dust pollution.
8.Applicable material river gravel, granite, iron ore, limestone, quartz stone, diabase, construction waste, iron ore, gold etc.
9.Application area:
Sand and gravel yard, mining broken, coal mining broken, concrete mixing station, dry powder mortar, power plant desulfurization, etc.
Specifications:
type |
Feed opening size(mm) |
Max. Feed size(mm) |
Discharge adjustment range(mm) |
Capacity(m/h) |
Motor(kw) |
Rotating speed of main shaft(r/min) |
Weight (kg) |
Overall dimension(L*W*H)(mm) |
PEF150*250 |
150*250 |
125 |
10-40 |
1-3 |
7.5 |
285 |
700 |
922*745*933 |
PEF200*300 |
200*300 |
165 |
20-70 |
2-8 |
11 |
265 |
800 |
1056*1100*1200 |
PEF250*400 |
250*400 |
210 |
20-80 |
5-20 |
18.5 |
310 |
3000 |
1108*1142*1392 |
PEF400*600 |
400*600 |
340 |
40-90 |
10-40 |
30 |
275 |
7200 |
1700*1732*1392 |
PEF350*750 |
350*750 |
290 |
30-55 |
20-50 |
37 |
300 |
8900 |
1900*1806*1808 |
PEF500*750 |
500*750 |
425 |
50-100 |
34-68 |
55 |
275 |
11320 |
2050*1860*2145 |
PEF600*900 |
600*900 |
480 |
75-200 |
40-120 |
75 |
255 |
17600 |
2792*2168*2250 |
PEF750*1060 |
750*1060 |
630 |
80-200 |
80-160 |
90 |
250 |
30530 |
4180*2560*3070 |
PEF900*1200 |
900*1200 |
750 |
100-200 |
110-200 |
110 |
250 |
50000 |
5200*2900*3500 |
PEF1000*1200 |
1000*1200 |
850 |
195-265 |
315-500 |
110 |
200 |
55000 |
3480*2876*3330 |
PEF1200*1500 |
1200*1500 |
1020 |
150-300 |
400-800 |
160 |
180 |
100000 |
4200*3300*3500 |
PEX150*750 |
150*750 |
125 |
10-40 |
5-15 |
15 |
300 |
3600 |
1220*1480*1180 |
PEX250*1000 |
250*1000 |
210 |
15-55 |
10-32 |
30 |
300 |
7350 |
1580*1992*1380 |
PEX250*1200 |
250*1200 |
210 |
15-60 |
12-38 |
37 |
300 |
8700 |
1730*2192*1380 |
PEX300*1300 |
300*1300 |
250 |
20-90 |
16-65 |
55 |
300 |
11600 |
1930*2400*1747 |
