Outdoor P3 HD LED Display LED Video Wall both Fixed Installation & Event Rental from TalkLED

Supply Ability:	1,000 Square Meter(s) per Month
Payment Terms:	L/C, T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Carton with inner foam protection. 4 cabinets per carton, 83x41x47cm, 33.5kg/carton. Flight case package for rental projects, 5 cabinets per case, 77x43x45cm.

Quick Details

Pixels: 3.75mm
Display Function: Video
Tube Chip Color: Full Color
Usage: Outdoor
Brand Name: TalkLED
Screen Dimension: 360*720mm
Model Number: S-PH3.7FO
LED: SMD1921
Brightness: 5500nits
Refresh rate: 2880Hz
Matrix configuration: 96 x 192
Installation access: back access
Max power consumption: 247W/cabinet
Average power consumption: 74W/cabinet
Working voltgae: 90~240V wide range
Cabinet net weight: 7.5kg
Scan mode: 1/12 scan

Specifications

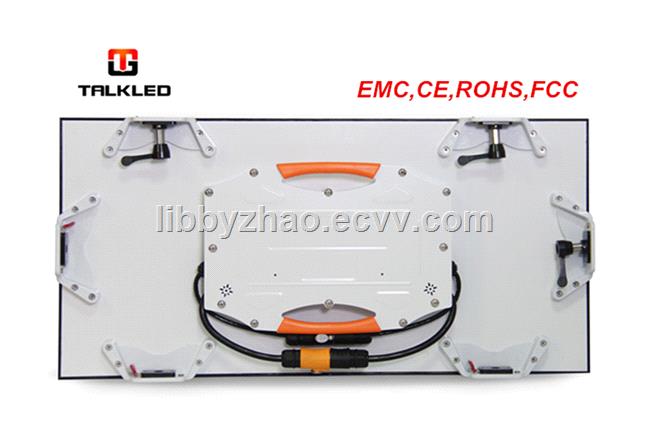

P3.75 Outdoor LED display with Aluminum Cabinet 360x720mm
EMC CE ROHS FCC Certified

Features:

Thin light aluminum cabinet 360x720mm.
Front service available.
High brightness LEDs, High refresh rate MBI IC driver with PWM.
4-layers thick PCB board, more durable.
IP66 waterproof, ok to work underwater.
Special perfect ventillation without fan inside cabinet.
High quality slim power supply.
Easy installation and maintenance.

Parameters / Product Model	S-PH3.75FO
Working Environment	Outdoor
Pixel Pitch (mm)	3.75mm
Pixel Configuration	SMD1921
Pixel Matrix per panel	96192
Panel Dimensions (HXW) (mm)	360720mm
Panel Material	Aluminum
Panel IP Rating (Front and Rear)	IP66/IP66
Panel Weight (kgs/PC)	7.5kg
Panel Thickness	60mm
Panel Installation type	Fixed
Installation Access	Back Access
Color Grayscale (Bit)	16
Gray Scale per Color (level)	65536
Refresh Rate (Hz)	2880Hz
Driving Type	1/12 scan
Monitoring and Detection	Power Status, Receiving card Status, Temperature, Humidity, Moisture, etc
Signal Transmission Distance (m)	CAT5 Cable: <100 m; Single mode Fiber: <10 km
Brightness (CD/)	6500
Calibration	Brightness Calibration and Chromatic Calibration
Optimal Horizontal Viewing Angle ()	140
Optimal Vertical Viewing Angle ()	120
AC Input Voltage (V)	90~240V
AC Input Frequency (Hz)	50/60Hz
MAX power Consumption (W/Panel)	247W
Average power Consumptio (W/Panel)	74W
Storage Temperature ()	40 ~60
Operating Temperature ()	40 ~60
Storage Humidity (RH)	10%~95%
Operating Humidity (RH)	10%~95%
Lifetime Typical Value (hrs)	100000

Package:

Carton with inner foam protection.
4 cabinets per carton, 83x41x47cm, 33.5kg/carton.
Flight case package for rental projects, 5 cabinets per case, 77x43x45cm.
