Home  >Products Catalog > High Speed 1325 Wood Cutting Machine, Wood Processing Machine Price

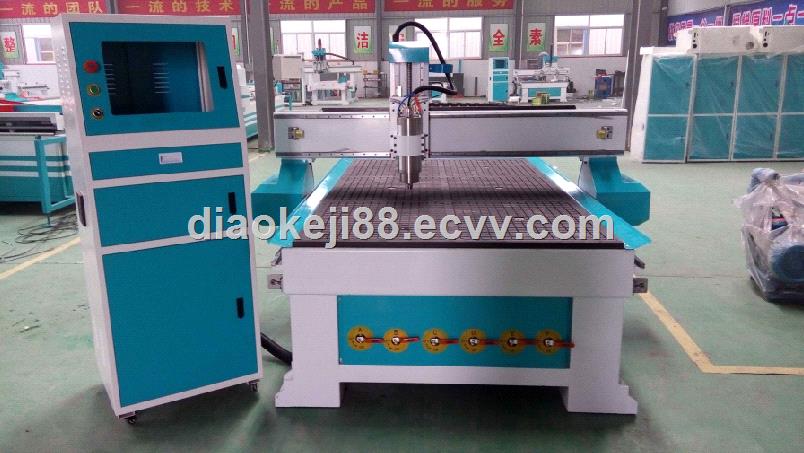

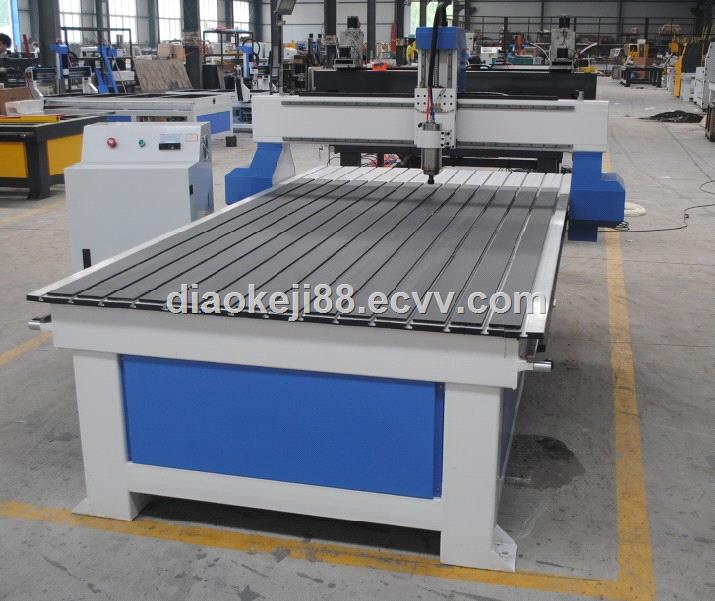

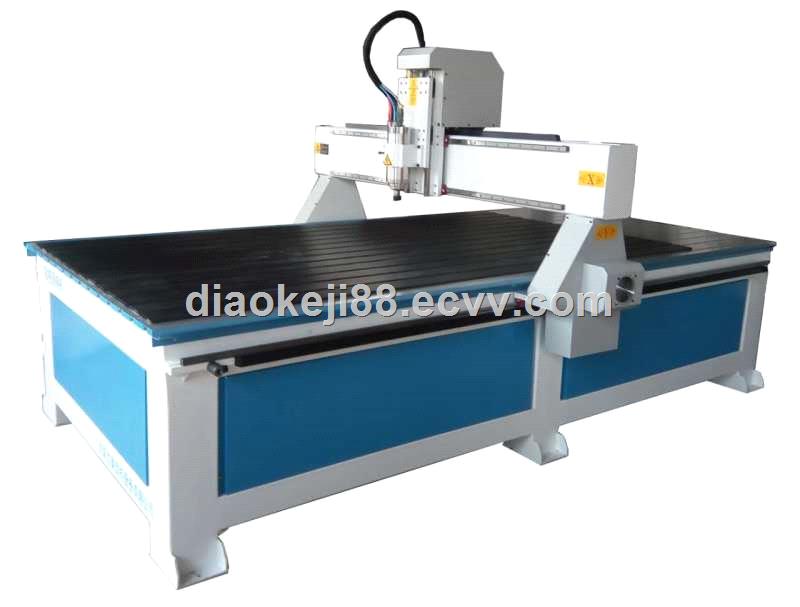

High Speed 1325 Wood Cutting Machine, Wood Processing Machine Price

Supply Ability: 3,000 Carton(s) per Month
Shipping: Qingdao
Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: Plastic Packaging

Quick Details

  • After-sales Service Provided: Overseas service center available
  • Warranty: Warranty
  • Certification: CE
  • Brand Name: Li Mei
  • Condition: New
  • Weight: 600kg
  • Dimension(L*W*H): 1850x3000x1550
  • Power(W): 7KW
  • Voltage: ac220v/ac380v
  • Model Number: 1325
  • CNC or Not: CNC
  • Maximum operating speed of 25m / min: 25m / min
  • Maximum engraving speed of: 15m / min
  • Resolution: 0.005mm
  • Control system: DS control
  • Spindle power: 4.5KW water cooling
  • Spindle speed: 0-24000rpm / min

Specifications

20 square rail high speed 1325 wood cutting machine, wood processing machine price wholesale
Wood cutting machine, wood processing machine, plastic cutting router, CNC router, wood router, wood processing center
20-track high-speed 1325 wood cutting machine,Performance advantages:
1, the use of imported linear square rails, double row four ball slider, bearing capacity, smooth operation, high precision, long life. Import ball screw high precision, accurate under the knife.
2, one computer control cabinet, more convenient, clean and tidy. Design more humane, using a unique intelligent budget rule, give full play to the potential of the motor to achieve high-speed processing, straight line curve, the curve is more perfect, does not account for computer memory and can achieve the automatic start and stop cutting spindle.
3, software compatibility, compatible type3 / Artcam / Castmate / Wentai and other CAD / CAM design software.
4, the use of high-speed drive stepper motor and drive, Y-axis with a dual-motor drive, so that high-speed operation up to 30 m / min or more empty line speed, with strong cutting spindle can make the carving speed is more improved.
5, equipped with automatic lubrication system, just a touch can be on all rail slider oil.
20 square rail high speed 1325 wood cutting machine,the main purpose:
1, woodworking industry: MDF, MDF, particleboard, synthetic plate hollow engraving, cabinet doors, solid wood doors, craft doors, Mianqi doors, screens, craft fan window processing, shoe shine machine, game cabinets and panels, mahjong Table, computer tables and plate furniture products, auxiliary processing.
2, the advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, a variety of materials advertising decorative products.
3, other industries: you can carve a variety of large relief, shadow carving, widely used in craft gift industry.
4, flat wood, acrylic, organic board, stone, plastic, MDF (MDF) and other materials line carving, cutting, chamfering, drilling two-dimensional sculpture and three-dimensional relief

20 square rail high speed 1325 wood cutting machine,Performance parameters:
Model 1325 - Woodworking engraving machine
X, Y axis travel 1300 2500mm
Z axis travel 200mm
Maximum operating speed of 25m / min
Maximum engraving speed of 15m / min
Resolution 0.005mm
Repeat positioning accuracy of 0.05mm
Clamping method Clamp clamping or vacuum adsorption
Engraving instruction G code *.U00 *.Mmg *.Plt
Software operating environment windows98 / 2000 / xp
Control system DS control
Operating voltage AC380V / 50Hz
Spindle power 3KW 4.5KW Water cooled / air cooled
Spindle speed 0-24000rpm / min
Working way step
20 square rail high speed 1325 wood cutting machine, wood processing machine price wholesale
Wood cutting machine, wood processing machine, plastic cutting router, CNC router, wood router, wood processing center
High speed 1325 wood cutting machine wood processing machine priceHigh speed 1325 wood cutting machine wood processing machine price
