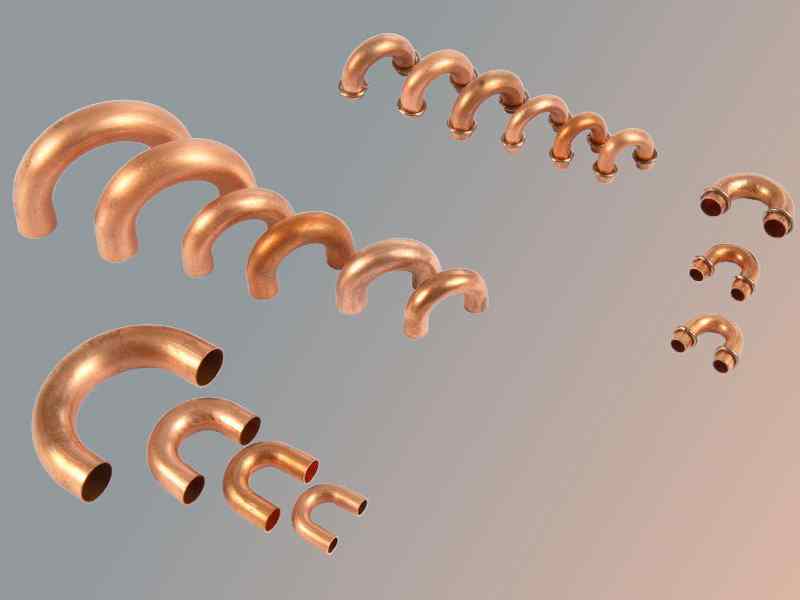

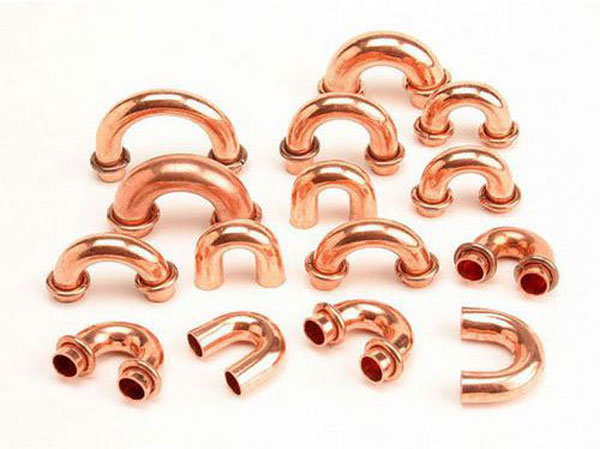

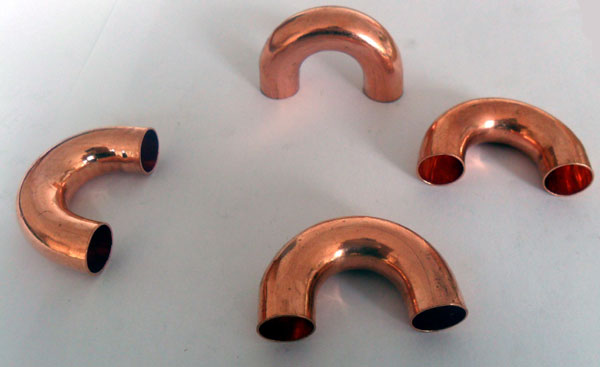

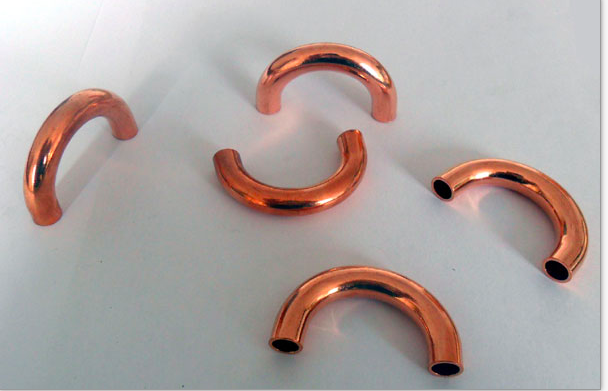

Copper U Bend with Ring & without Ring for Air Conditioning

Supply Ability:	30,000 Bag(s) per Week
Shipping:	Shanghai
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Pressure Balance Expansion Joint

Price:1.00-300.00 USD/Set

Min. Order:1 Set
Socket Welded and Butt Welded Y Type Strainers

Price:99.00-999.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Cartons and pallets

Quick Details

Connection: Welding
Brand Name: Grana
Type: Cross
Technics: Forged
Material: Copper
Shape: Equal
Model Number: sp3008-0620
size: 3/8ID x1 1/2CTR
whole to whole: 1"

Specifications

Copper U Bend for A/C
Application: Air conditioner, refrigeration, heat exchange & hvac etc.
Alloy No.: C12200, C1220, TP2.
Temper: Soft drawn, light soft drawn, hard, half hard.
Standard: ASTM, EN, JISH, GB/T, AS/NZS etc.
Package: Packed in poly bags, then in carton box and in pallets.
Remarks: the customized drawing and samples are also available.

Specification Details of Copper Pipe Fitting:

Part No.	Outside (inch)	Thickness(mm)	Pitch(mm)	Height(mm)
NVUB-1/4	1/4	0.55	20.70	23.00
NVUB-3/8	3/8	0.60	25.40	28.00
NVUB-1/2	1/2	0.70	31.75	32.00

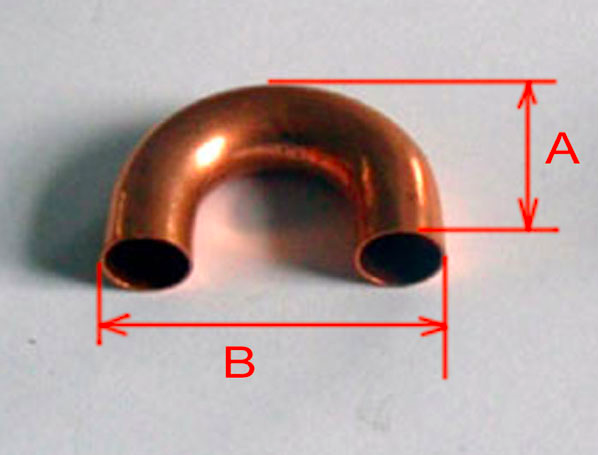

- the above drawing and data of sheet for the reference only. - Welcome any OEM and drawings requirements. - Mould charge fee for big quantity.
