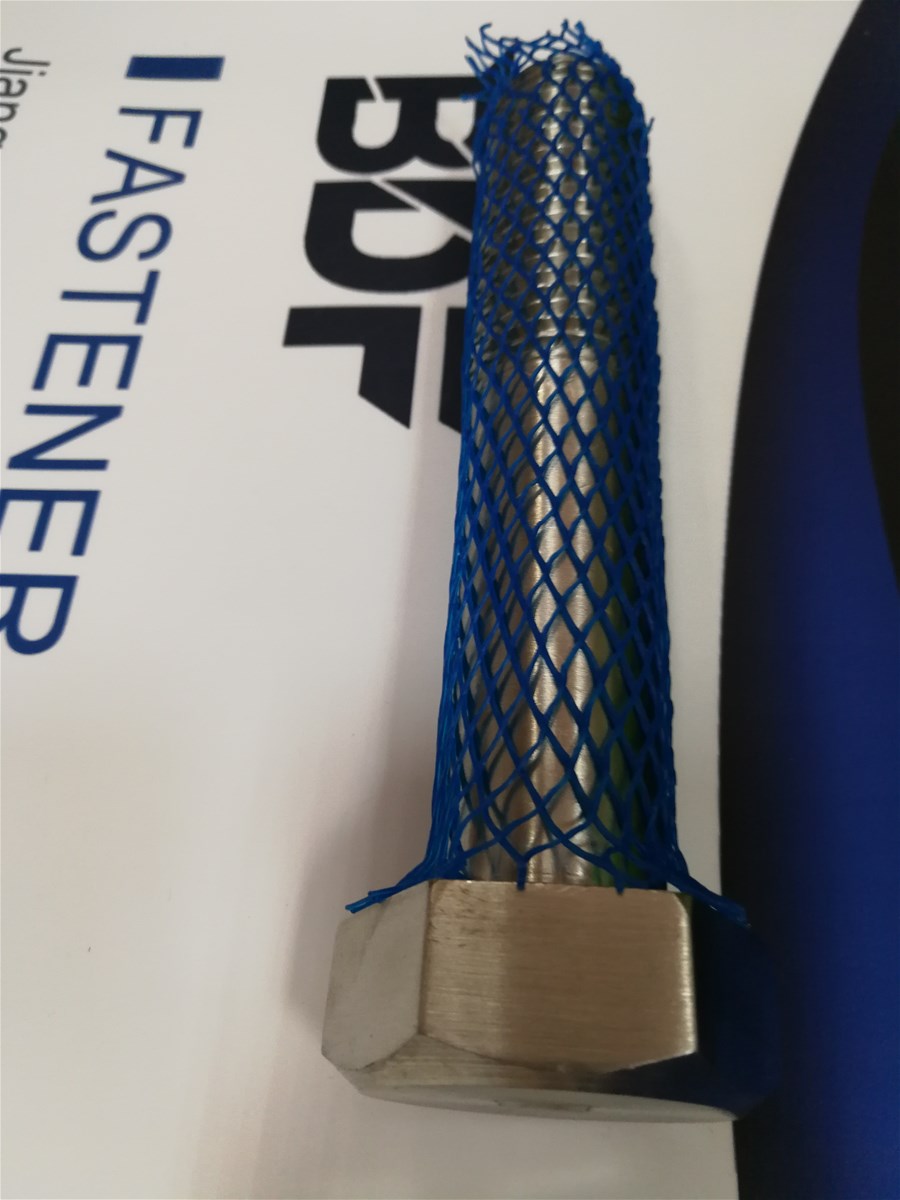

ASTM A453 Gr. 660A/B A-286, ANSI/ASME B18.2.1, DIN933, DIN931 HEX BOLT

Supply Ability: 1,500 Ton(s) per Year
Shipping: FOB SHANGHAI
Payment Terms: L/C, T/T
Export Markets: Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Jiangsu in China
Packaging Details: PACKED IN BOXES AND THEN IN CARTOONS, THEN IN PALLETS OR ACCORDING TO CUSTOMER NEEDS.

Quick Details

  • Standard: ANSI
  • Brand Name: BDF
  • material: Incoloy 286
  • Size: M6-M100 3/8"-4"
  • Certificate: ISO9001
  • Model Number: AISI/ASTM/ISO/DIN
  • Grade: nickel alloy Incoloy
  • STANDARD: ASTM ISO DIN

Specifications

ASTM A453 Gr660AB A286 ANSIASME B1821 DIN933 DIN931 HEX BOLT
BDF can produce qualified Incoloy 286 bolt of all kinds of cold formed and hot forged. the forms are hexagon bolts, hex heavy bolts, socket cap bolts, anchor bolts, and other non-standard bolts according to customer drawings. The size ranges from M8-M100 in METRIC and 3/8" to 3-1/2" in INCH, with varies length.Incoloy A-286 is a high temperature strength, high temperature oxidation of the alloy material.

below 650 C has a high Yield strength and lasting, creep strength and has a good processing of plastic and satisfactory welding performance.




Applications:
for 700 C under the turbine plate, Ring body, stamping welding parts, fastening parts materials. Widely used in the manufacture of aircraft engines and industrial gas turbine components, such As turbine blades, afterburner, etc., in the car engine is also widely used.


Chemical Composition:

%

Ni

Cr

Mo

B

Mn

Si

P

C

Al

Ti

V

S

Fe

Min

24

13.5

1.0

0.001









1.75

0.10



Balance

Max

 27

16

1.5

0.01

2.0

1.0

0.03

0.08

0.40

2.35

0.50

0.02


Physical Properties:

Density

7.93 g/cm3

Melting Range

1364-1424


Incoloy A-286 Alloy minimum mechanical properties in the room temperature:

Alloy State

Tensile Strength Rm N/mm

Yield Strength R P0. 2N/mm

Elongation A 5 %

Brinell Hardness HB

286

610

270

30

321
