Gold Refining Machine for Gold Scrap

Supply Ability:	20 Set(s) per Month
Shipping:	EXW Or Negotiated

Inquiry Now

Related products from verified members

Product Details

Export Markets:	Southeast Asia
Place of Origin:	Guangdong in China
Packaging Details:	wooden packing

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Brand Name: XHF
Usage: Melting Furnace
Condition: New
Weight: 100kilogram
Dimension(L*W*H): 500*500*1000
Power(W): 2KW
Voltage: 220v
Model Number: Customized
Weight: 100 kilogram
color: gold
Function: the machine is used to melt gold scrap ,and then refined pure gold.

Specifications

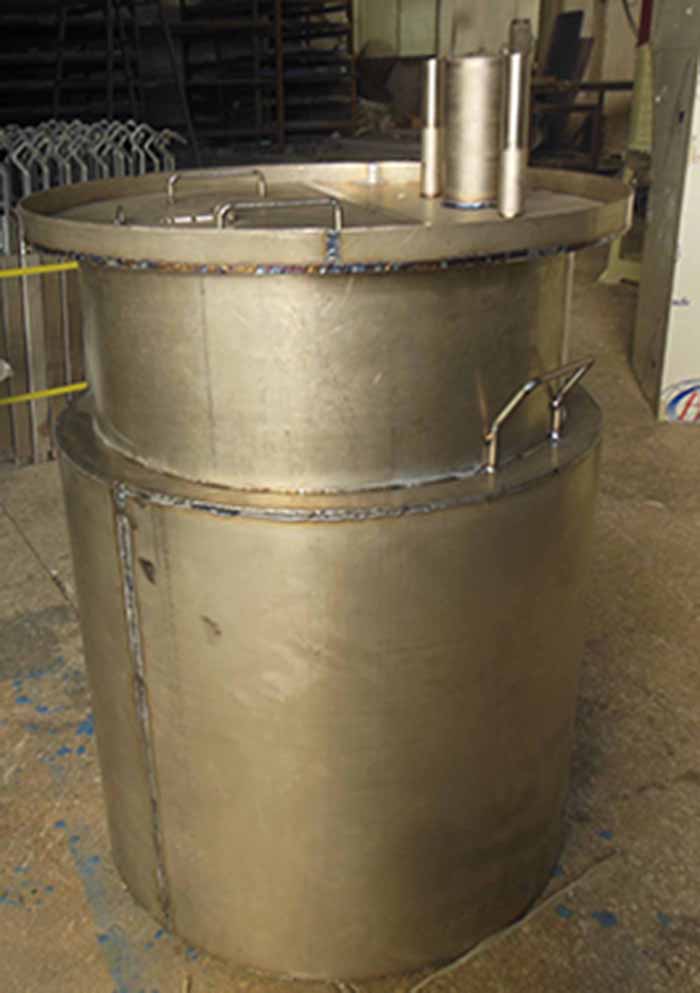

Gold Melting machine for gold scrap
Material: commercial pure titanium plate, with titanium purity of 99.9%.

Function: aqua regia is added to the reactor for gold melting and then cooling down, to obtain a solution containing gold.

Structure: reactor housing + material inlet + dosing inlet + material outlet + waste liquid discharge outlet + air outlet + electric heating and temperature control device + cooling device

Specification: 10-20KG gold / each time.

Advantages of titanium gold melting reactor:

1) Fast heating up and cooling down: this reactor is equipped with electric heating and cooling device, so the material temperature can be automatically controlled according to technological requirements.

2) Special structural design: this reactor has advanced structure and good sealing. during the process of gold melting, it can prevent corrosive acid gases releasing to the surroundings, endangering human health and polluting the environment;

3) Design of suction opening: unique suction opening design can quickly suck up exhaust concentrated acid mist generated during gold melting. (Exhaust concentrated acid mist that sucked away can be treated with our matching purifier. Efficiency of exhaust purification can reach to 99%.)

4) High temperature resistance: excellent heat resistance, wide operating temperature range (-25 ~ 600 ).

5) Strong corrosion resistance: Due to the characteristics of acid resistance, alkali resistance, high temperature resistance and chloride ions resistant, titanium materials can be applied to the purification of gold and silver waste with various properties, without causing corrosion to the equipment.

6) Excellent mechanical properties: Titanium materials have good processability and mechanical properties, which can be produced to reactors with different shapes and configurations according to process requirements. It can withstand high working pressures. Reactor wall may be polished to prevent materials hanging, and facilitate cleaning.

Gold Melting Machine for Gold Scrap
