Anping Tenglu Metal Wire Mesh Co., Ltd.
China Manufacturer with main products: Stainless Steel Wire Mesh, Filter Disc, Gabion Box, Welded Mesh, Expanded Metal Mesh, Perforated Sheet Mesh, Fence Mesh, Conveyor Belt Mesh |

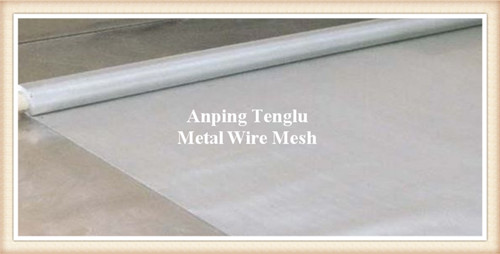

Monel 400 Woven Wire Mesh Cloth
| Supply Ability: | 10,000 Piece(s) per Month |
|---|---|
| Shipping: | BY SEA |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | WOODEN BOX |
Quick Details
- Technique: Welded
- Hole Shape: Square
- Material: Monel400,Monel401,Monel404,Monel R405,Monel K500 and Inconel wire.
- Application: Screen
- Brand Name: Tenglu
- Surface Treatment: Galvanized
- Mesh Size: 2 x 2
- Wire Gauge: 1.8mm
Specifications
Monel400 WovenWire Mesh Cloth
Monel Wire Mesh Cloth is made from Monel400,Monel401,Monel404,Monel R405,Monel K500 and Inconel wire.
Monel wire mesh feature:
High nickel copper alloy. Stronger than steel and extremely corrosion resistant. Better under high temperature conditions.
Monel wire mesh use:
Monel Woven Wire Mesh is often used in marine applications such as piping systems and strainer baskets as well as in chemical processing equipment and heat exchangers.
Popular Weaving Types for Wire Cloth: Plain Weave,Twill Weave and Dutch Weave
Specifications:
Mesh Size |
Wire Thickness mm |
Aperture |
2 x 2 |
1.8mm |
10.9mm |
4 x 4 |
1.2mm |
5.15mm |
6 x 6 |
0.8mm |
3.433mm |
8 x 8 |
0.6mm |
2.575mm |
10 x 10 |
0.55mm |
1.99mm |
12 x 12 |
0.5mm |
1.616mm |
16 x 16 |
0.4mm |
1.188mm |
20 x 20 |
0.3mm |
0.97mm |
30 x 30 |
0.25mm |
0.596mm |
60 x 60 |
0.15mm |
0.273mm |
80 x 80 |
0.12mm |
0.198mm |
100 x 100 |
0.1mm |
0.154mm |
120 x 120 |
0.08mm |
0.132mm |
160 x 160 |
0.065mm |
0.094mm |
200 x 200 |
0.053mm |
0.07mm |
