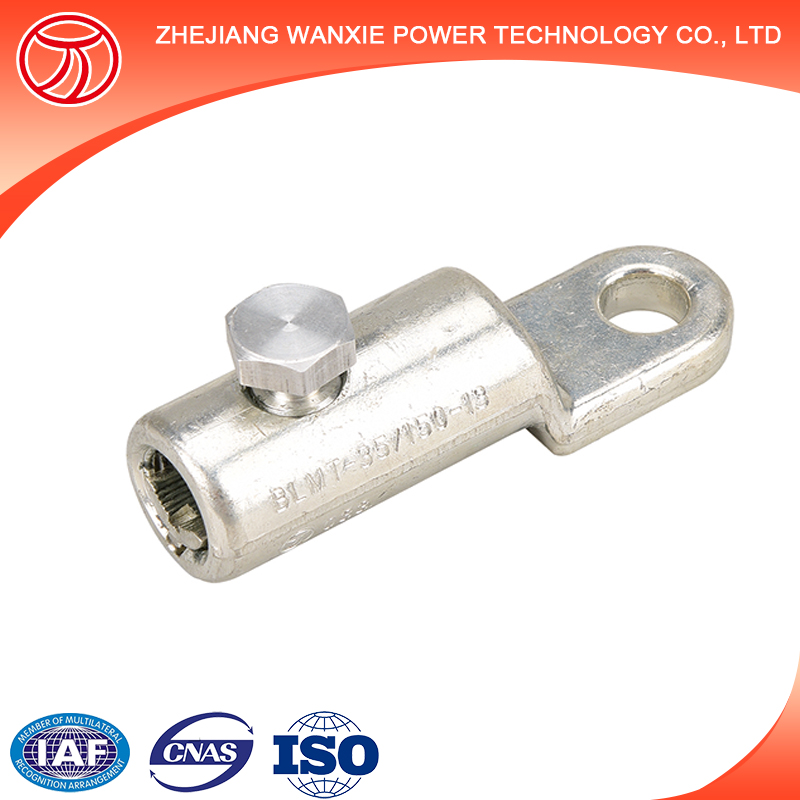

Wanxie Cable Terminal Lug Cable Wire Terminal Connector Cable Terminal Connector
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Material: Aluminum Alloy
- Type: Cable Terminal Lug
- Brand Name: Wanxie
- Color: white
- I.D: BLMT-35/95-13
- Model Number: BLMT-35/95-13
- Product name: Wanxie cable terminal lug Cable Wire Terminal Connector Cable Terminal Connector
- Material: Alumium Alloy
- bolt: 1
- color: white
- Feature: No special tools are required
- Certification: ISO9001
- Sample: Free
Specifications
Product Description
Product description
1.Aluminum cable lug for power fitting.
2.Material: 99.5% purity Aluminum
3.Suitable treatment: Bright
4.It is suitable for connection of Aluminum conductor.

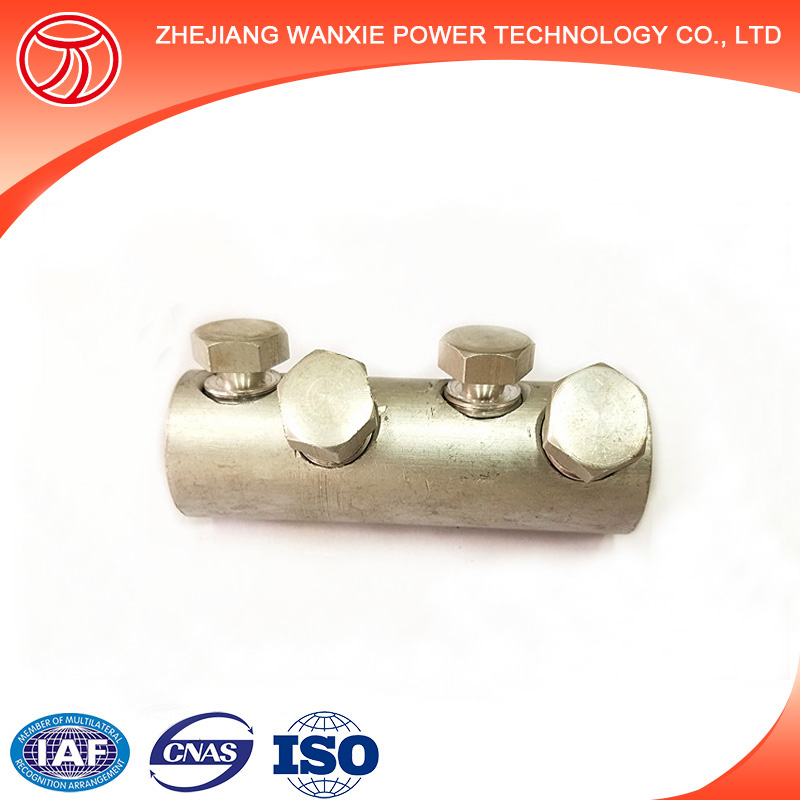

Mechanical connectors, lugs and repair sleeves are designed for use in low and medium voltage applications. Only three sizes cover conductor sizes from 25 mm2to 400 mm2. All products consist of a tin-plated body, shear-head bolts and inserts for small conductor sizes.
Body
Connector and lug bodies are made of a high-tensile, tin-plated aluminium alloy. the internal surfaces of the conductor holes are grooved. Connectors are chamfered at the edges and available with or without oil barrier (as blocked and unblocked types) depending on the appli cation requirements. Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes.
Catalog |
Cross-sectional range mm2 |
Palm hole diameter(mm) |
Dimensions(mm) |
Head size | |||
AF | |||||||
LB |
L1 |
L2 |
D1 |
D2 |
mm | ||
BLMT-25/95-13 |
25-95 |
13 |
60 |
30 |
24 |
12.8 |
13 |
BLMT-35/150-13 |
35-150 |
13 |
86 |
35 |
28 |
15.8 |
17 |
BLMT-95/240-13 |
95-240 |
13 |
112 |
60 |
33 |
20 |
19 |
BLMT-120/300-17 |
120-300 |
17 |
115 |
65 |
37 |
24 |
22 |
BLMT-185/400-17 |
185-400 |
17 |
137 |
80 |
42 |
25.5 |
22 |
BLMT-500/630-17 |
500-630 |
21 |
150 |
95 |
50 |
33 |
27 |
BLMT-630/800-21 |
630-800 |
21 |
180 |
120 |
58 |
37.5 |
27 |
BLMT-1000-21 |
1000 |
21 |
200 |
130 |
68 |
42 |
27 |

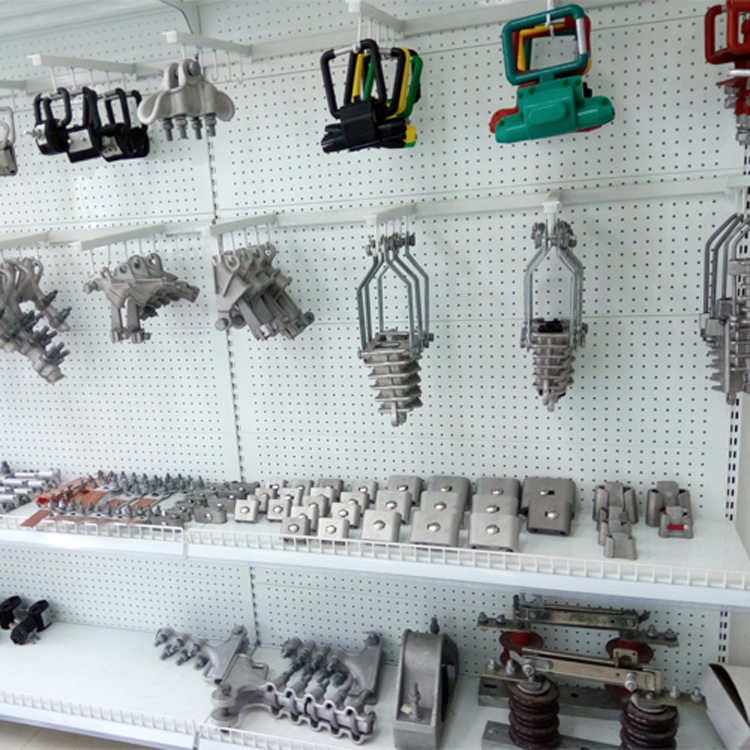

Zhejiang Wanxie Power Technology Co., Ltd is a professional manufactuer which has 5 years OEM exprience. Our products sells mainly in Europe, America,South Africa and so on. Our company has products of all specifications and its major producTs are overhead insulator fittings, poleline accessories, power line fittings, pocelain insulators and so on. the company has a strong technological power, top-ranking production.and has got the certificate of International Quality System ISO9001.
1, Are you a factory?
We are a professional manufacture.
2, how about the payment terms?
Normally 30% deposit in advance, the balance should be paid before shipment.
3, how about delivery time?
Depend on your order quantity. We can finish order very fast.
4, Can I get a sample?
We can supply 1 or 2 samples for free, client only need to pay express fee.
5, Can you make it according to my drawing?
of course, we can make various products according to your demands.
