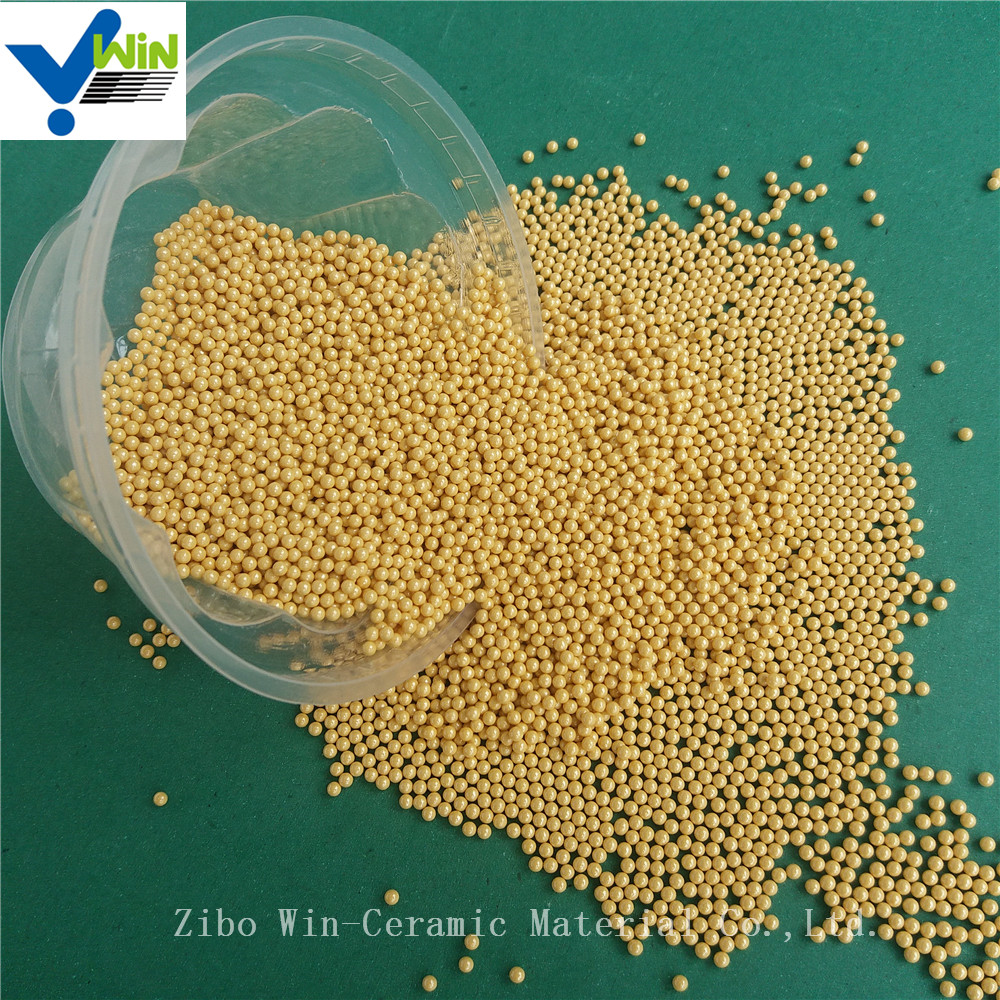

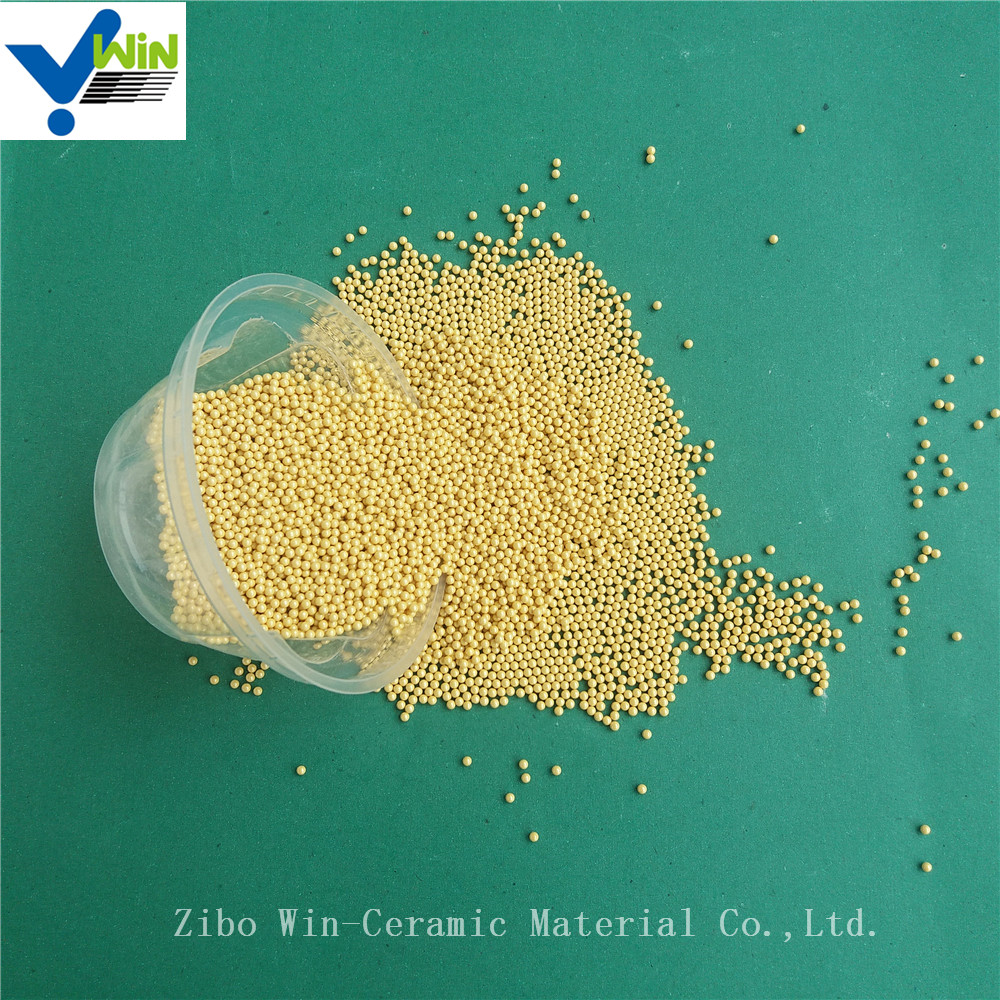

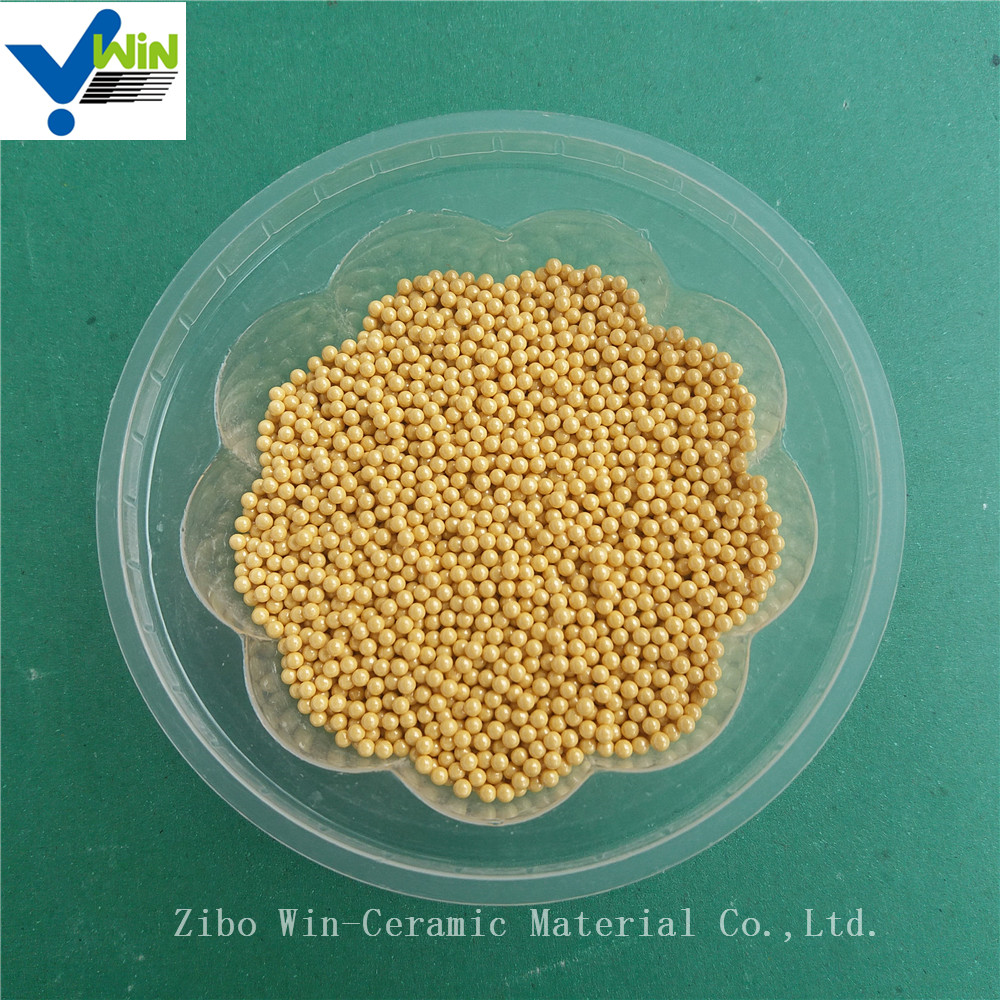

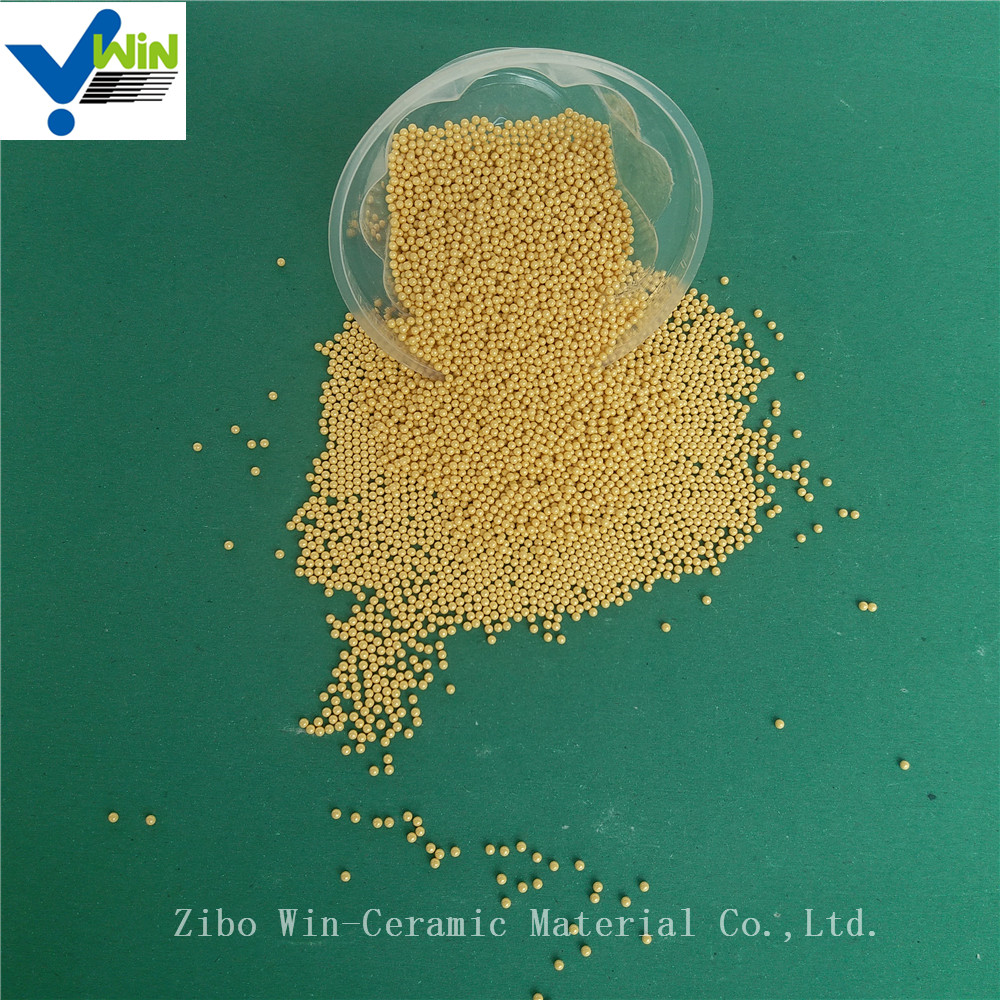

High Purity Golden Cerium Zirconia Grinding Media for Basket Mill

Supply Ability: 1,000 Ton(s) per Month
Shipping: FOB Qingdao
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: Normally the standard package is 25KG/barel, 1-1.5 tons/pallet

Quick Details

  • Brand Name: Win-ceramic
  • Material: Zirconia Ceramic
  • Application: Industrial Ceramic
  • Type: Ceramic Balls
  • Color: Gold
  • Shape: Round.ball
  • Size: 0.4 - 3.0mm
  • Color: Yellow/Glod

Specifications

Application:

It is with the earth rare element " cerium", so Cerium stabilized zirconia bead has the biggest specific gravity in all Zirconia beads series and it is very suitable for some special Industries and grinding materials.

Especially for milling and dispersing high viscosity pastes and high purity products.



(1).Wear-resistant, corrosion-resistant products: paints, textiles, paints, printing and dyeing;

(2). High strength, high toughness products: magnetic materials, piezoelectric ceramics, dielectric ceramics ;

(3).to prevent pollution: medicine, food, cosmetics ;

(4).Ceramics: Electronic ceramics, refractory ceramics, structural ceramics.



Products Dimension

Ball

 0.4-0.6mm

 0.6-0.8mm

 0.6-0.8mm

 0.8-1.0mm

 1.0-1.2mm

 1.2-1.4mm

 1.4-1.6mm

 1.6-1.8mm

 1.8-2.0mm

 2.0-2.2mm

 2.2-2.4mm

2.4-2.6mm

2.6-2.8mm

2.8-3.0mm





Composition

Wt%

20% CeO2 + 80% ZrO2

Specific Density

G/cm3

6.0

Color

Yellow/Gold

Bulk Density

g/cm3 3.85

Hardness

Mohs

9

Elastic Modulus

GPA

200

Thermal Conductivity

W/m.K

3

Crushing Load

KN

2000(2mm)

Fracture Toughness

Mpam1-2

8.5

Thermal Expansion Coefficient



10*10-6/(20-400)

 9.0
Wear Loss

Ppm/hr



<10ppm/hr(24h)

Grain Size

m



0.5



Features:

It Has a gem-like hardness and density.Micro-structure of delicate, Uniform, dense ceramics of the Quartet. Its excellent wear resistance and fracture toughness is particularly suited for grinding and Dispersing high-solid-phase high-viscosity, high hardness of the paste.

(1).Long working life: 30 times longer life than glass beads, 6 times than zirconium silicate beads.

(2)High grindingefficiency: around 6 times than glass beads; 2 times than zirconium silicate bead

(3).Excellent wear resistance and fracture toughness.
High purity golden cerium zirconia grinding media for basket mill
