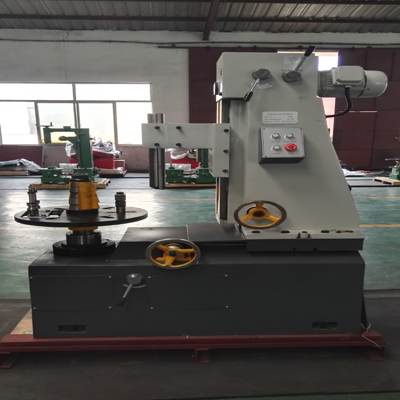

Brake Drum Boring Machine (T8380)

FOB Reference Price: $ 1
Wholesale: ≥1 Set(s)
Supply Ability: 100 Set(s) per Month
Shipping: Qingdao Port
Payment Terms: T/T
Update Time: 2018/7/5
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong China
Packaging Details: 1200*1050*1630 mm

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Power(W): 3
  • Brand Name: ZZMK
  • CNC or Not: Normal
  • Condition: New
  • Weight: 1350
  • Dimension(L*W*H): 940*600*1415
  • Model Number: T8380
  • Production Capacity: 180-800

Specifications

Brake Drum Boring Machine T8380
Features
this machine is applicable for boring, repairing, machining, producing brake drum, brake shoe of vehicles & tractors, it is with features as below:
1. High rigidity. the thickness of chassis is 450mm, which is integrated with transmission system & stand, so the rigidity is strengthened.
2. Wide machining range. this model is with very big machining diameter among all the brake drum boring machines in china.
3.Perfect operation system. the quick up/down & positive/negative feed increases the working efficiency and the integrated button station achieves convenient operation.
4.Applicable for widel car types. It can machine not only brake drums & brake shoes of Jiefang, Dongfeng, Yellow River, Yuejin, Beijing130, Steyr, Hongyan etc.,but also the followings: Zhongmei Axle, York Axle, Kuanfu Axle, Fuhua Axle, Anhui Axle.
Specification

Main Specifications T8380
Range of Processing Diameter  mm 180-800
Rotating Speed of Workpiece  r/min 24 / 45 / 80
Working Travel of Slideboard  mm 450
Overall Dimensions  mm(L x W x H) 940*600*1415
Packing Dimensions  mm(L x W x H) 1200*1050*1630
N.W/G.W  kg 1200 / 1350
Motor Power  kw 3
