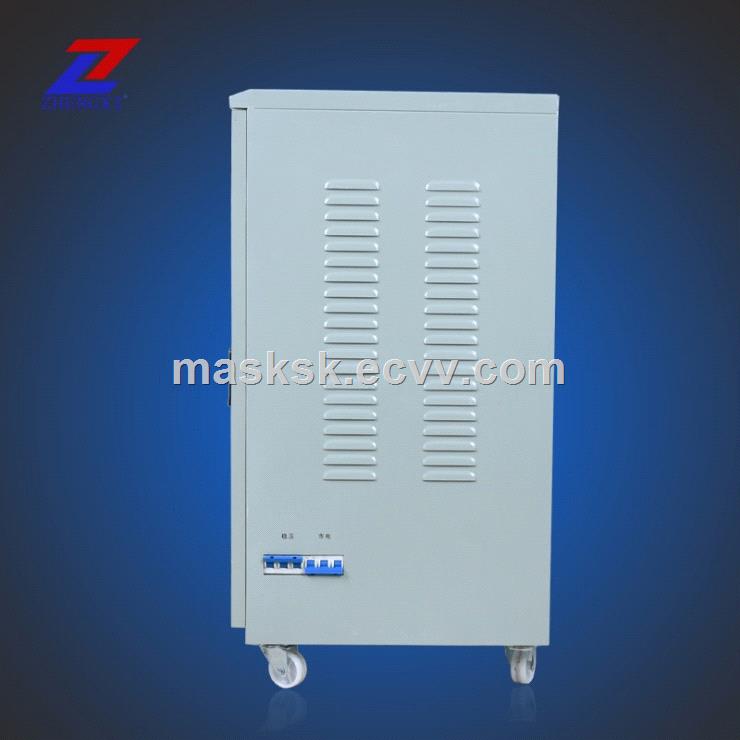

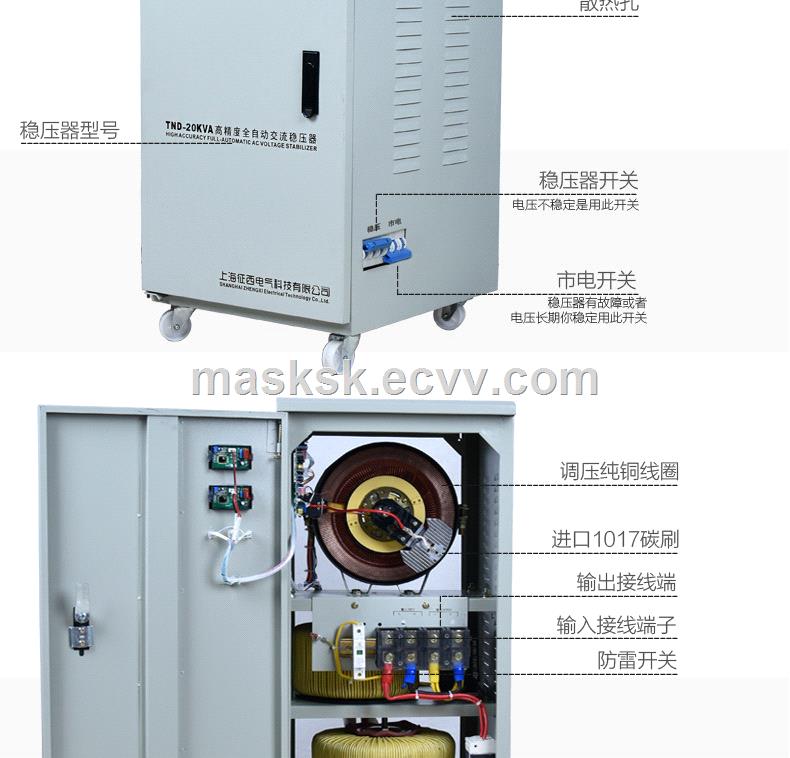

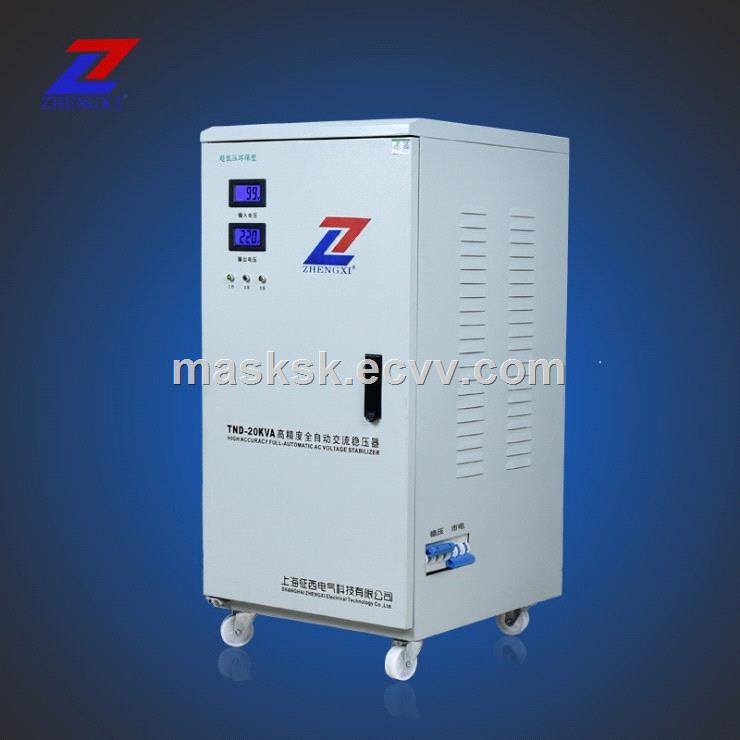

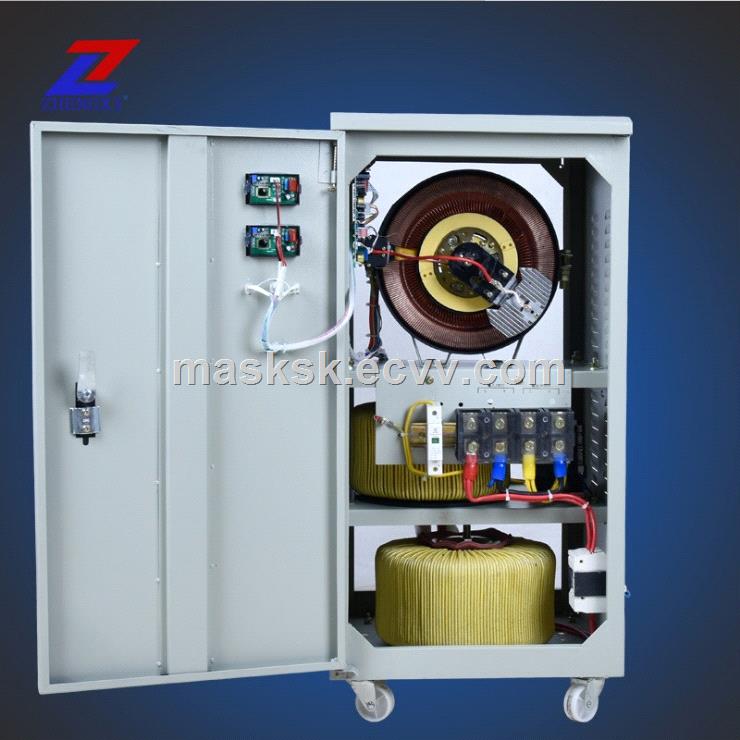

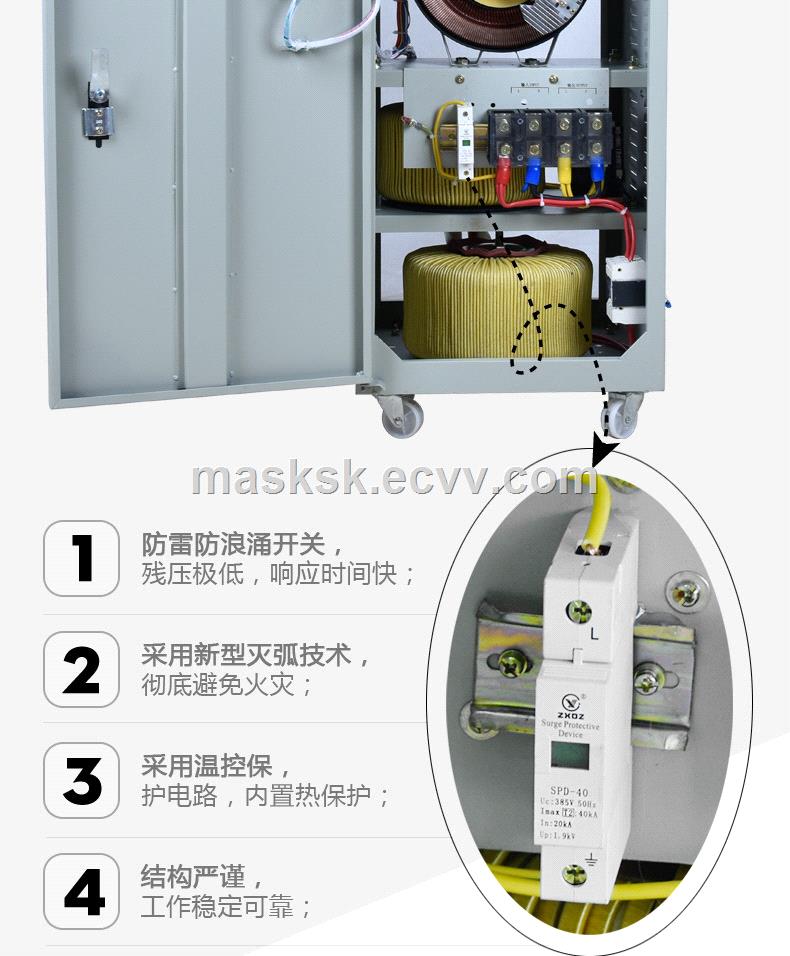

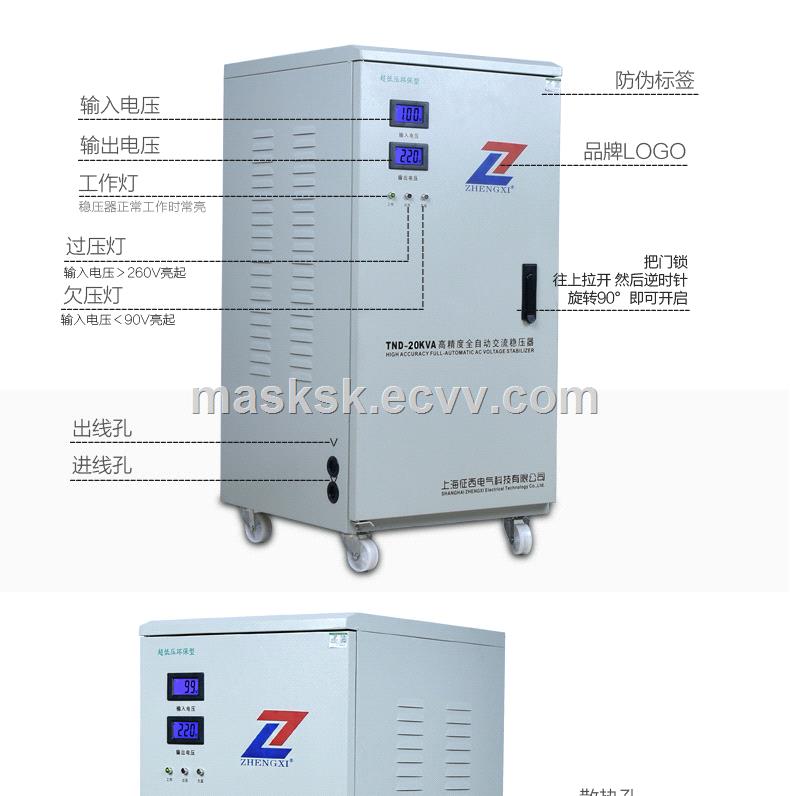

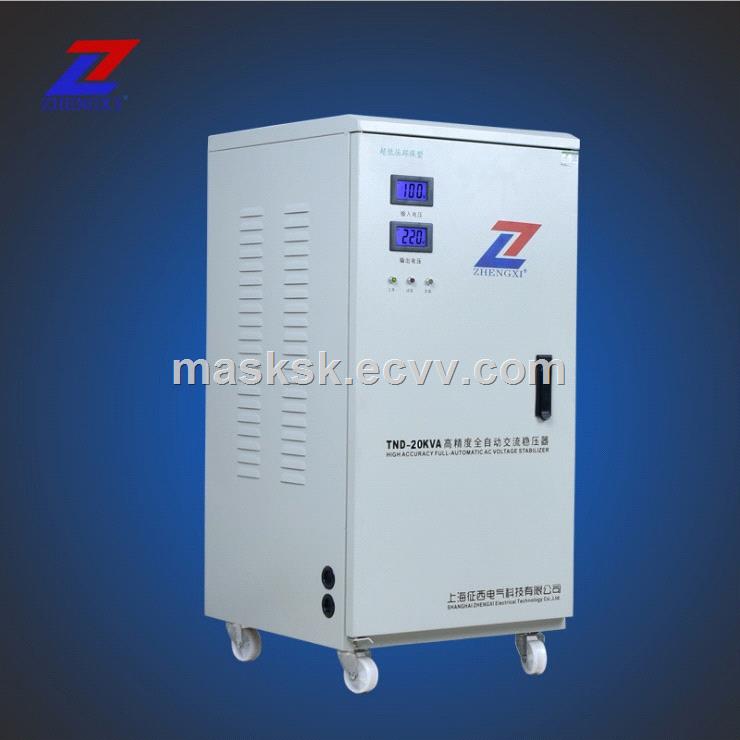

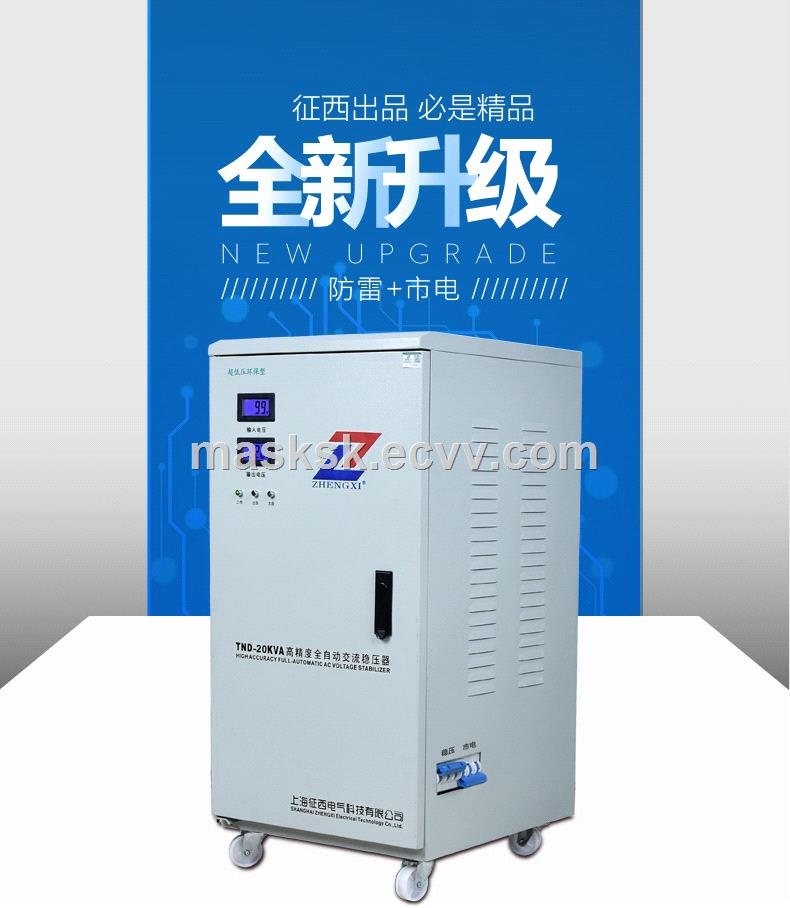

SVC/TND Single-Phase High-Precision Automatic AC Voltage Stabilizer

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Quick Details

Phase: Single Phase
Usage: SVC
Brand Name: ZHENGXI
Warranty: 1
Model Number: SVC/TND-0.5-5KVA 10-30KVA
white: black

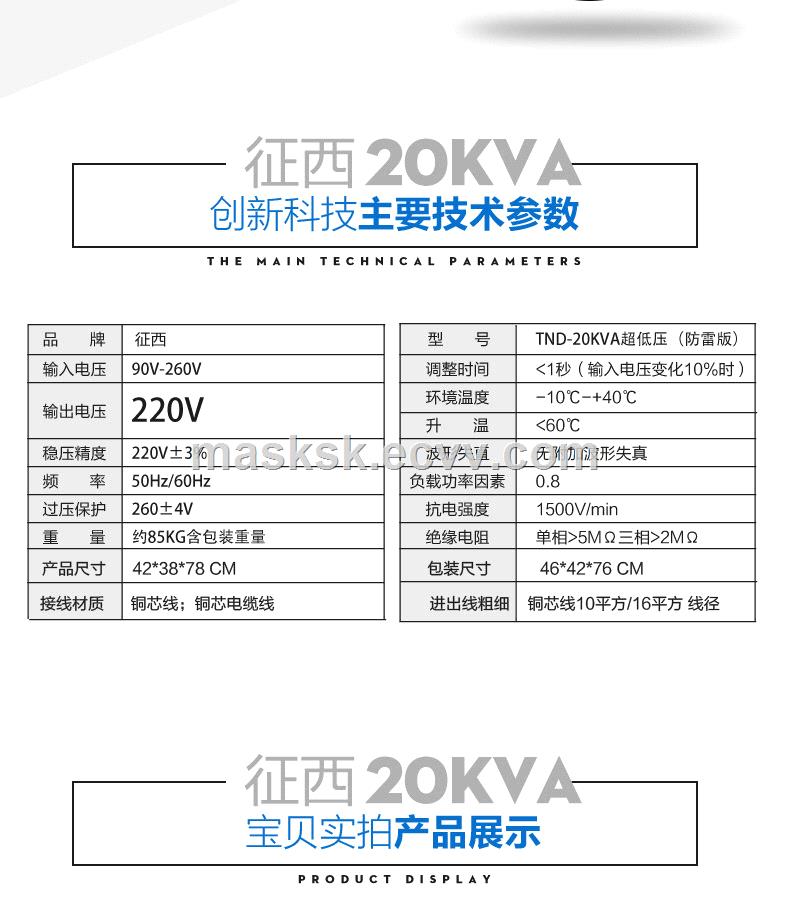

Specifications

Input Voltage:140V-260V
Output Voltage:200V&110V(0.5KVA-3KVA) 220V(5KVA-30KVA)
Regulation accuracy:Phase Voltage 220V3% 110V6%
Frequeney: 50Hz/60Hz
Overvoltage protection:246V4V
Response time:Within 1 sec.against 10% input voltage deviation
Environment temperature: -10-40
Increased temperature: <60
Waveform disortion: No-lack distortion in waveform
Overload power factor: 0.8
Intemsity of electricity resistance: 1500V/1min
Insulation resistance: >5M
SVCTND SVCTND SVCTND SVCTND SVCTND SVCTND
