>Products Catalog > CCTV AHD Camera > Home Security Digital Video AHD Camera 1080P with 24pcs IR LEDs IR Cut IP66 Waterproof Housing

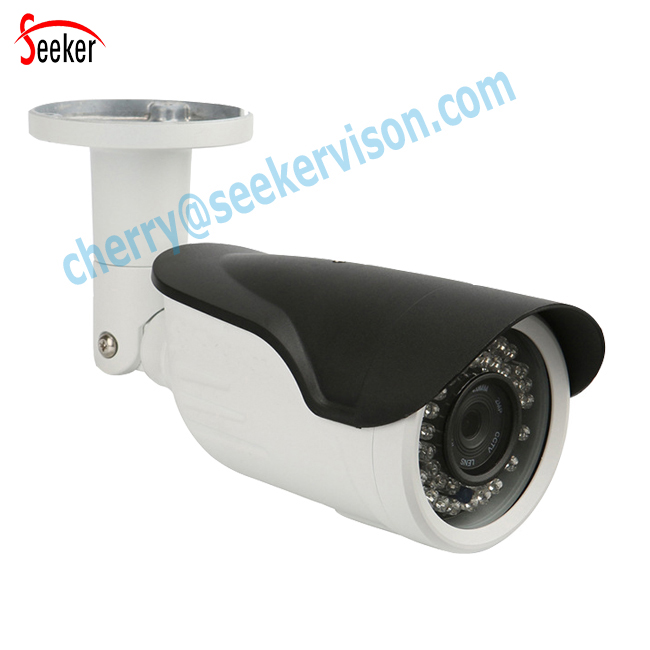

Home Security Digital Video AHD Camera 1080P with 24pcs IR LEDs IR Cut IP66 Waterproof Housing
| Supply Ability: | 30,000 Piece(s) per Month |
|---|---|
| Shipping: | Sea Freight, Air Freight, Express |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | inflated bag+color box+outer caton |
Quick Details
- Special Features: Waterproof / Weatherproof
- Technology: Infrared
- Sensor: CMOS
- Type: Analog Camera
- Brand Name: seeker
- Style: Bullet Camera
- Model Number: SK-AHB20BN
- Camera Type: AHD Camera
- Chipset: Nextchip2470H+IMX323
- IR LEDs: 24pcs
- IR Distance: 20M
- IR cut: support
- Lens: 3.6-8MM optional
- CE Approval: yes
Specifications
Home Security Digital Video AHD Camera 1080P with 24pcs IR LEDs IR Cut IP66 Waterproof Housing
Specification
>HD High Resolution AHD Camera
>Reliable Long-Distance Transmission (up to 500 meters)
>Real time HD Transmission Technology
>Composite Signals in 1 Coaxial Cable for Simple Installation
>Anti-interference Capability
>Cost Advantage (More cheaper than CVI & SDI solution)
>Good Compatibility & Different Specifications All in One AHD DVR
>Built-in OSD menu button (Optional)
Video Output Mode
AHD/CVI/TVI/CVBS
AHD/CVI/TVI/CVBS
AHD/CVI/TVI/CVBS
AHD
AHD Image Sensor
OV9732
AR0130
IMX323
AR0330
OV4689 DSP
Nextchip2433H
Nextchip2433H
Nextchip2470H
NVP2470H
NVP2475H Image Resolution
720P
960P
1080P
3MP
4MP Effective Pixels
1280*720
1280*960
1920*1080
2048*1536
2560*1440 TV System
PAL/NTSC Electronic Shutter
1/25s~1/50,000s , 1/30s~1/60,000s S/N Ratio
50dB Scanning System
Progressive Scan Lens
2.8-12mm Optional Infrared LED
24pcs IR LEDs Infrared Distance
20M IR Power on
CDS Auto Control Day/Night Vision
YES OSD Menu Language
YES White Balance
AUTO / MANUAL Noise Reduction
DNR WDR
YES OSD Support
Optional Housing
Metal, IP66 Waterproof Bracket
YES Dual Voltage
NO IR Cut Filter
YES Operation Temperature
-10 ~ +50 RH95% Max Storage Temperature
-20 ~ +60 RH95% Max Power Source
DC12V10%, 1000mA Weight
500g

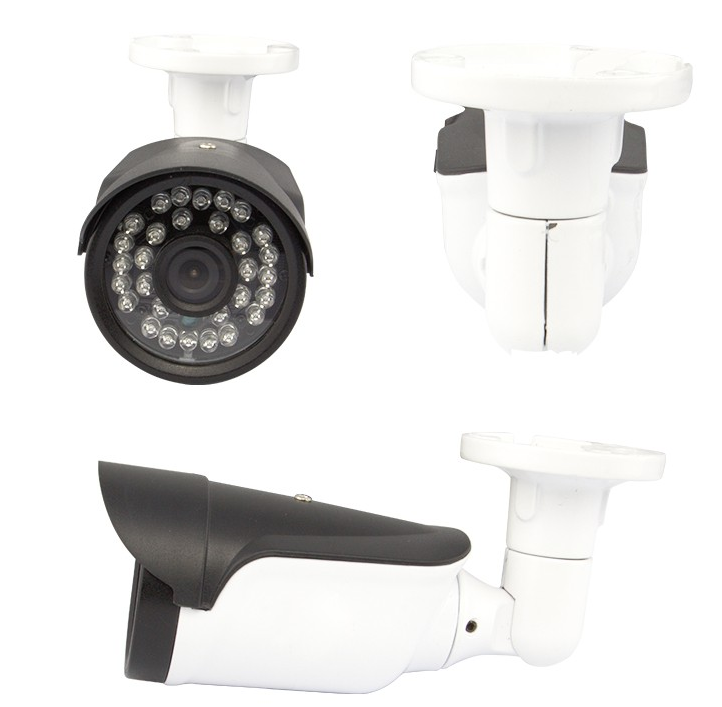

Product Show

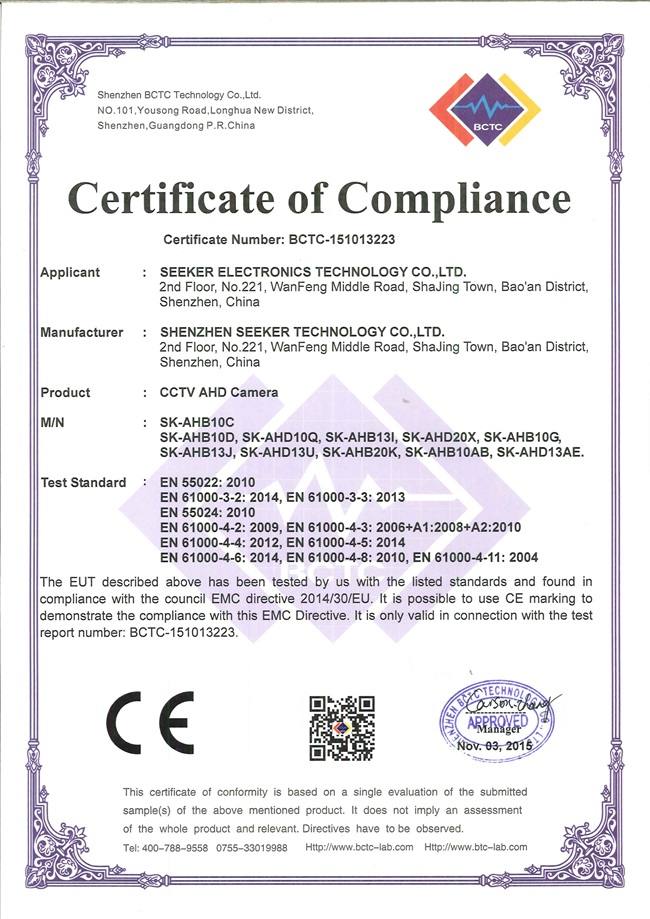

CE Approval

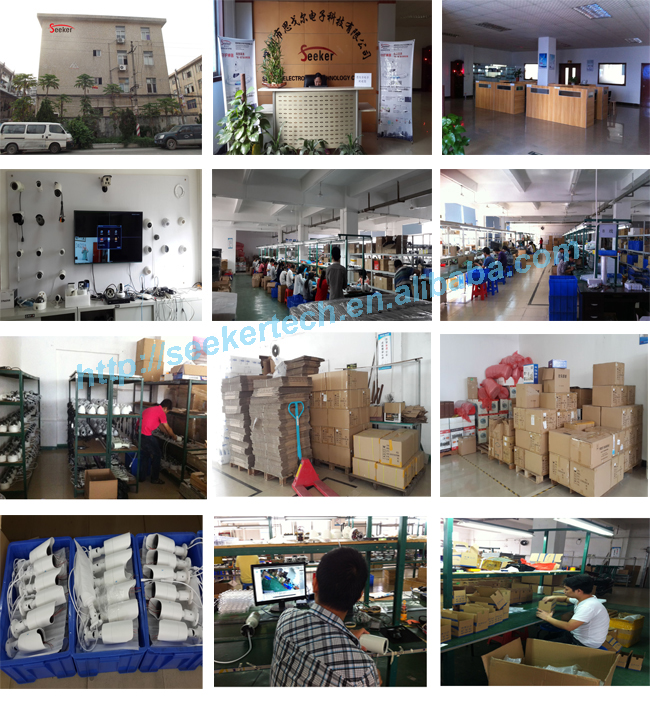

Our Factory
Our Clients
1.OEM & ODM Acceptable;
2. Delivery Time: 3 days for samples, 5-25 days for production
3. Payment Term: T/T, Paypal and Westunion Accepted
