China Tube Bending Machine Manufacturer

Supply Ability:	20 Set(s) per Month
Shipping:	FOB Shanghai
Payment Terms:	T/T

Inquiry Now

Related products from verified members

CNC Hydaulic Bending Machine HQJ20

Price:30,000.00-31,000.00 USD/Set

Min. Order:1 Set
WE67K CNC Press Brake Machine 160 Ton

Price:6000.00 USD/Piece

Min. Order:1 Piece
Hydraulic Press Brake

Price:

Min. Order:
Portable Edge Branding Machin

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1set/wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Automation: Automatic
Power: Hydraulic
Brand Name: humper
Condition: New
Extra Services: Heat Treating
Material / Metal Processed: Stainless Steel
Raw Material: Steel Bar
Machine Type: Pipe and Tube Bending Machine
Model Number: DW115NC
Color: Optional
Name: Pipe Bending Machine
Type: DW115NC
Power: Hydraulic
control: Automatic

Specifications

China Tube Bending Machine Manufacturer

Categories	Other pipe processing machines
Brand	Humper bending machine
Model	DW115NC
Condition	New
Machine Type	Pipe and Tube Bending Machine
Raw Material	Pipe
Material / Metal Processed	Carbon steel, stainless steel, copper, aluminium, galvanized, etc.
Power	Hydraulic
Automation	Manual
Certificate	CE
after-sales Service Provided	Engineers available to service machinery overseas
Tube bending machine manufacturer	Tube bending machine manufacturer
FOB port	Shanghai, China
Terms of Payment	L/C, T/T, Western Union, MoneyGram
Download DOC
Update Time	2017-05-19

China Tube Bending Machine Manufacturer

Detail Information

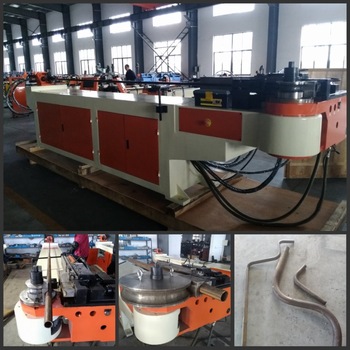

China tube bending machine manufacturer

Adapted material:steel pipe, stainless steel, copper pipe, aluminum pipe;

Recommended application industry:

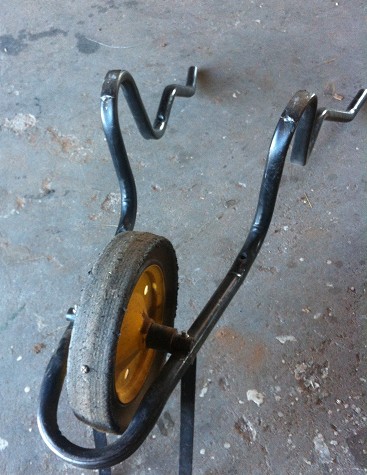

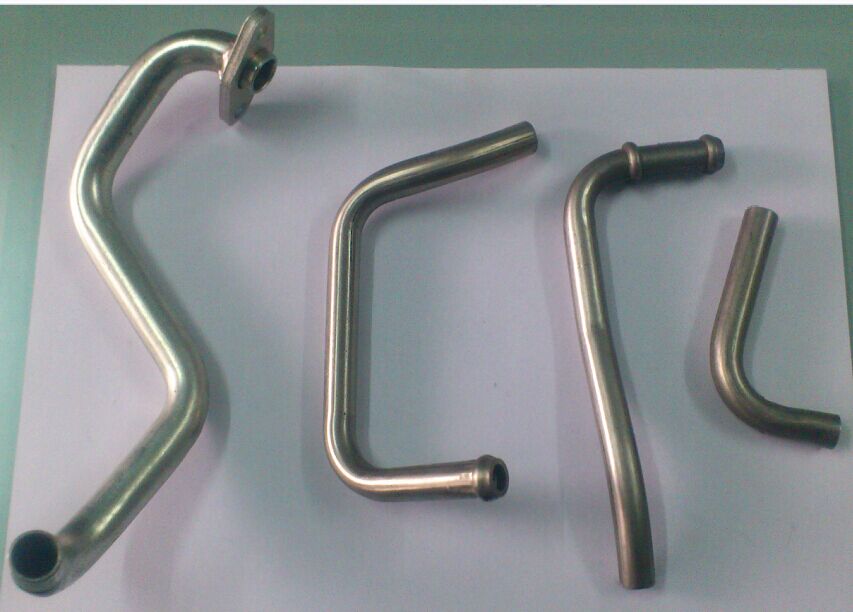

Automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, healthy equipment, air-conditioning,bicycle, steel furniture, sanitary wares and so on.

Main specification

1. NC control unit

2. Direct acting hydraulic clamping

3. Manual feeding and bending

4. Can make 2-dimensional elbow bend

5. Easy operaton interface and easy data input

6. Large program storage capacity up to 16 units

7. Automatically lock angle, angle changing is controlled by coder

8. High bending accuracy

9. Self diagnosis and error messages

10. Optional boost facility

11. Fit for carbon steel pipe, stainless steel pipe, alloy steel pipe, aluminium pipe, copper pipe, etc.

12. Bending diameter of pipe: 0.5-8 inch

13. Bending radius: 175-550mm

14. Max bending angle: 185 degrees

Technical parameter

Specification/Model	Unit	DW115NC	Remark
Max bending capability	mm	115.86.0t	1. the Minimum bending radius based on the pipe diameter 2.the Max bending radius can according to the customer's requirement 3.the Max length of mandrel can according to customer's requirement
Max bending radius	mm	R550
Min bending radius	mm	R50
Max bending angle	Degree	185
Max effective distance of mandrel	mm	4200
Control System		NC Control
Max elbow bend pipe	Unit	16
Max storable sections	Unit	1616
Motor power	KW	22
Max. Hydraulic Pressure	Mpa	14
Hydraulic System Control		Electromagnetic Valve
Oil Tank Capacity	L	120
Size	Cm	520180140
Weight of Machine	Kg	8000
