Shandong Hongfan Power Technology Co., Ltd.

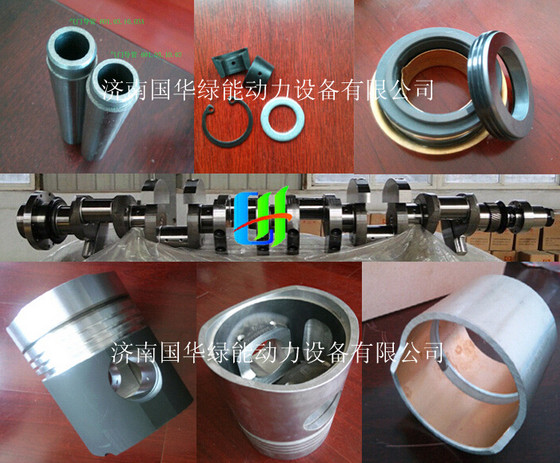

China Manufacturer with main products: Jichai Diesel Generator, Jichai Marine Diesel Engine, Jinan Gas Generator, Chidong Marine Engine Parts, 12v190 Engine Parts, 12v190 Maintain,... |
| Export Markets: | South America, Southeast Asia, Africa |
|---|
Quick Details
- Dimensions (L x W x H) (mm): r *zero*one seven fie zerov
- Engine Position: Inboard
- Fuel Type: Diesel
- Condition: New
- Brand Name: Jichai
Specifications
Here are the models and main technical specifications of some types.
Model
Item |
8190ZLD |
8190ZLCZ-R |
8190ZLCZ-1R |
8190ZLCZ1-1R |
8190ZLCZ1-2R |
8190ZLCZ1-3R |
8190ZLC |
8190ZLC-1 |
8190ZLC1-1 |
8190ZLC1-2 |
8190ZLC1-3 | ||
Type |
Four stroke,direct injection,water cooled,turbocharged and inter cooled | |||||
No.of cylinders |
8 | |||||
Cylinder arrangement |
in line | |||||
Cylinder bore (mm) |
190 | |||||
Piston stroke |
210 | |||||
Total piston displacement |
47.63 | |||||
Compression ration |
14.5:1 | |||||
Rated power (KW) |
720 |
720 |
600 |
490 |
500 |
650 |
Rated speed(r/min) |
1500 |
1450 |
1200 |
1200 |
1000 |
1300 |
One hour power (kw) |
800 |
792 |
660 |
539 |
550 |
715 |
One hour speed (r/min) |
1500 |
1496 |
1239 |
1239 |
1032 |
1342 |
Min stabilized operating speed (r/min) |
650 |
650 |
540 |
540 |
400 |
580 |
Min stabilized operating speed(r/min) |
600 | |||||
Specific fuel consumption(g/kw.H) |
204 |
202 | ||||
Specific oil consumption(g/kw.H) |
1.2 | |||||
Max firing pressure(Mpa) |
12 | |||||
Mean effective pressure(Mpa) |
1.2 |
1.251 |
1.26 |
1.03 |
1.26 |
1.26 |
Mean piston speed(m/s) |
10.5 |
10.51 |
8.40 |
8.40 |
7.00 |
9.10 |
Stabilized speed droop(%) |
8;for generating set5 | |||||
Exhaust temperature before turbine(C) |
600 | |||||
Oil pressure in main passage(KPa) |
300~600 | |||||
Oil temperature in main passage(KPa) |
90 | |||||
Net weight (kg) |
4500 | |||||
Overall dimension(L*W*H) |
3175*1208*2055 | |||||
