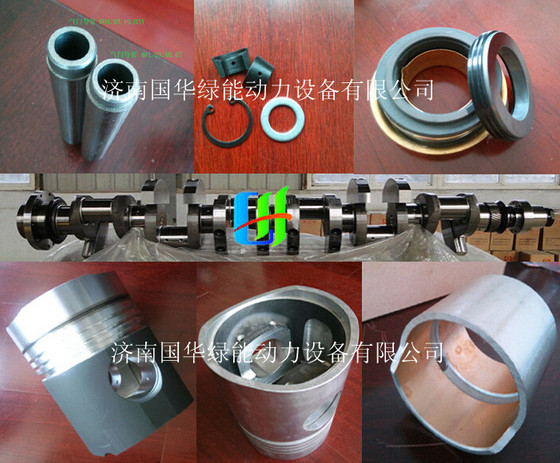

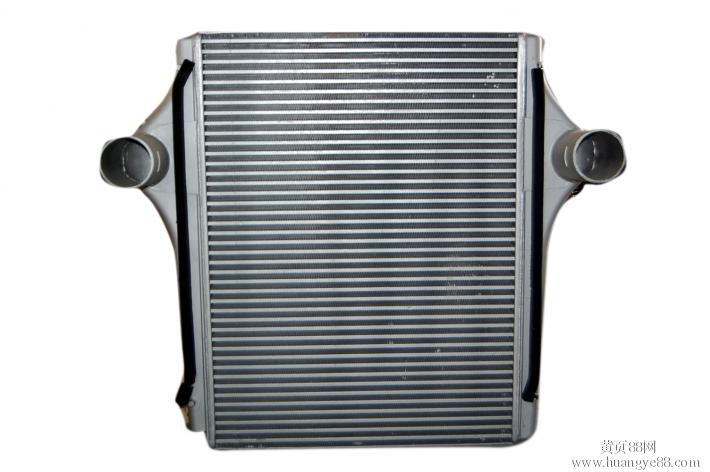

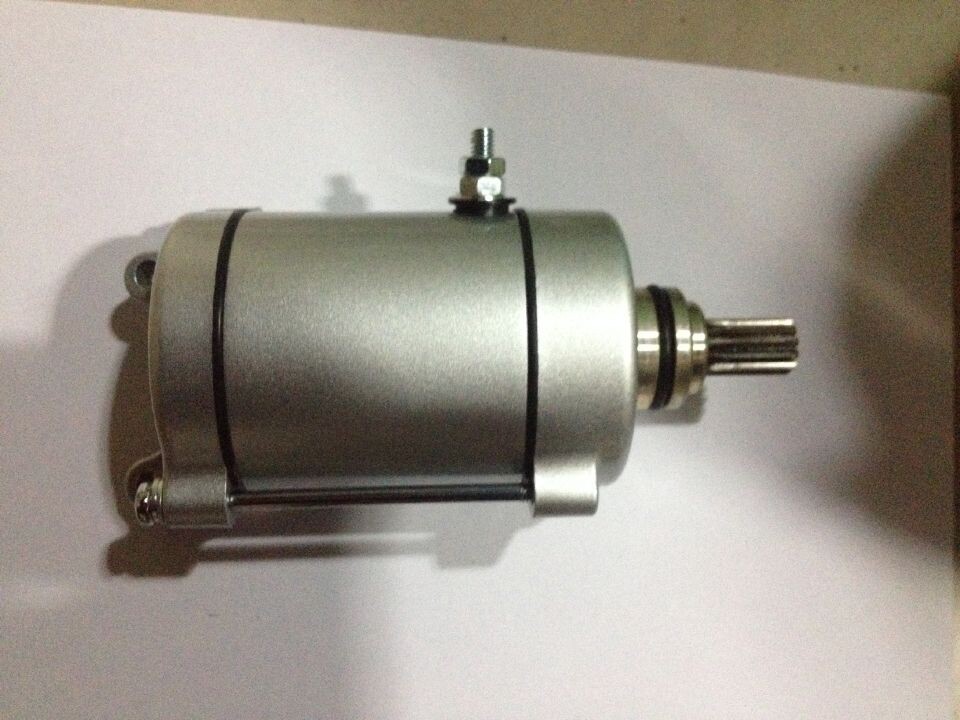

JDEC Jichai Diesel Generator Assembly Crankshaft, Inter-Cooler, Radiator, Electricity Starting, Air Starting,
Quick Details

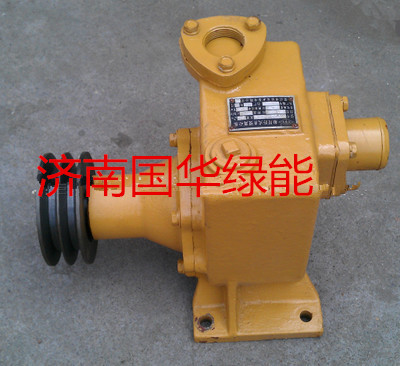

- Type: Pump
- Engine Type: Diesel
- Brand Name: JDEC(Jichai)
- Warranty: warrted by JDEC in 2013
- Usage: power supply
- Model Number: 190 series
Specifications
Products details
- Frequency:50
- Output Type:AC Three Phase
- Rated Power:1200
- Rated Voltage:400
- Speed:1000
-
1200kw Natural gas generator set
1. Advanced Control Panel
2.WOODWARD control system
3.ATS Generator
4.OEM & BV,RS,ISO,CE
4. ATS Generator Set
1200GF-TK Natural gas generator set1 Main technical specification of natural gas gensets|
Model of generating sets |
1200GF-TK |
|
Model of engine |
H16V190ZLT-2 |
|
Rated power Kw |
1200 |
|
Continuous power Kw |
1000 |
|
Rated speed r/min. |
1000 |
|
Rated voltage V |
400/6300/10500 |
|
Rated frequency Hz |
50/60 |
|
Rated power factor |
0.8 |
|
Supply method |
3 phases 4 lines |
|
Excitation method |
Brushless |
|
Starting method |
24V DC starter 24V |
|
Cooling method |
Opened water cooled
|
|
Speed modulate method |
Electronic control |
|
Net weight kg |
19500 |
|
Overall dimension LBH(mm) |
650023122777 |
|
Model |
H16V190ZLT-2 |
|
Type |
Four stroke, water cooled, turbocharger and after cooler, A/F controller, Spark Ignition, electronic control, outer mixing. |
|
Cylinders and arrangement |
16 cylinder, V type and 60Vee |
|
Bore (mm) |
190 |
|
Stroke (mm) |
215 |
|
Total displacement (L) |
97.53 |
|
Compression ratio |
10:1 |
|
Rated speed (r/min) |
1000 |
|
Rated power (KW) |
1200 |
|
Average efficacious pressure (MPa) |
1.476 |
|
Average Piston speed (m/s) |
7.17 |
|
Minimum no-load steady speed(r/min) |
700 |
|
Oil consumption (g/kWh) |
1.0 |
|
Exhaust tempt.(Before turbochargerC) |
700 |
|
Outlet water tempt (C) |
90 |
|
Oil tempt.(in oil sumpC) |
90 |
|
Stable regulating rate (%) |
5 |
1.Genset installation drawing for reference
2.Partnership
3.Factory ang R&D show
4.Certifications
CE ISO9000 ISO1400 BV RS
5.SERVICE ALL of the WIRLD
1200kw (HOT) Natural gas generator set
