Autel MaxiDas DS808, the next Generation of DS708/DS 708 Automotive Diagnostic & Analysis System for VW/BMW

Specifications

Diagnostic Tools Autel MaxiDAS DS808 Car Diagnostic Tool Update Online Remote Diagnosis ECU Programming Update from DS708

Based on the Android operating system, MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 offers maximum convenience and efficiency for your diagnosis and analysis. the intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.

Functions:
    1. Extensive vehicle coverage for more than 80 US, Asian and European vehicle make
    2. Exceptional OE-Level system coverage for all electronic systems
    3. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
    4. Smart AutoVIN technology for identifying vehicles easily
    5. Automatic system and software updates with real-time push message notifications via Wi-Fi
    6. Instant remote control tech support anytime, anywhere
    7. Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
    8. Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
    9. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
    10. Convenient data management system for managing internal program applications and reviewing data

Specifications:
Recommended Use                                    Indoor
Operating System                                      Android 4.4.4
Processor                                                   Cortex-A9 processor (1.5 GHz)
Memory                                                     32GB
Display                                                      7-inch LCD capacitive touchscreen with 1024x600 resolution

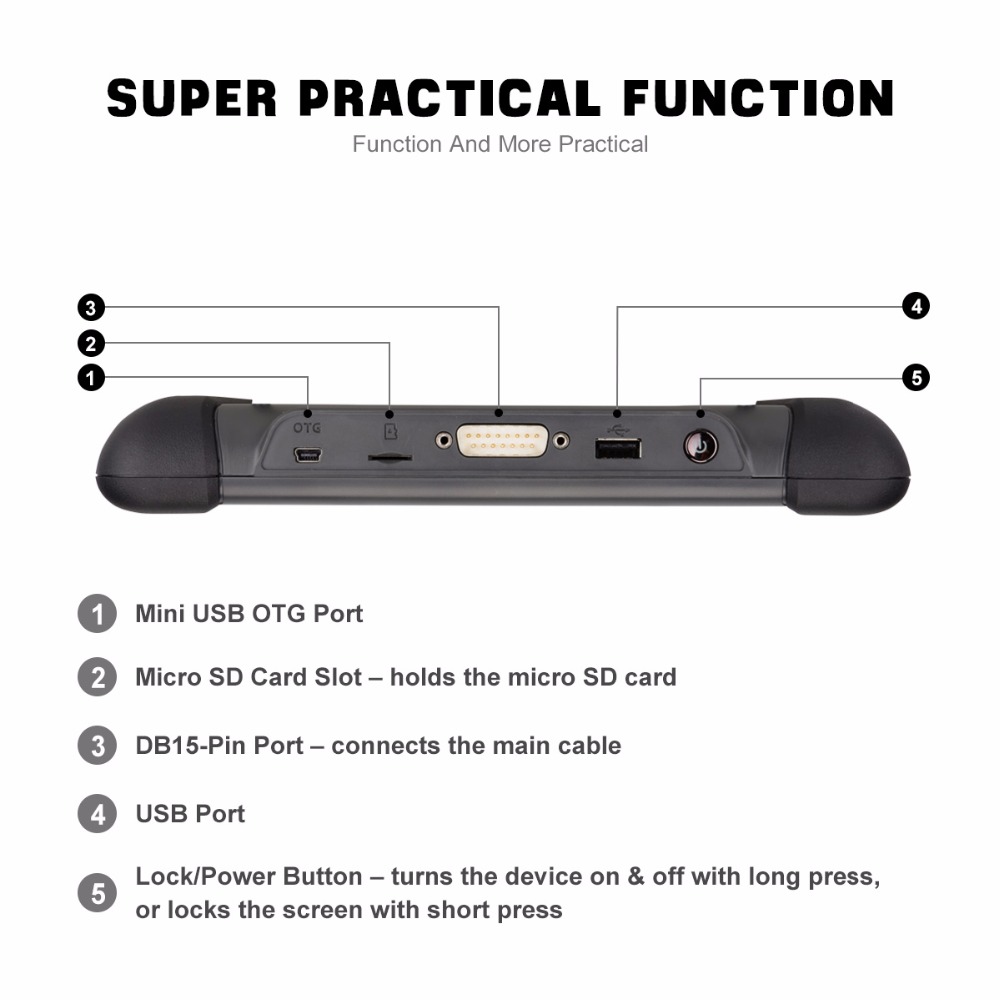

Connectivity                                              Mini USB 2.0 USB 2.0 Wi-Fi Micro SD card (supports up to 32GB)
Sensors                                                      Ambient light sensor for brightness auto changing
Audio Input/Output                                   Input: N/A Output: buzzer
Power and Battery                                        3.7 V/3200 mAh lithium-polymer battery  Charges via 5 VDC power supply
Tested Battery                                            Life around 4.5 hours of continuous use
Battery Charging                                       Input 5 V/1.5 A
Power Consumption                                  500 mA (LCD on with default brightness, Wi-Fi on) 3.7 V
Operating Temp.                                        -10 to 60C(14 to 140F)
Storage Temp.                                            -20 to 70C (-4 to 158F)
Operating Humidity                                   5% - 95% non-condensing
Dimensions (W x H x D)                           237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight                                                 788 g (2.42 lb.)
Supported Automotive Protocols               ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850
                                                                   VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and
                                                                    Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo
                                                                    Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
