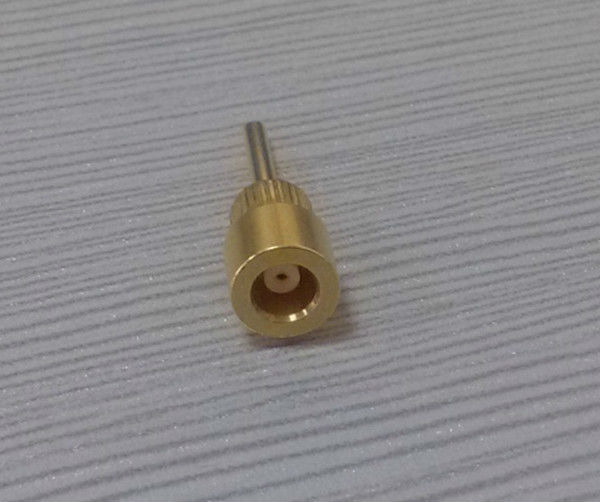

Straight MCX RF Coaxial Connector for Cable
| Supply Ability: | 100,000 Piece(s) per Month |
|---|---|
| Shipping: | As your required |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1.Foam + Carton 2.Blister + Carton 3.Vacuumize + Blister + Carton 4.Vacuumize + Foam + Carton |
Quick Details
- Gender: Male&Female
- Type: MCX
- Brand Name: roho
- Color: Brass
Specifications
| ELECTRICAL DATA | |
| Impedance | 50 |
| Frequency range | DC-6GHz |
| Dielectric withstanding voltage (at sea level) | 750Vrms,50Hz |
| Working voltage | 170Vrms,50Hz (at sea level) / 42Vrms,50Hz (at 21000m/70000ft) |
| Insulation resistance | 10000 m |
| Contact resistance | Inner conductor: 5m |
| Outer conductor: 1m | |
| RF leakage(measured at 1GHZ) | Flexible: 60dB |
| Semi-rigid cable: 70dB | |
| MECHANICAL DATA | |
| Engagement force | 25Nm /5.6lbs |
| Disengagement force | 8N-20N / 1.8 lbs-4.5lbs |
| Contact captivation | 10N / 2.3 lbs |
| Durability (matings) | 500 |
| ENVIRONMENTAL DATA | |
| Temperature range | -55C to +155C |
| MATERIAL DATA | |
| Bodies | Brass--Au plated |
| Pin contacts | Brass--Au plating |
| Socket contacts | Coppper beryllium alloy / Phosphor bronze--Au plating |
| Crimp ferrules | Brass--Au plating |
| Insulator | PTFE |
