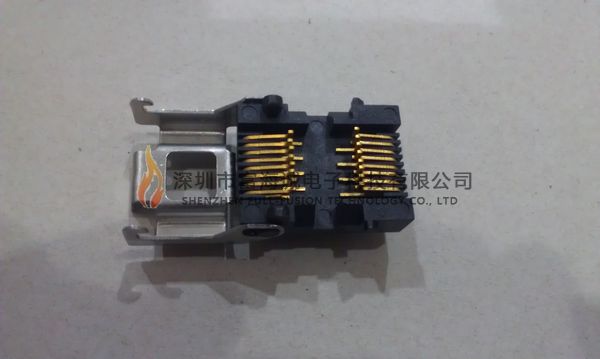

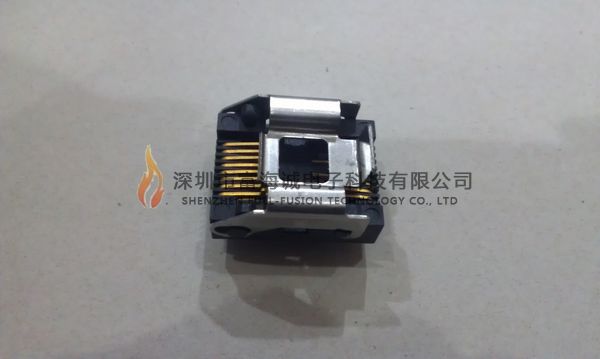

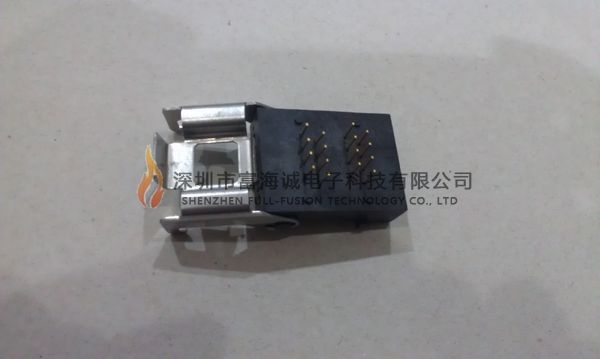

Antares 621-0160315 Flatpack Carrier 1.27mm Pitch Burn in Socket
| Supply Ability: | 100 Piece(s) per Month |
|---|---|
| Shipping: | DHL |
| Payment Terms: | T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Japan |
| Packaging Details: | 1PCS/BOX |
Quick Details
- Brand Name: antares
- Size: 1.27mm pitch
- Type: clamshell
- Material: pes
- Color: black
- Model Number: 621-0160315
- Pakage: Flatpack carrier
- Pitch: 1.27mm
Specifications
Features:SOP
Technical details:
Insulation resistance 1000m min.At 500V.D.C
Dielectric withstanding voltage 600V.A.C
Contact resistance 30m max. at 20mv max
Temperature range -40degree~+150degree
Operation method of useage:
Push the cover all the way down until it stops then insert the ic on the top package guide
Package:1PCS*box
CTI-CSOP-14-1.27mm-10.31WELLS-CTI 621-0142315(14PIN)
CTI-CSOP-16-1.27mm-10.31WELLS-CTI 621-0162315(16PIN)
CTI-CSOP-18-1.27mm-16.10WELLS-CTI 621-0182315(18PIN)
CTI-CSOP-24-1.27mm-16.10WELLS-CTI 621-0242315(24PIN)
CTI-CSOP-20-1.27mm-15.24WELLS-CTI 621-0202315-004(20PIN)
CTI-CSOP-22-1.27mm-15.24WELLS-CTI 621-0222315-004(22PIN)
CTI-CSOP-24-1.27mm-15.24WELLS-CTI 621-0242315-004(24PIN)
CTI-CSOP-28-1.27mm-16.76WELLS-CTI 621-0282315-007(28PIN)
