Qingdao Kechuang Plastic Machinery Co., Ltd.
China Manufacturer with main products: Plastic Machine, Extruder, Plastic Profile Making Machine, Crusher, Granulator, Plastic Mold, Plastic PE PP PPR PVC Pipe Making Machine,... |
Plastic HDPE Pipe Making Machine
| Supply Ability: | 300 Set(s) per Year |
|---|---|
| Shipping: | FOB QINGDAO SEAPORT |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | CHINA |
| Packaging Details: | FILM AND WOODED BOX FOR EXPORTING |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Power(W): 40-400kw
- Brand Name: techcreative
- Application: Pipe
- Condition: New
- Certification: CE ISO SGS
- Weight: 8-20T
- Dimension(L*W*H): 25M*2.5M*3.5M and required
- Voltage: 380V 50HZ380v 50hz 3phase (customized)
- Model Number: Single screw extruder
- Automatic Grade: Semi-automatic and full-automatic
- Screw Design: Single-screw
- motor: simens
- frequency inverter: ABB
Specifications
KECHUANG Plastic HDPE pipe production machine for HDPE pipe extrusion machine
PE pipe for water supply and drainage system application, this extrusion line can equip different conic single screw extruder for making different size pipe. It can have the following features:
1: Pipe diameter from 315mm upto 630mm
2: with different kind wall thickness for different application
3: Can make the pipe have different layers, such as: Middle use recycled material and inner and outer layer use new material
4: Can also have color line co-extrusion for choice
5: Can have some word to be printed on that.
6: Can have auto powder feeding machine for choice
7: Can have PLC touch screen control
8: this line have CE and ISO9001-2000 quality certificate.
Production process

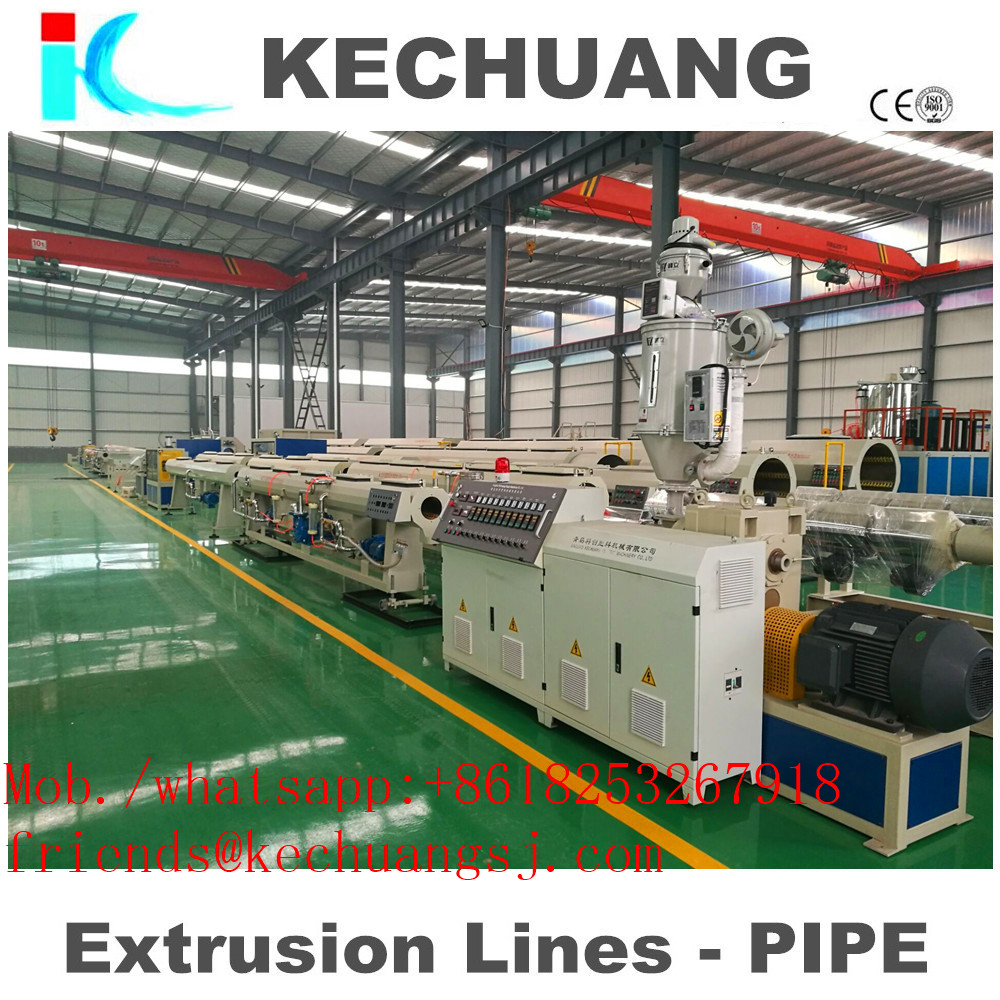

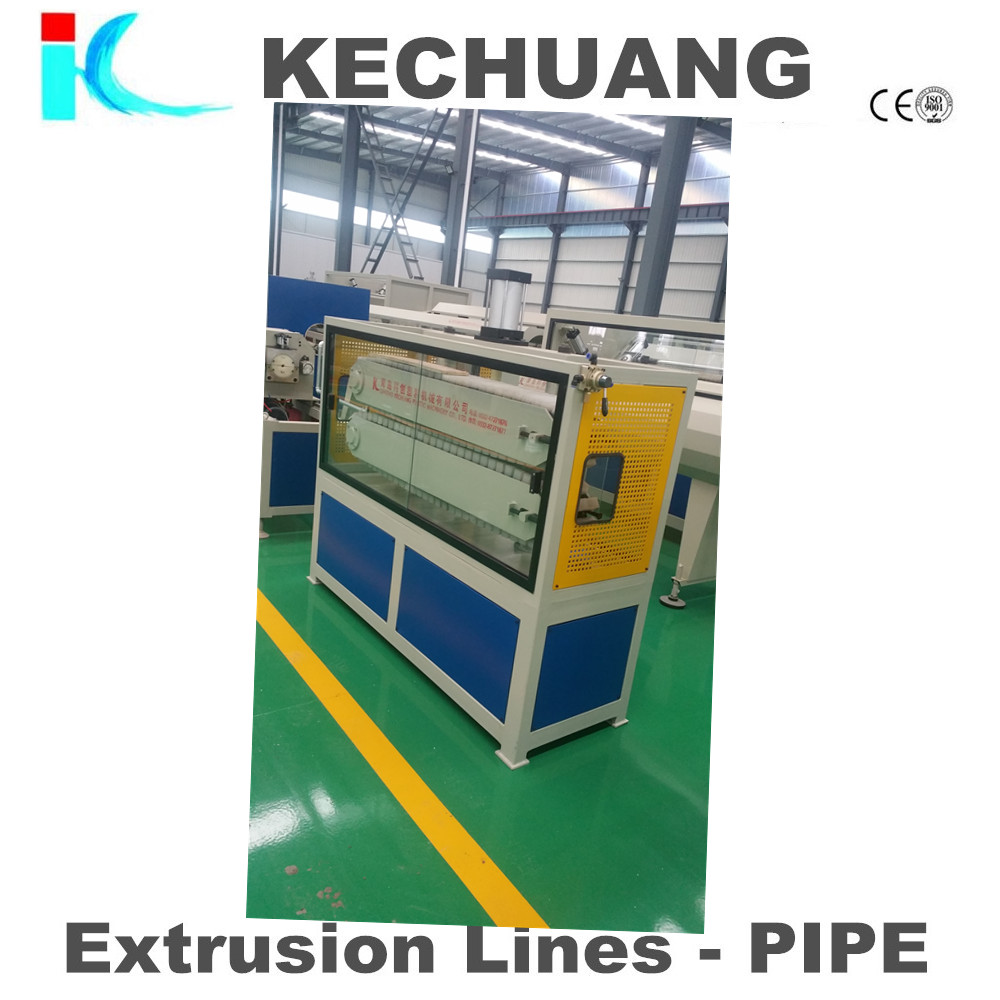

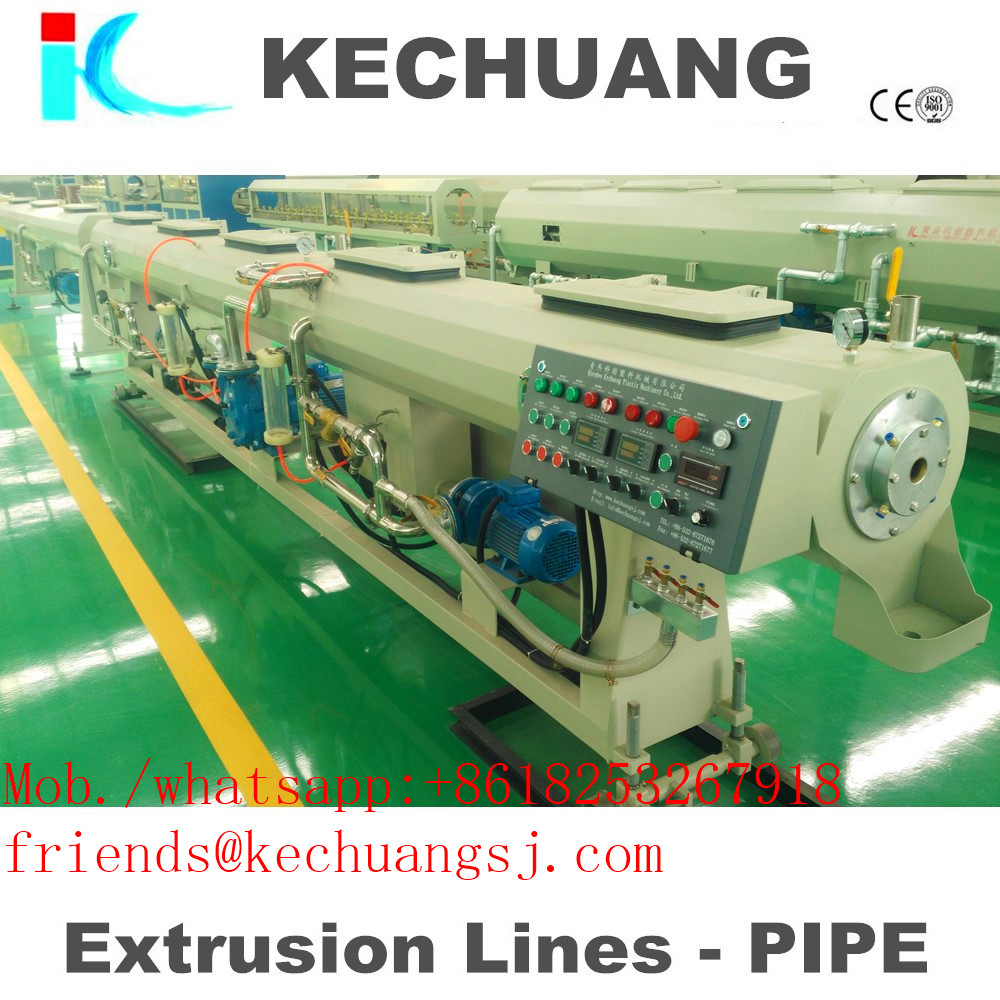

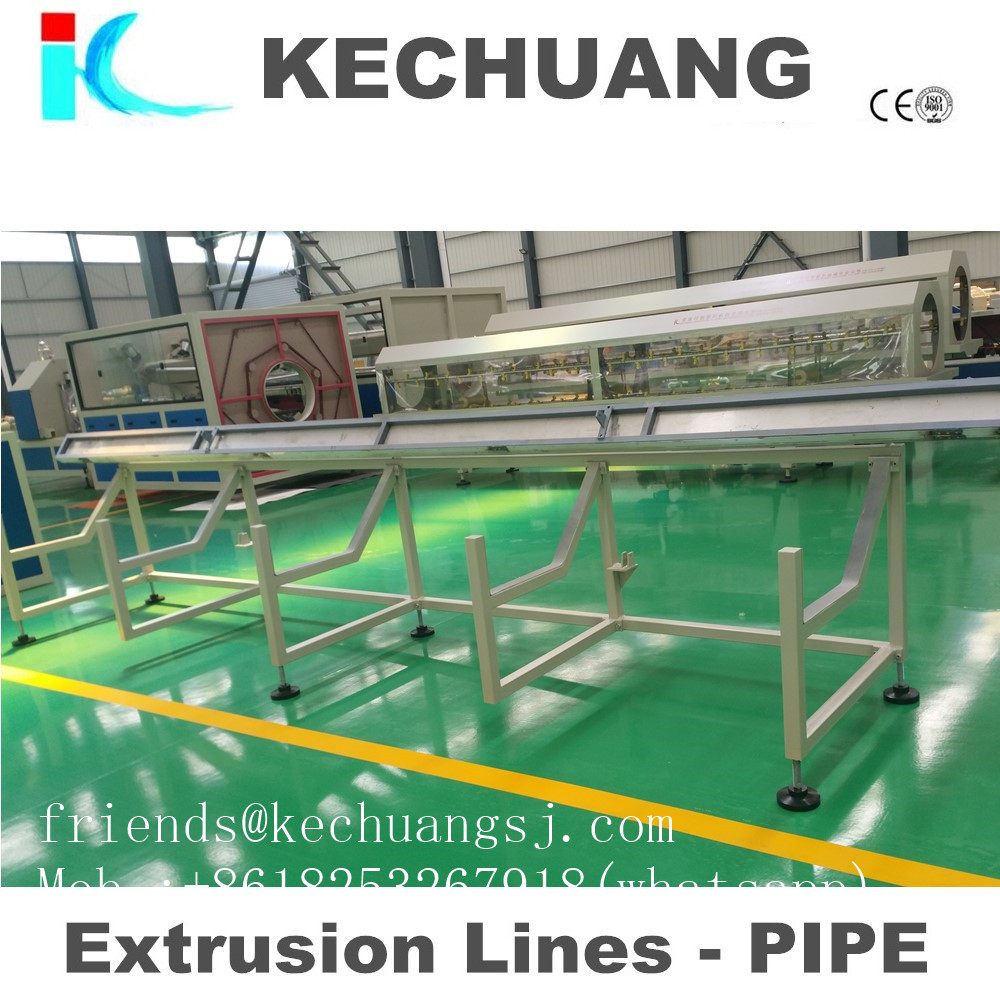

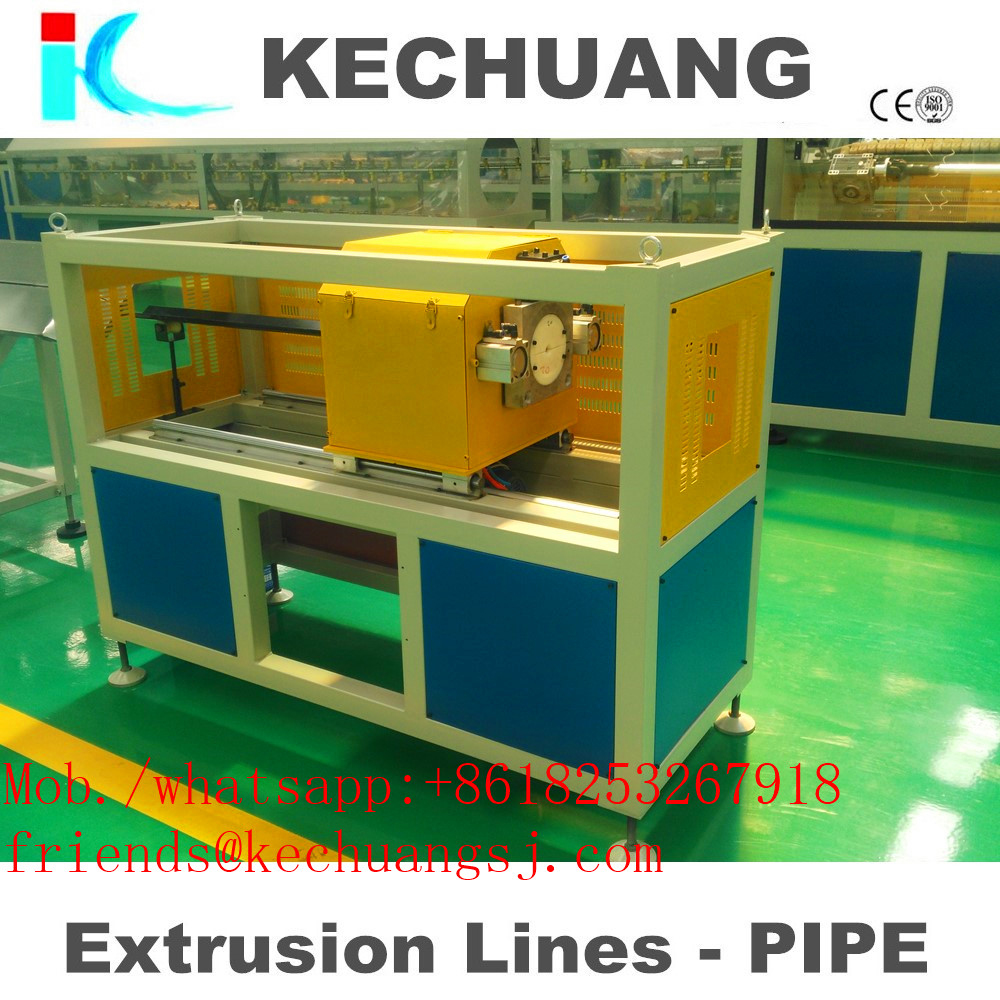

Plastic automatic loader Hopper plastic dryer Single screw extruder (Mark line extruder) Mould and calibrator Vacuum forming machine Water cooling tank Haul off machine Cutting machine stacker
Main parameter
| MODEL NO. | KCTE63 | KETC110 | KCTE250 | KCTE315 | KCTE450 | KCTE630 | KCTE1200 |
| PIPE RANGE(MM) | 16-63 | 20-110 | 75-250 | 110-315 | 110-450 | 315-630 | 630-1200 |
| EXTRUDER CAPACITY(KG/H) | 150 | 200 | 300 | 400 | 500 | 800 | 1300 |
| SCREW DIAMETER(MM) | 65 | 65 | 90 | 90 | 120 | 150 | 200 |
| SCREW L/D RATIO | 30:1 | 30:1 | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
| DRIVING MOTOR | 30KW | 37KW | 90KW | 110KW | 185KW | 255KW | 355KW |
| HEATING CAPACITY | 18.5KW | 20KW | 40KW | 49KW | 60KW | 60KW | 84KW |
| TEMPERATURE CONTROL(POINTS) | 4 | 5 | 5 | 7 | 7 | 8 | 7 |
| HAUL off UNIT | CATERPILLAR 2 TRACKS | 2TRACKS | 4TRACKS | 4TRACIS | 6TRACKS | 6TRACKS | 8 TRACKS |
| INSTALL POWER(KW) | 70 | 85 | 180 | 200 | 280 | 360 | 550 |
| MACHINE SIZE(M) | 28X2.6X3 | 28X3X3.2 | 3.6X35X3.2 | 40X3.5X3.2 | 42X3.5X3.2 | 45X3.5X3.5 | 60X4X3.5 |
| WEIGHT(T) | 7 | 7 | 9 | 11 | 13 | 15 | 22 |
Advantage
World famous brand major parts
| Motor | with SIEMENS |
| Inverters | with ABB |
| Contactors | with Schneider |
| Temperature controls | with Sheider/RKC |
| PLC control | with SIEMENS |
\
- Packaging: poly-wooden cases for KECHUANG Plastic pipe extruding machine for HDPE pipe producing/extruder for PE HDPE pipes , no need fumigate; bubble films packaging
- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- Shipping: by Sea or Train
- pre-sales services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.
- we will offer customers spare parts at cost prices all life long of the machines.
Question and answer
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in qingdao jiaozhou city.
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q:What is the ability of your factory?
A:about 90 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q:how do you make the quotation for clients?
A:the price depends on quality and performance but the clients should be satisfied first.
