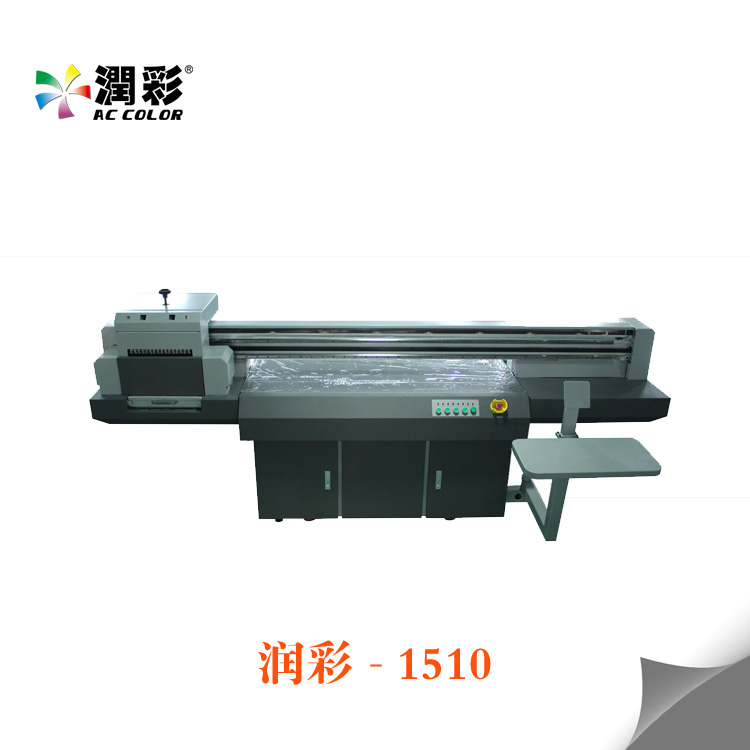

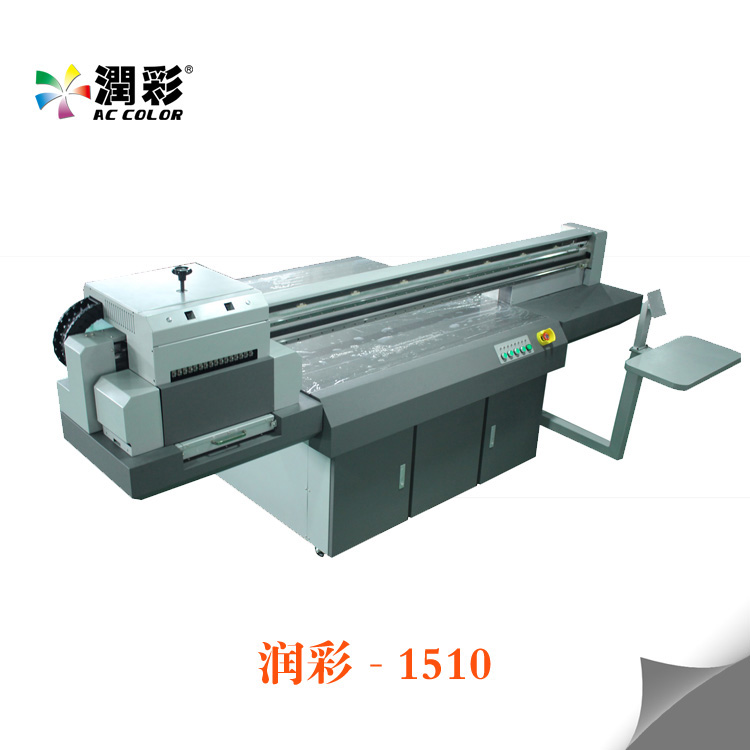

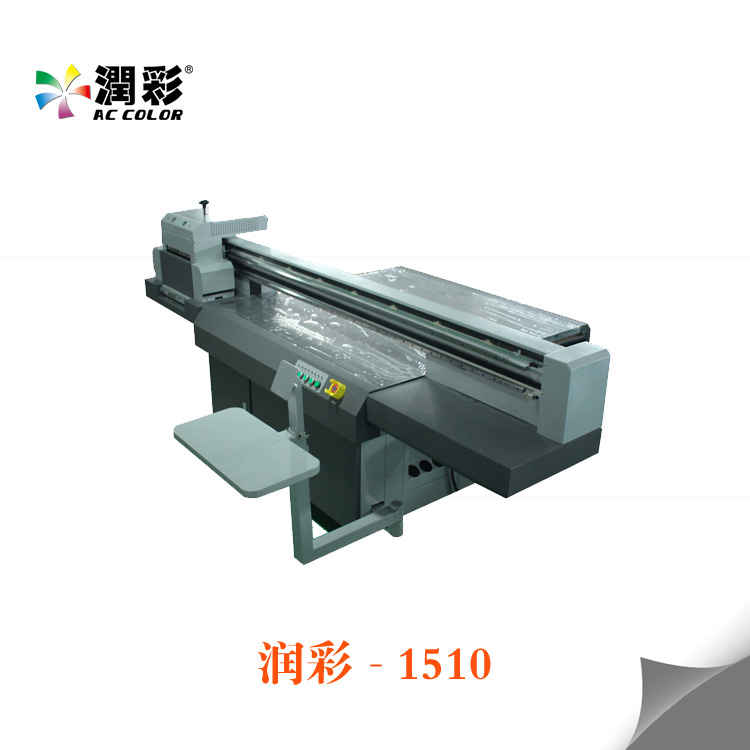

High Resolution Printer UV Digital Industry Printing Machine
| Supply Ability: | 30 Set(s) per Day |
|---|---|
| Shipping: | FOB or Other |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, Safebuy, Other |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | UV flatbed printing machine all packing with wooden case |
Quick Details
- Type: Digital Printer
- Color & Page: CMYKW
- Automatic Grade: Automatic
- Usage: Label Printer,Paper Printer,Digital Printing Machinery
- Brand Name: RC
- Condition: New
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE Certification
- Weight: 1600KG
- Dimensions(L*W*H): 200*1500*1000mm
- Gross Power: 1500W
- Voltage: 220V
- Model Number: AC-1510
- Plate Type: Flatbed Printer
- Printing Size: 1500mm*1000mm
Specifications
Description | |
Printing Size |
1500mm*1000mm |
Print Head |
6pcs TOSHIBA CE4 print heads, 636holes*2listl; smallest Ink drop 5pl |
Printing Colors |
C,M,Y,K+W+W |
Printing Height |
100mm |
Printing Weight |
Non-destrutive Precision Weight100KG |
Print Speed |
Production Mode:720dpi 20sq/hr |
High Quality Mode:1440dpi 12sq/hr | |
Ink System |
UV Curable Ink(C,M,Y,K,W+W) |
Automatic Cleaning System |
Automatic Cleaning Function(Intelligent positive Pressure and Negative pressure can change to use) |
Print Head(s) Technology |
Piezo Inkjet Printing Ink |
Ink Cartridge |
Continuous Ink offering/Capacity: 1000ml |
Power Supply |
220V/3500W,50HZ/60HZ |
Applied Materials |
Ceramic, Acrylic, Wood, Craft, Painting, Glass, Metal,Crystal,Leather,PVC,ABS Etc. |
Curing System |
LED Light Curing |
Color Management |
Admitted to International ICC Standard, with Curve Line Function. |
Electricity Requiremennt |
220V |
USB USB Connector |
USB 2.0 Connector |
Operating Environment |
Temperature:20-50,Humidity:40-60%,Dust-free room |
Guide Rail |
Square Linear Guide Rail |
RIP Software Output |
Ultraprint |
N/W. |
1000KG |
Equipment Size: |
3100*1580*1400(mm) |
1.Mainly applied in the Advertisement business.
2.Printing various colors including C,M,Y,K+W or CMYK*2.
3.Electric motor is from Taiwan'S Taida servo motor,high speed and stable.
4.Gude Linear is Taiwan'S Silver Linear guide.
5.Mechanical drive is imported ball screw drive to ensure moving and accuracy.
6.the nozzle (print heads) is from Japan'S original print head.
6.Omron light and electric switch sensor.
7.Platform is the Stainless steel vacuum adsorption platform.
8.LED curing light system,lifetime:65,000 hours.
9.Mute towline imported from Germany,long life for using.
10.the indicated lights are from Siemens and Schneider.
11.the bearing is imported from SKF to ensure the precision of the machine.
Our company
Our services
1.Warranty period:18 months door-to-door service,lifetime maintenance.
2.Special bottom processing(optional):glass coating,hardware coating,ceramic coating.
3.Manufacturing techniques:professional engineers design a set of perfect technological process to produce ideal equipment.
4.Establishment of workshop and sites:experts plan and design,offering comprehensive guidance.
5.Training:Senior engineers train customers until mastering the opertion.
