Winghang(HK)Technology.,Ltd
China Manufacturer with main products: LED Gas Price Sign, LED Time and Temp Sign, LED Exchange Rate Sign, LED Scoreboard Sign, LED Parking Sign, LED Count up/Down Sign, LED 7... |

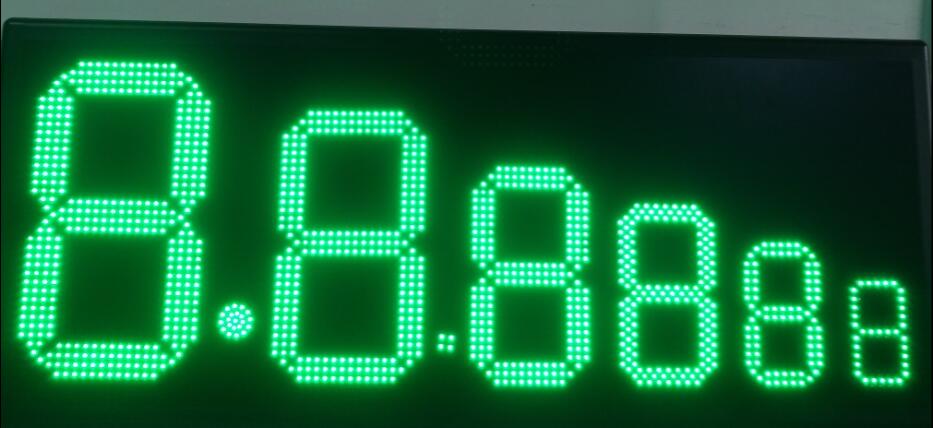

Colorful LED 7 Segment Display Outdoor
| Supply Ability: | 50,000 Piece(s) per Month |
|---|---|
| Shipping: | By Air or Sea,DHL,Fedex,UPS |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | By Carton box or plywood case |
Quick Details
- Item Type: High Mast Lights
- Light Source: LED
- Certification: CE,RoHS
- IP Rating: IP65
- Lamp Body Material: Iron
- Item Type: WH-LFSM18
- Light Source: SMD Lamp
- Model Number: WH-LFSM18
- Working Lifetime(Hour): 100000
Specifications
Product Detail;
Model No: WH-LFSM18 Size: 43mm x 179mm 18inch
LED Chip: Epistar (Made in TaiWan)
KingLight LED SMD full clolor <Red,Green,Yellow,Blue,Cyan,White,Pink >
LED Quality: 54pcs Segment weight: 126g
Operating Voltage: 12V DC Operating Current: 115mA
Brightness: 4000mcd ( Red/Blue) Brightness: 8000mcd (White Color )
Brightness: 5000mcd ( Green Color )
Brightness: 6000mcd (Yellow/Pink/Cyan Color)
9) Horizontal Visual Angle: 90c Vertical Visual angle: 110c
Product Description;
Usage: the display segment is sealed with injection molding, using the Sealed silicone treatment, It can reach IP65 outdoor Waterproof grade.
Each digit " 8" is made of LED 7 segments <LED PCB Board <diamond > + LED Lamps+
A.B Silicone glue + LED Waterproof Plastic cover <Diamond > + Cable Connector
3) Using high light and wide sight LED lamp to display, which keep clear display effectively
Even through under direct sunlight.
All materials are passed high and low temp test, the products can operate steadily between -30c-75c
Once LED lamps of segment is dead, the display segment can be replaced independently and easy maintain.
We have complete sizes to satisfy most application requested and we can do other measurement made to order.

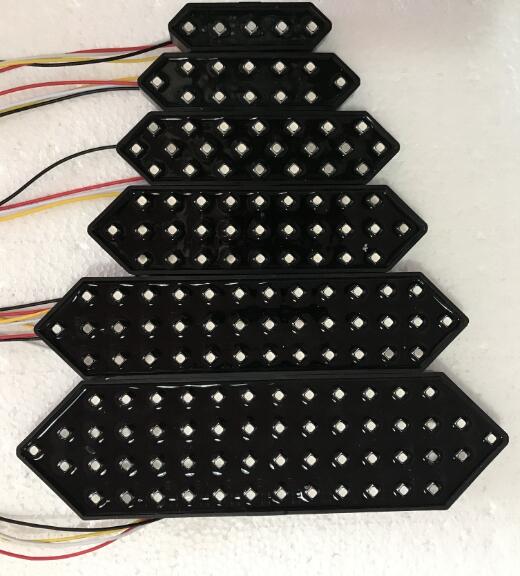

Current Standard size: 6inch /8inch/10inch/12inch/15inch/18inch etc.
Customized sizes will be welcomed all the time.

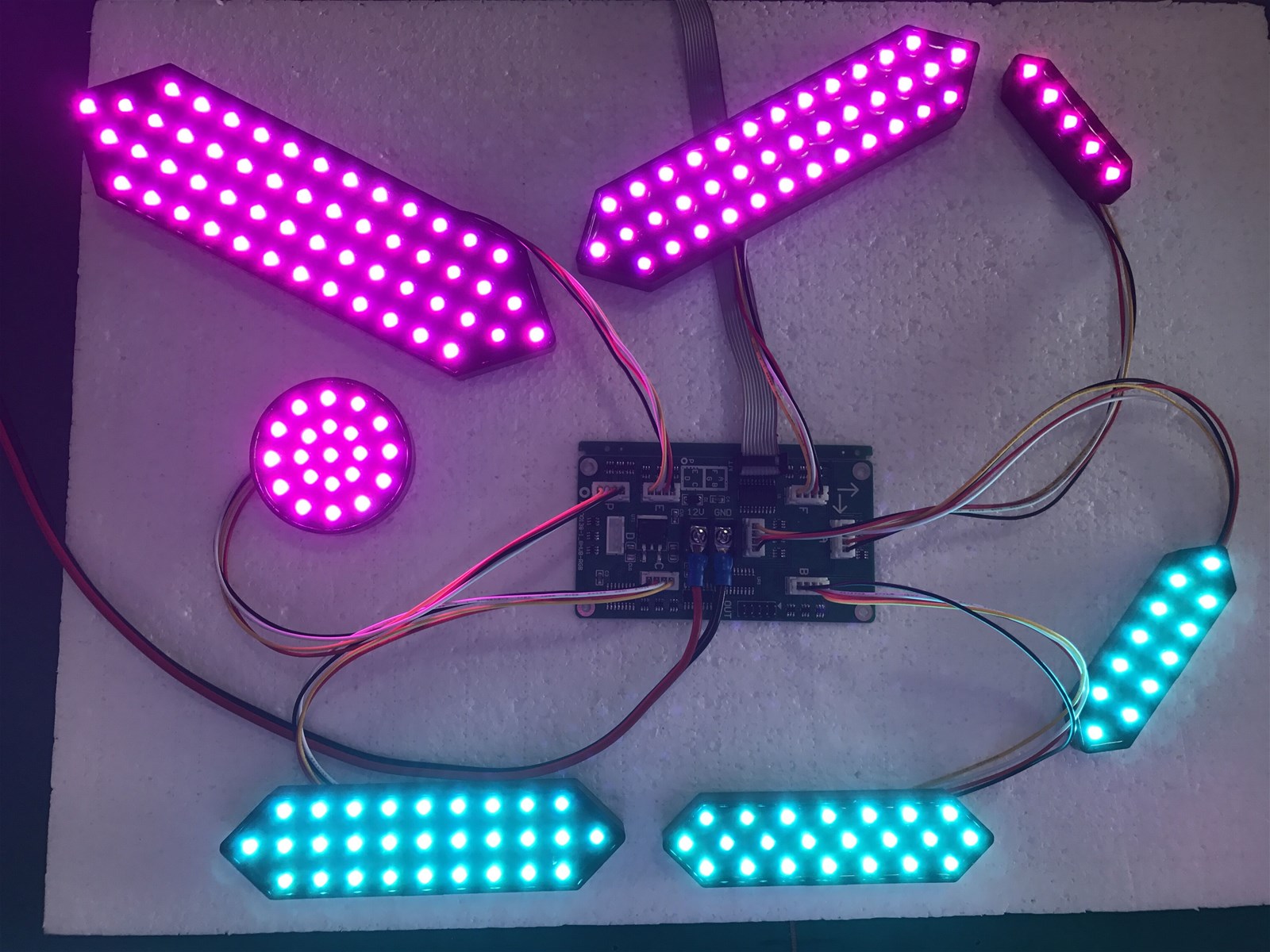

Selling Point:Each LED segment of LED SMD lamp's color can be changed Red,Green,

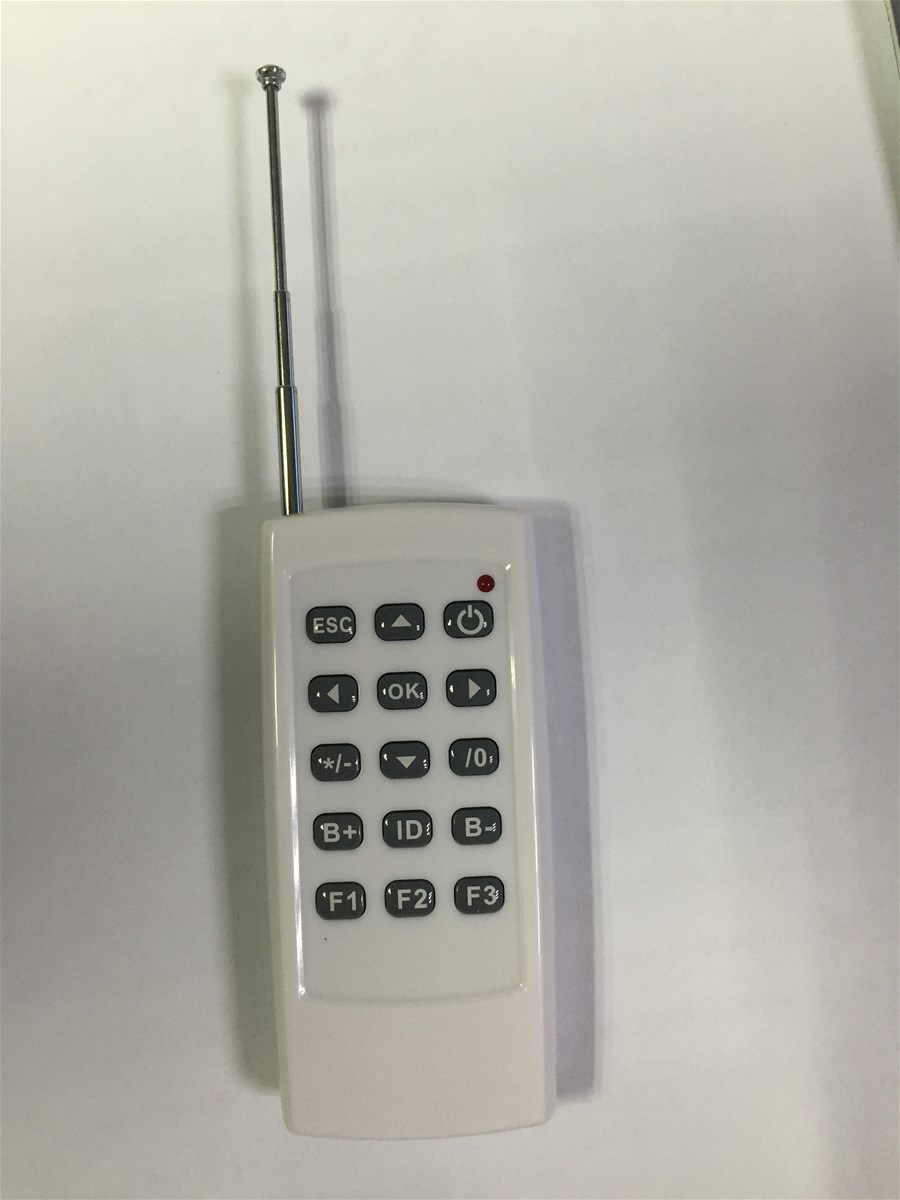

Yellow,Blue,Cyan,White,Pink by Remote Control,but also it can be changed Auto in 5 sec.
