Suzhou Norda Cleaning Tech Co., Ltd.
China Manufacturer with main products: Fog Generator, Heap Leak Detection Products, Glove Leak Detection, Particle Counter, Temperature Humidity, Planktonic Bacteria Sampler, Air... |
1CFM Touch Screen Particle Counter
| Supply Ability: | 1,000 Piece(s) per Month |
|---|---|
| Shipping: | DHL or others |
| Payment Terms: | D/P, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Quick Details
- Brand Name: NORDA
- Name: laser Particle Counter
- Certificate: NORDA
- Weight: 2.5KG
- Usage: test the environment for clean rooms
- Model Number: ND-E3012/13/16 SERIES
- flow rate: 0.1CFM,1CFM and others
- Model: ND SERIES
Specifications
:

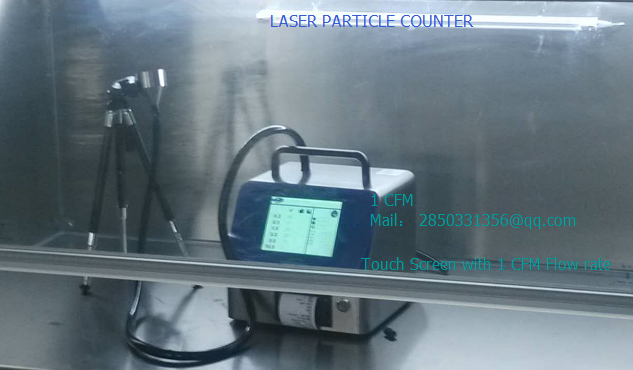

Laser particle counter with touch screen,MODEL ND-E3016, is Designed on the base of light scattering principle of particles, in compliance with standards of ISO14644 and EUGMP,CGMP, with features of multifunction, standardized data and high accuracy.
Feature:
Language: English and Chinese
Different channels: (standard); two channel,three channels (optional)
LCD Touch Screen,More easy and convenient to operate
Flow rate: (0.1CFM)
| Model | s | ||
| Overall dim.(mm) | 210 x180 x 120(Wide*Deep*High) | ||
| Display | |||
| Flow rate | |||
| Weight | 2.8kg | 2.8kg | 2.8kg |
| Power supply | AC or DC(optional) | AC/DC | AC/DC |
| Size channels | Two channel:0.5,5.0, m or selecting from 0.3,0.5,1,3,5,10um |
Three channels:0.3,0.5,5.0, m or selecting from 0.3,0.5,1,3,5,10um |
|
| Calculation | Calculation of particle concentration can be displayed directly Meet: ISO14644-1 EGMP,CGMP and so on | ||
| Sample time | 1~99min | 1~99min | 1~99min |
| Zero count | 10% | 10% | 10% |
| Date output | RS232/USB | RS232/USB | RS232/USB |
| Built-in Thermal Printer or others | |||
| Alarm | 100, 1000, 10000 Class alarm | ||
| Date storage | 2000 groups | 2000 groups | 3000/6000 groups |
| Max. Particle concentration | 35000 particles/L | 35000 particles/L | 35000 particles/L |
| Light source | Laser | Laser | Laser |
| Working condition | Temperature:10~35; Humidity:20%~75%RH; Atmosphere Pressure: 86~106Kpa | ||
| Optional | Trolley for clean room | ||
