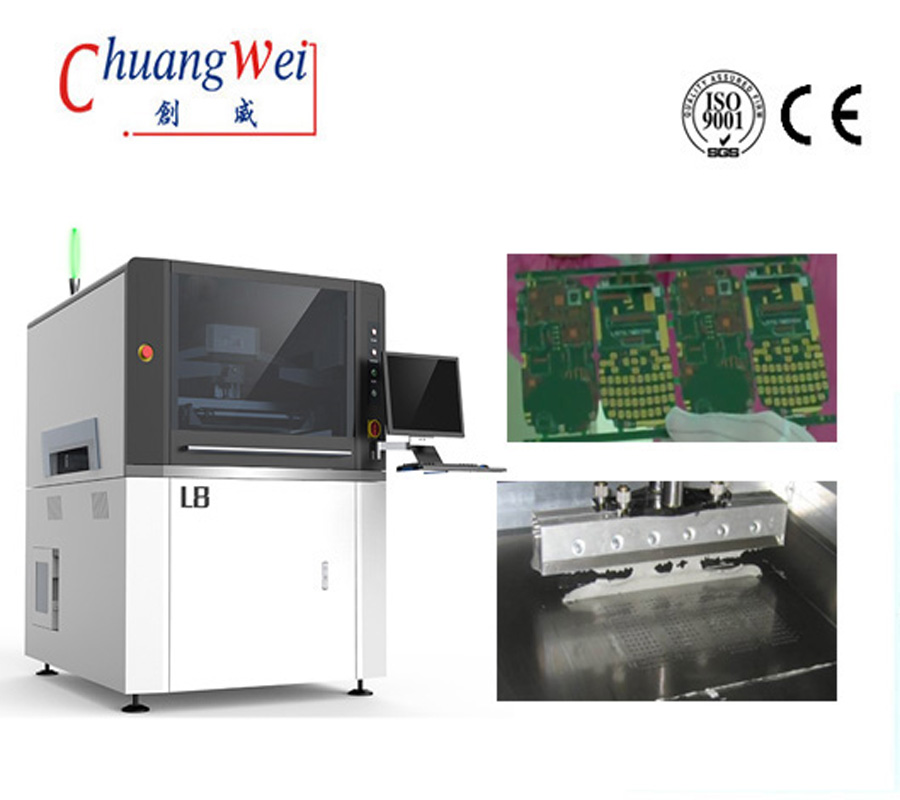

1.Solder Paste Screen Printing Machinery,CW-L8 Specifications:

2.Stencil Printers,SMT Stencil Printers for Aluminum LED / PCB,CW-L8

3.Automatic Printed Circuit Board Screen Printer,CW-L8

1.Scraper system

*Arch bridge hanging straight with scraper

*Programmable suspension self-adjusting stepper motor drive print head.

*Bilateral double-slider four-wheel-type structure to ensure that the scratch before and after the operation of the accuracy and smoothness.

*Designed for the different requirements of the front and rear scraper pressure and the stability of the lift, to prevent the solder paste leakage and the blade has a certain flexibility of the clamping design, scraper pressure, lifting speed, printing speed,printing range are software adjustable to provide customers with a variety of stripping methods to meet the different requirements of the PCB board, to provide customers with a good printing control platform.

*slide-type scraper system to improve operational stability and extend the services life;Fully closed ring scraper pressure feedback device, always monitor the size of the squeegee pressure,making the tin more full.

2. Steel mesh positioning system
the size of steel mesh has good and wide applicability;

the imported SMC cylinder is used as the cylinder

Embedded scale, never fall off;

Segmented fixed steel frame.

3. Image and optical path system

X, the Y-axis USES the Japanese black field high ground wire rod, the two ends Japan matsushita motor drive;

Internal increase polaroid, automatic accurate grasping different type of the MARK point;

Upper, lower and coaxial 3 uniform light source;

Japan's Toshiba industrial camera.

4. PCB transportation and positioning system

the inlet direction arbitrary selection, free combination;

Special process of inner tooth transport belt, prevent card board;

Programmable transport speed control can make the suspension more accurate;

Use the sexual side clamp and vacuum suction chamber, effectively clamping the PCB to ensure the; complete smooth contact between PCB and steel mesh.

5. Cleaning system

Spray type cleaning;

Dry, wet, vacuum-free combination;

Separate cleaning structures;

Circular cleaning rubber strip;

Cleaning fluid, and steel net cleaning paper amount controlled.

6. Platform calibration system

UVW platform structure, high precision, large rigidity and compact structure

Triaxial linkage, small volume, high precision

7. Base and rack system

Solid forming;

Panasonic motor plus Japan original plant high precision ground wire rod;

High rigidity, high stability of left and right symmetrical frame structure.

8. Electrical road system

Safe and concise circuit gas circuit layout;

the circuit gas road erect the two sides and the rear of the machine, the maintenance is convenient.

9. Operating system

Easy to learn easy to use friendly operation interface, with good man-machine dialogue function;

the program file has teaching and navigation functions, and every step has a hint;

Switch between Chinese and English;

It has operation log, fault recording analysis and diagnosis.

10. Other functional options

Automatic point glue function;

Automatic scanning function;

Automatic add tin function;

the whole line closed loop control;

Constant temperature and humidity function;

Steel mesh plugging function;

Other functions can be customized according to customer's actual demand.
